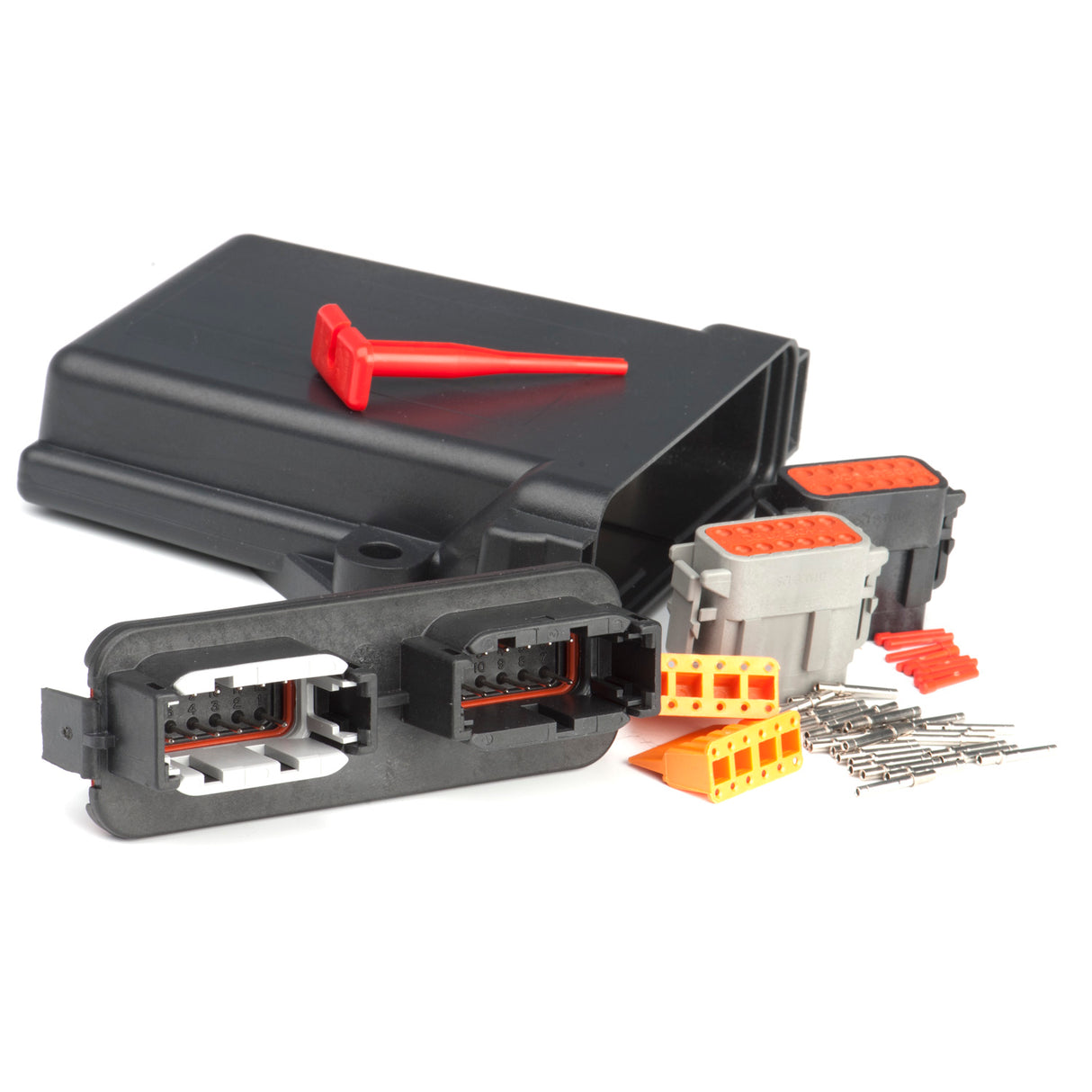

PCB-DTM-1E-24-K - DTM 24 Contact PCB Enclosure Kit-Single End-Black
This PCB enclosure kit gives you a complete, ready-to-assemble solution for bringing a 24-circuit DTM Series harness into an enclosure for board-mount termination. The kit is built around a pair of 12-way DTM06-12S plugs (one A-Key, one B-Key) on the cable side, which mate to a DTM13-12PA-12PB-R008 receptacle featuring matching A and B keying for correct orientation on the PCB. Both connector halves are housed in an EEC-325X4B PCB enclosure (vent-free), giving the finished assembly a clean, protected, single-entry housing.
Twenty-six nickel-plated size 20 solid sockets are included to terminate the 16-20AWG wire leads of your harness, along with eight size 20 sealing plugs to seal off any cavities left unused. A size 20 contact removal tool is included for rework or repairs, and two orange WM-12S plug locks secure each 12-way plug to keep contacts seated under vibration. Together, this kit covers everything needed to build a sealed, board-mount DTM connection without sourcing each component separately.
Please Note: If a specified product is out of stock it will be substituted with a compatible product.
-
Brand
-
Part Number
-
Series
-
Kit Includes
