HDP20 Series

Deutsch HDP20 Series Connectors

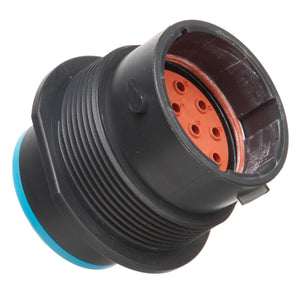

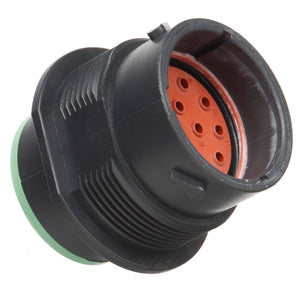

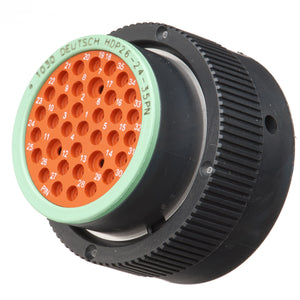

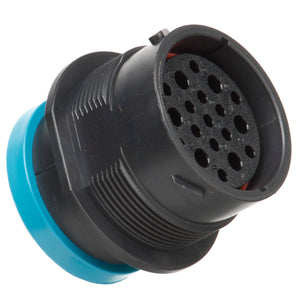

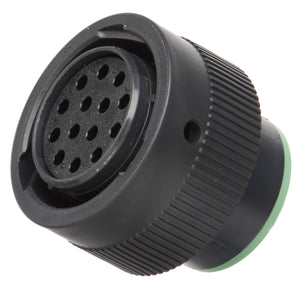

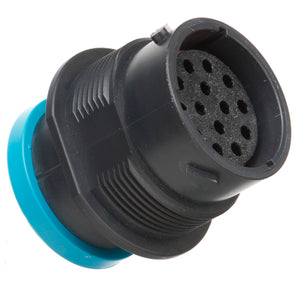

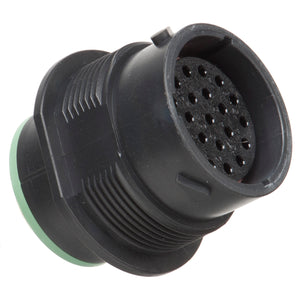

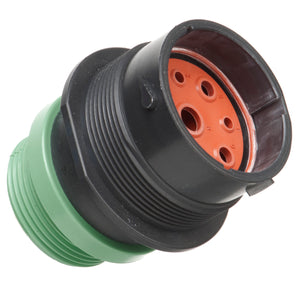

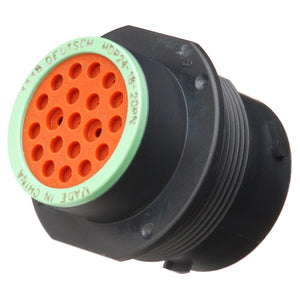

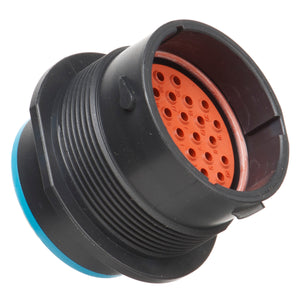

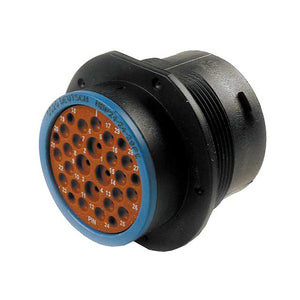

The Deutsch HDP20 Connector series was designed with the heavy duty on and off highway industry in mind. Whether you are working on a semi, city bus, sanitation truck, or caterpillar loader this is your connector series. The HDP20 series has a thermoplastic shell that provides a quick connect/disconnect coupling. The Deutsch contacts are inserted and removed from the rear of the connector.

   Contact Size - 4 (100 amps), 8 (60 amps), 12 (25 amps), 16 (13 amps), and 20 (7.5 amps)

    AWG / Cavities - 4-22 / 2, 6, 7, 8, 9, 14, 16, 18, 19, 20, 21, 23, 29, 31, 33, 35, and 47 cavities

    Mount Type - In-line or flange

Housing - Circular, thermoplastic housing

  Coupling Ring - For mating
