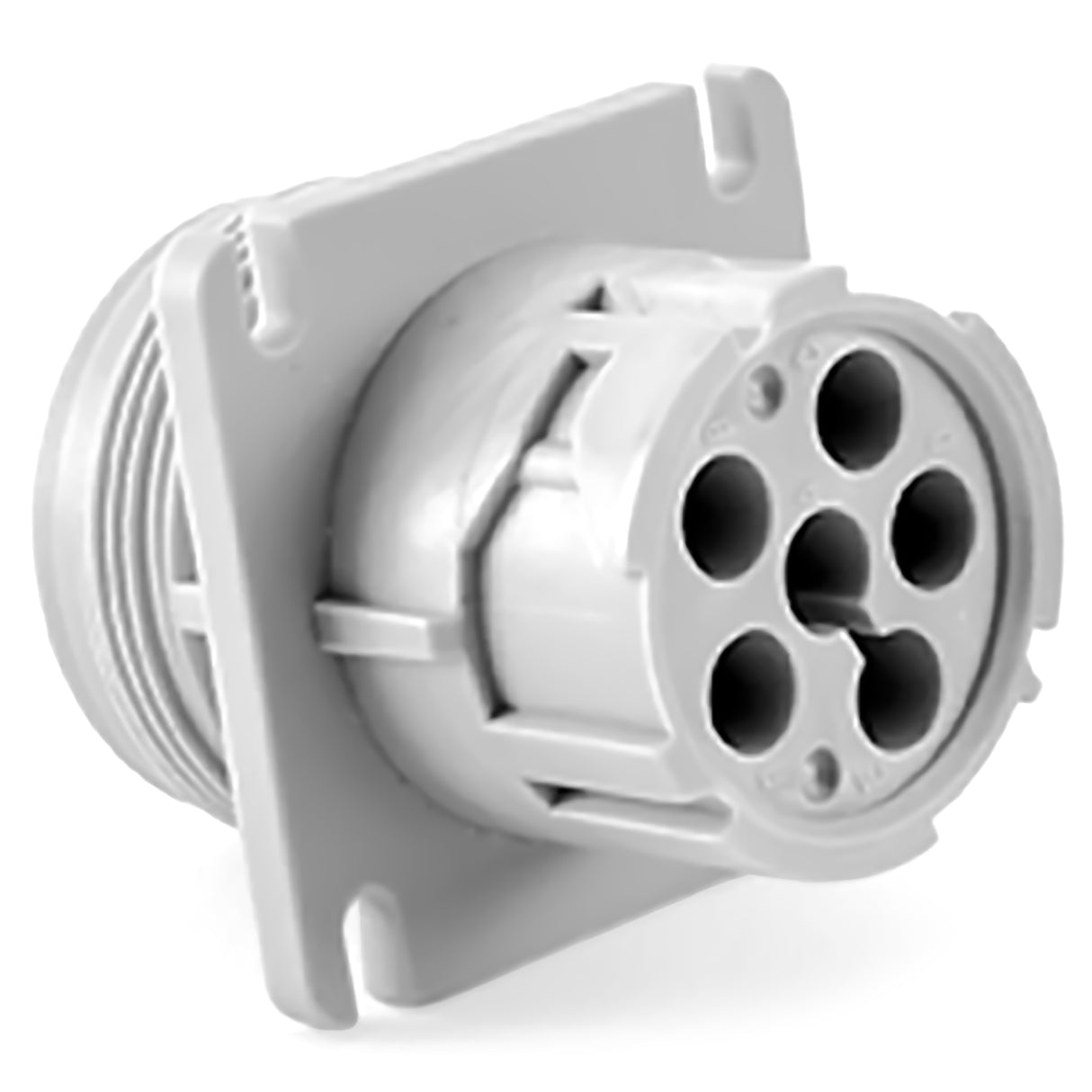

AHD10-6-12P-L - AHD Series - 6 Pin Receptacle - Flange, Gray

Sku: AHD10-6-12P-L
Vendor: Amphenol
$6.41
Maximum quantity available reached.

AHD10-6-12P-L : Amphenol - AHD Series, 6 Way Receptacle w/ Flange, Gray

Amphenol AHD-Series Connectors were designed in response to the overwhelming need for an economic alternative to today’s existing diagnostic product options. These connectors are ideal for use in situations where controlled or uncontrolled environmental conditions exist.


Amphenol AHD Series connectors are compatible with other existing standard products industry-wide.


Product Specifications

 Part Number AHD10-6-12P-L
Product Type Receptacle with Panel Nut Mount
Contact Size 12
AWG  10-14 AWG
AMP 25
Contact Type Pin
Color Gray
Mating Part(s) AHD16-6 Plug
Seal Diameter 3.40mm(.134")-4.30mm(.170")
