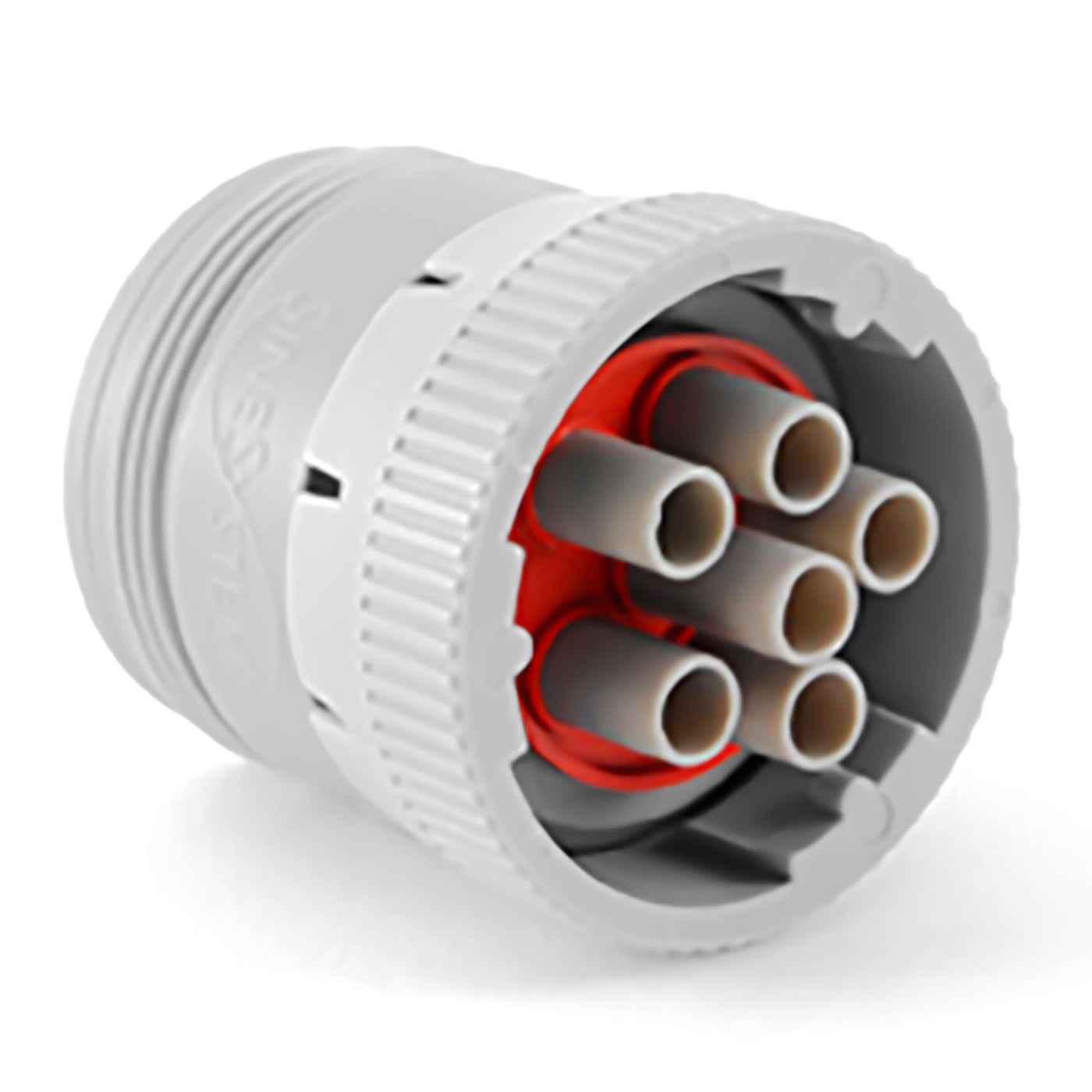

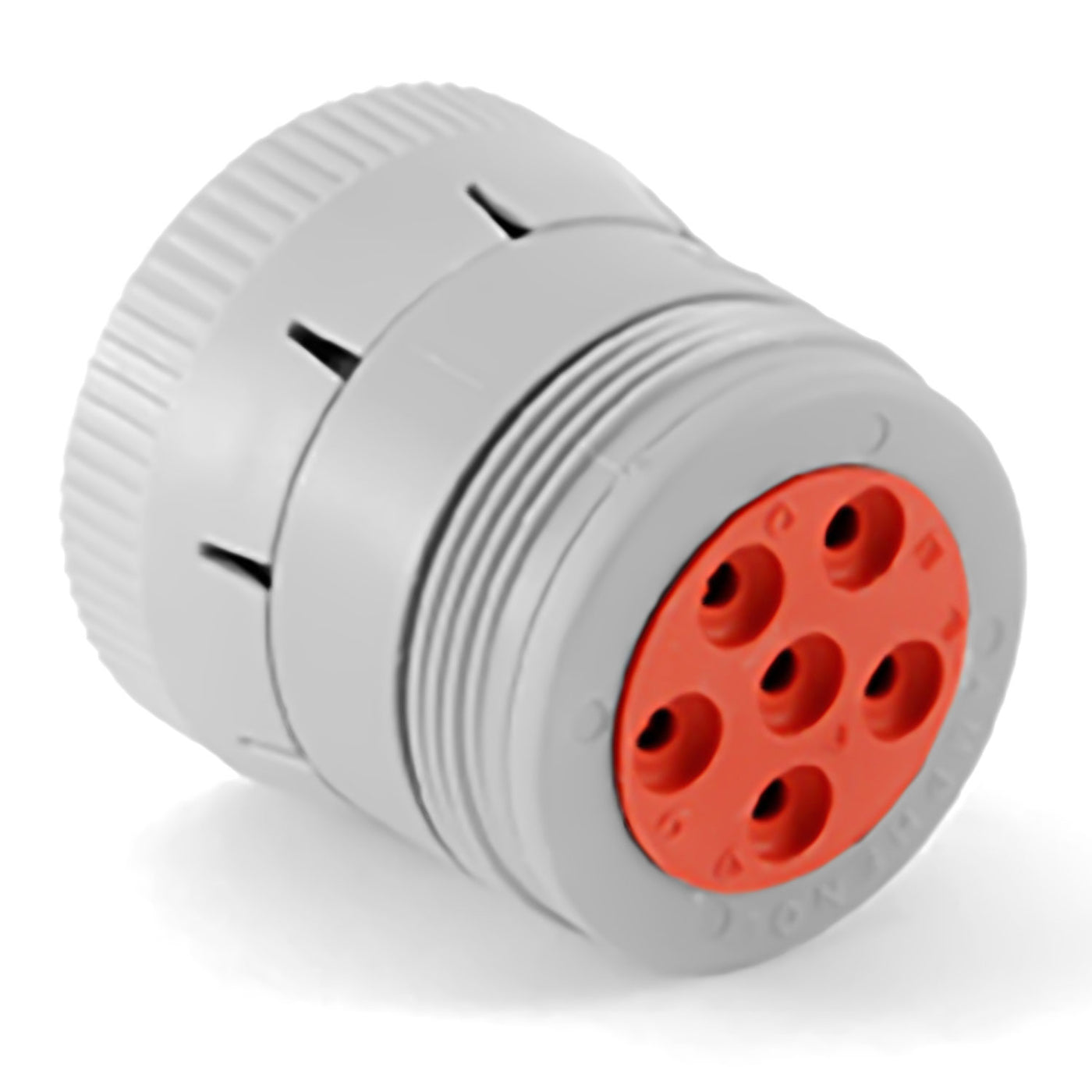

AHD16-6-12SB010 - AHD Series - 6 Socket Plug - Locking Ring, Gray

Sku: AHD16-6-12SB010
Vendor: Amphenol
$6.80
Maximum quantity available reached.

AHD16-6-12SB010 : Amphenol - AHD Series, 6 Way Plug w/ Locking Ring, Gray

Amphenol AHD-Series Connectors were designed in response to the overwhelming need for an economic alternative to today’s existing diagnostic product options. These connectors are ideal for use in situations where controlled or uncontrolled environmental conditions exist.


Amphenol AHD Series connectors are compatible with other existing standard products industry-wide.


Product Specifications

Part Number AHD16-6-12SB010
Product Type
Plug with Threaded Rear with Coupling Ring
Number of Positions 6-way
Contact Size 12
AWG 10-14
AMP 25
Contact Type Socket
Color Gray
Mating Parts(s) AHD10-6-12P-L
Seal Diameter 3.40mm(.134") - 4.30mm(.170")
Wire Range 10-14 AWG
Material Thermoplastic
Seal Material Silicone Elastomer
