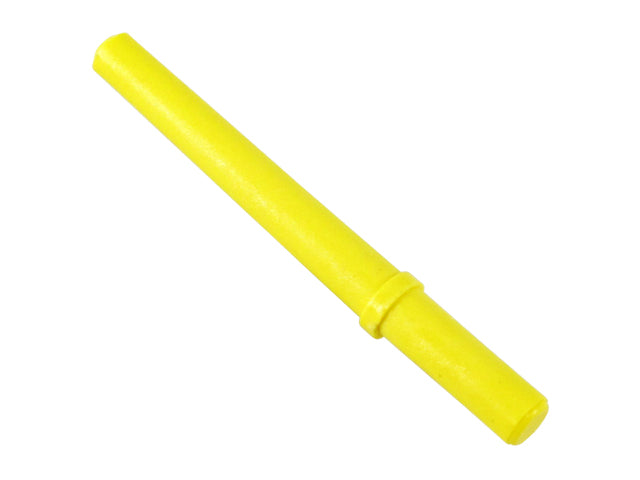

0413-214-1205 - Keying Pin - Size 12

Sku: 0413-214-1205
Vendor: Deutsch
$1.13
Maximum quantity available reached.
Deutsch Logo

KEYING PINS

Keying pins are solid plastic rods used to prevent mis-mating of like connectors in close proximity. Applicable Deutsch product lines include HD10, HD30, HDP20, DT, and DTM Series. Keying pins are inserted into the retention fingers of an empty socket cavity. Once installed, the keying pin blocks a mating contact pin from being inserted. The contact pin will be blocked before the coupling device mates the connectors, preventing the mis-mating of like connectors. Proper usage requires that the corresponding mating pin be omitted and a sealing plug is inserted in the rear cavity of the mating connector. Individual applications will vary, and testing should be done to determine the best pattern arrangement to prevent improper connector mating.



Part Number 0413-214-1205
Series HD30 Series, HDP20 Series, HD10 Series, WT Series, DTP Series, DTHD Series, DRB Series, STRIKE Series
Keyed No
Color  Yellow
Material  Plastic
Contact size  12
Accessory y
Accessory Type Keying Pin
