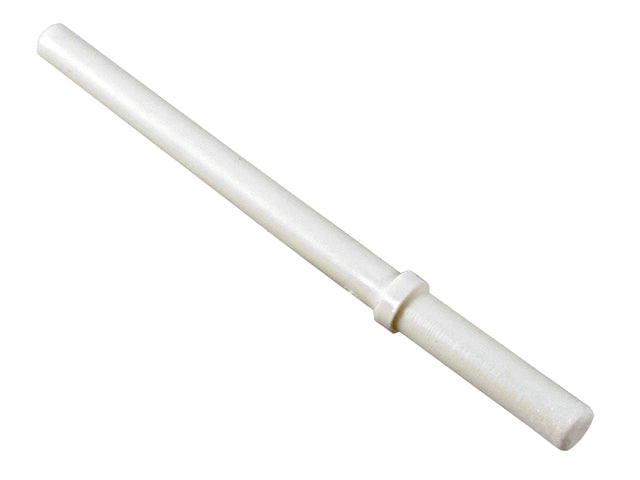

{"id":4334128496722,"title":"0413-215-1605 - Keying Pin - Size 16","handle":"0413-215-1605","description":"\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-lg-5\"\u003e\u003cimg src=\"https:\/\/cdn.wirecare.com\/assets\/images\/pages\/deutsch-connectors\/deutsch-logo.jpg\" alt=\"Deutsch Logo\" class=\"img-fluid d-block mx-auto center-block\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-lg-7\"\u003e\n\u003ch4\u003eKEYING PINS\u003c\/h4\u003e\n\u003cp\u003eKeying pins are solid plastic rods used to prevent mis-mating of like connectors in close proximity. Applicable Deutsch product lines include HD10, HD30, HDP20, DT, and DTM Series. Keying pins are inserted into the retention fingers of an empty socket cavity. Once installed, the keying pin blocks a mating contact pin from being inserted. The contact pin will be blocked before the coupling device mates the connectors, preventing the mis-mating of like connectors. Proper usage requires that the corresponding mating pin be omitted and a sealing plug is inserted in the rear cavity of the mating connector. Individual applications will vary, and testing should be done to determine the best pattern arrangement to prevent improper connector mating.\u003c\/p\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable height=\"252\" style=\"width: 520px;\" data-mce-style=\"width: 517px;\" data-mce-selected=\"1\"\u003e\n\u003ctbody\u003e\n\u003ctr data-mce-style=\"height: 21px;\"\u003e\n\u003ctd style=\"width: 112.274px;\" data-mce-style=\"width: 233.333px; height: 21px;\" data-mce-selected=\"1\"\u003ePart Number\u003c\/td\u003e\n\u003ctd style=\"width: 393.767px;\" data-mce-style=\"width: 269.705px; height: 21px;\" data-mce-selected=\"1\"\u003e\u003cspan\u003e0413-215-1605\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-style=\"height: 21px;\"\u003e\n\u003ctd style=\"width: 112.274px;\" data-mce-style=\"width: 233.333px; height: 21px;\" data-mce-selected=\"1\"\u003eSeries\u003c\/td\u003e\n\u003ctd style=\"width: 393.767px;\" data-mce-style=\"width: 269.705px; height: 21px;\" data-mce-selected=\"1\"\u003eHD30 Series, HDP20 Series, DRC Series, WT Series, DTM Series, DRB Series, STRIKE Series\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-style=\"height: 21px;\"\u003e\n\u003ctd style=\"width: 112.274px;\" data-mce-style=\"width: 233.333px; height: 21px;\" data-mce-selected=\"1\"\u003eKeyed\u003c\/td\u003e\n\u003ctd style=\"width: 393.767px;\" data-mce-style=\"width: 269.705px; height: 21px;\" data-mce-selected=\"1\"\u003eNo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-style=\"height: 21px;\"\u003e\n\u003ctd style=\"width: 112.274px;\" data-mce-style=\"width: 233.333px; height: 21px;\" data-mce-selected=\"1\"\u003eColor \u003c\/td\u003e\n\u003ctd style=\"width: 393.767px;\" data-mce-style=\"width: 269.705px; height: 21px;\" data-mce-selected=\"1\"\u003eWhite\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-style=\"height: 21px;\"\u003e\n\u003ctd style=\"width: 112.274px;\" data-mce-style=\"width: 233.333px; height: 21px;\" data-mce-selected=\"1\"\u003eMaterial \u003c\/td\u003e\n\u003ctd style=\"width: 393.767px;\" data-mce-style=\"width: 269.705px; height: 21px;\" data-mce-selected=\"1\"\u003ePlastic\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-style=\"height: 21px;\"\u003e\n\u003ctd style=\"width: 112.274px;\" data-mce-style=\"width: 233.333px; height: 21px;\" data-mce-selected=\"1\"\u003eContact size \u003c\/td\u003e\n\u003ctd style=\"width: 393.767px;\" data-mce-style=\"width: 269.705px; height: 21px;\" data-mce-selected=\"1\"\u003e16\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-style=\"height: 21px;\"\u003e\n\u003ctd style=\"width: 112.274px;\" data-mce-style=\"width: 233.333px; height: 21px;\" data-mce-selected=\"1\"\u003eAccessory\u003c\/td\u003e\n\u003ctd style=\"width: 393.767px;\" data-mce-style=\"width: 269.705px; height: 21px;\" data-mce-selected=\"1\"\u003ey\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-style=\"height: 21px;\"\u003e\n\u003ctd style=\"width: 112.274px;\" data-mce-style=\"width: 233.333px; height: 21px;\" data-mce-selected=\"1\"\u003eAccessory Type\u003c\/td\u003e\n\u003ctd style=\"width: 393.767px;\" data-mce-style=\"width: 269.705px; height: 21px;\" data-mce-selected=\"1\"\u003eKeying Pin\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e","published_at":"2019-10-30T09:15:41-04:00","created_at":"2019-10-30T09:15:41-04:00","vendor":"Deutsch","type":"Keying Pin","tags":["Series_DT Series","Series_DTHD Series","Series_DTM Series","Series_DTP Series","Series_HD10 Series","Series_HD30 Series","Series_HDP20 Series","Type_Keying Pin"],"price":90,"price_min":90,"price_max":90,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":31074218672210,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"0413-215-1605","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"0413-215-1605 - Keying Pin - Size 16","public_title":null,"options":["Default Title"],"price":90,"weight":51,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.buydeutsch.com\/cdn\/shop\/products\/0413-215-1605.jpg?v=1628860863"],"featured_image":"\/\/www.buydeutsch.com\/cdn\/shop\/products\/0413-215-1605.jpg?v=1628860863","options":["Title"],"media":[{"alt":null,"id":20614532038738,"position":1,"preview_image":{"aspect_ratio":1.333,"height":480,"width":640,"src":"\/\/www.buydeutsch.com\/cdn\/shop\/products\/0413-215-1605.jpg?v=1628860863"},"aspect_ratio":1.333,"height":480,"media_type":"image","src":"\/\/www.buydeutsch.com\/cdn\/shop\/products\/0413-215-1605.jpg?v=1628860863","width":640}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cdiv class=\"row\"\u003e\n\u003cdiv class=\"col-lg-5\"\u003e\u003cimg src=\"https:\/\/cdn.wirecare.com\/assets\/images\/pages\/deutsch-connectors\/deutsch-logo.jpg\" alt=\"Deutsch Logo\" class=\"img-fluid d-block mx-auto center-block\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"col-lg-7\"\u003e\n\u003ch4\u003eKEYING PINS\u003c\/h4\u003e\n\u003cp\u003eKeying pins are solid plastic rods used to prevent mis-mating of like connectors in close proximity. Applicable Deutsch product lines include HD10, HD30, HDP20, DT, and DTM Series. Keying pins are inserted into the retention fingers of an empty socket cavity. Once installed, the keying pin blocks a mating contact pin from being inserted. The contact pin will be blocked before the coupling device mates the connectors, preventing the mis-mating of like connectors. Proper usage requires that the corresponding mating pin be omitted and a sealing plug is inserted in the rear cavity of the mating connector. Individual applications will vary, and testing should be done to determine the best pattern arrangement to prevent improper connector mating.\u003c\/p\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003ctable height=\"252\" style=\"width: 520px;\" data-mce-style=\"width: 517px;\" data-mce-selected=\"1\"\u003e\n\u003ctbody\u003e\n\u003ctr data-mce-style=\"height: 21px;\"\u003e\n\u003ctd style=\"width: 112.274px;\" data-mce-style=\"width: 233.333px; height: 21px;\" data-mce-selected=\"1\"\u003ePart Number\u003c\/td\u003e\n\u003ctd style=\"width: 393.767px;\" data-mce-style=\"width: 269.705px; height: 21px;\" data-mce-selected=\"1\"\u003e\u003cspan\u003e0413-215-1605\u003c\/span\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-style=\"height: 21px;\"\u003e\n\u003ctd style=\"width: 112.274px;\" data-mce-style=\"width: 233.333px; height: 21px;\" data-mce-selected=\"1\"\u003eSeries\u003c\/td\u003e\n\u003ctd style=\"width: 393.767px;\" data-mce-style=\"width: 269.705px; height: 21px;\" data-mce-selected=\"1\"\u003eHD30 Series, HDP20 Series, DRC Series, WT Series, DTM Series, DRB Series, STRIKE Series\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-style=\"height: 21px;\"\u003e\n\u003ctd style=\"width: 112.274px;\" data-mce-style=\"width: 233.333px; height: 21px;\" data-mce-selected=\"1\"\u003eKeyed\u003c\/td\u003e\n\u003ctd style=\"width: 393.767px;\" data-mce-style=\"width: 269.705px; height: 21px;\" data-mce-selected=\"1\"\u003eNo\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-style=\"height: 21px;\"\u003e\n\u003ctd style=\"width: 112.274px;\" data-mce-style=\"width: 233.333px; height: 21px;\" data-mce-selected=\"1\"\u003eColor \u003c\/td\u003e\n\u003ctd style=\"width: 393.767px;\" data-mce-style=\"width: 269.705px; height: 21px;\" data-mce-selected=\"1\"\u003eWhite\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-style=\"height: 21px;\"\u003e\n\u003ctd style=\"width: 112.274px;\" data-mce-style=\"width: 233.333px; height: 21px;\" data-mce-selected=\"1\"\u003eMaterial \u003c\/td\u003e\n\u003ctd style=\"width: 393.767px;\" data-mce-style=\"width: 269.705px; height: 21px;\" data-mce-selected=\"1\"\u003ePlastic\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-style=\"height: 21px;\"\u003e\n\u003ctd style=\"width: 112.274px;\" data-mce-style=\"width: 233.333px; height: 21px;\" data-mce-selected=\"1\"\u003eContact size \u003c\/td\u003e\n\u003ctd style=\"width: 393.767px;\" data-mce-style=\"width: 269.705px; height: 21px;\" data-mce-selected=\"1\"\u003e16\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-style=\"height: 21px;\"\u003e\n\u003ctd style=\"width: 112.274px;\" data-mce-style=\"width: 233.333px; height: 21px;\" data-mce-selected=\"1\"\u003eAccessory\u003c\/td\u003e\n\u003ctd style=\"width: 393.767px;\" data-mce-style=\"width: 269.705px; height: 21px;\" data-mce-selected=\"1\"\u003ey\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr data-mce-style=\"height: 21px;\"\u003e\n\u003ctd style=\"width: 112.274px;\" data-mce-style=\"width: 233.333px; height: 21px;\" data-mce-selected=\"1\"\u003eAccessory Type\u003c\/td\u003e\n\u003ctd style=\"width: 393.767px;\" data-mce-style=\"width: 269.705px; height: 21px;\" data-mce-selected=\"1\"\u003eKeying Pin\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003cbr\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e"}
