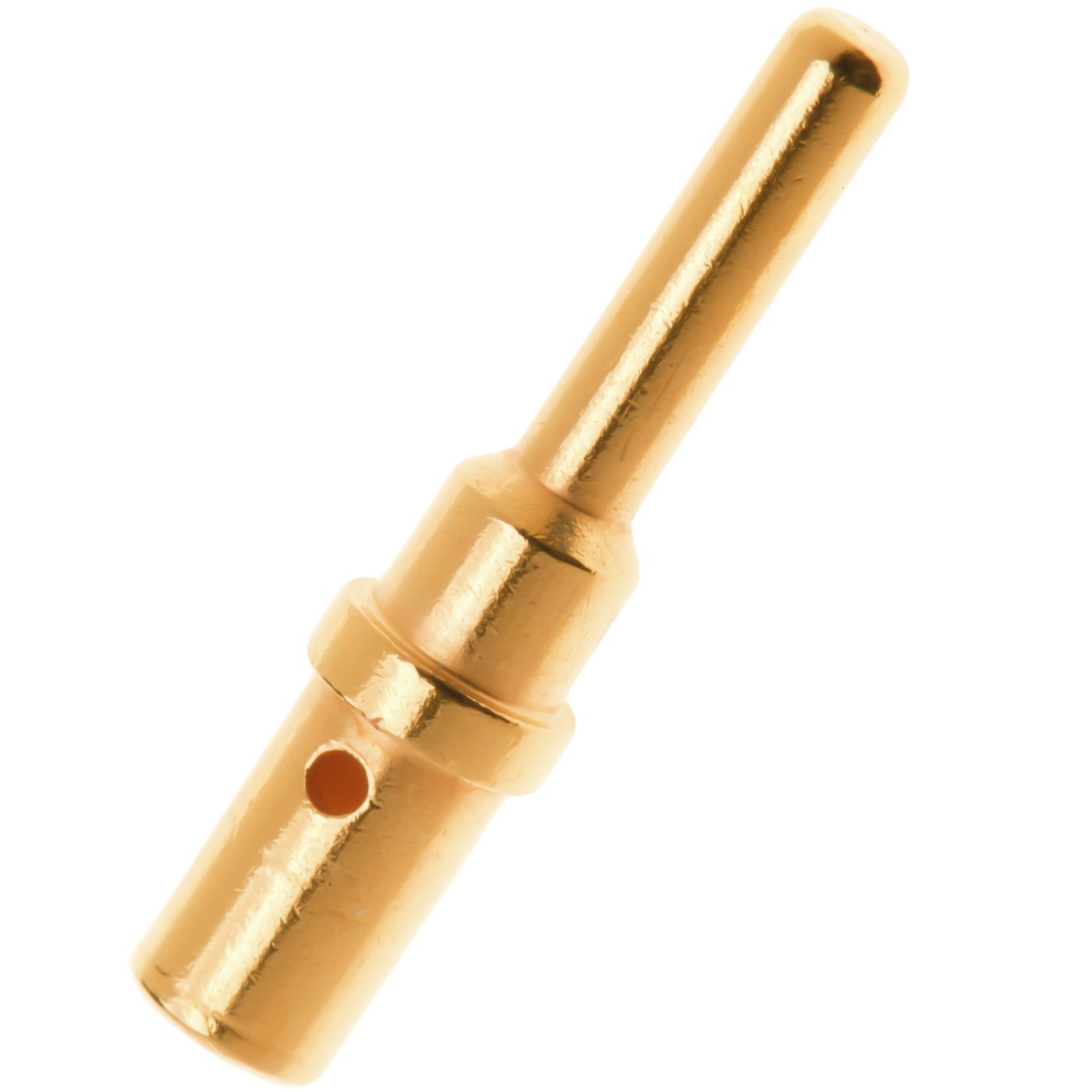

0460-220-1231 - Solid Pin - Size 12 - 12-14 AWG, 25 Amps, Gold Plated

Deutsch Logo

DEUTSCH - SOLID PINS

The solid contacts are designed for use with larger wire size and heavy duty applications. Solid contacts are manufactured using a cold heading process with solid copper alloy wire and are available with either a nickel or gold plating finish. These contacts terminate wire from 6 AWG to 20 AWG (13 - 0.5mm2) and are available in 5 sizes each of the pin and socket. DEUTSCH industrial environmentally sealed electrical connectors are for critical applications and are designed to withstand the harshest and most challenging environments.

 Part Number 0460-220-1231
Series HD30 Series, HDP20 Series, DRC Series, HD10 Series, DTP Series, DTHD Series, DRB Series, Jiffy Splice
Solid/Stamped and Formed Solid
Wire Size 12, 14
Keyed No
Material Gold
Contact Size 12
Current Rating 25
Holds Pin/Socket Pin
