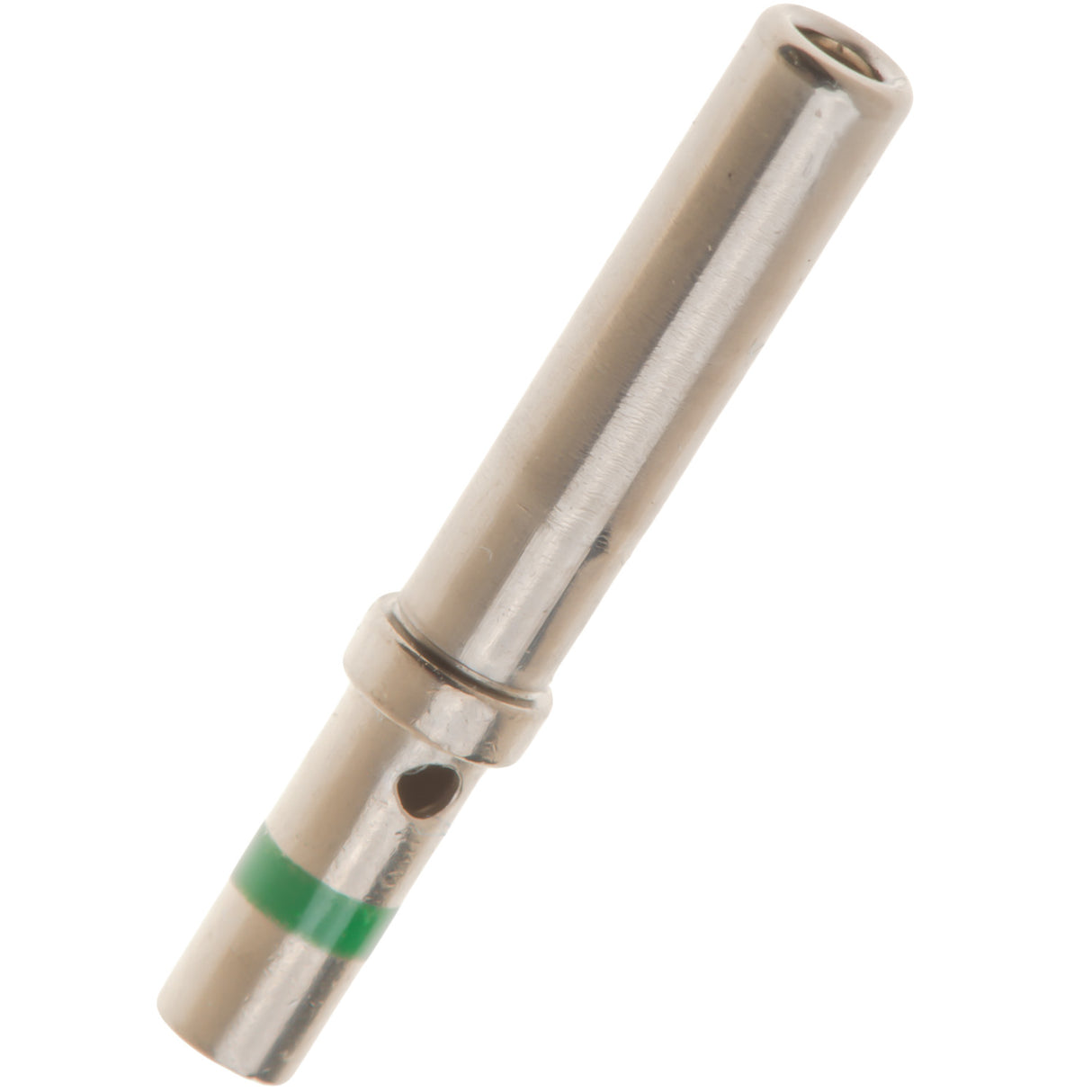

0462-209-16141 - Solid Socket - Size 16 - 14 AWG, 13 Amps, Green Stripe, Nickel Plated

Deutsch Logo

DEUTSCH - SOLID SOCKETS

The solid contacts are designed for use with larger wire size and heavy duty applications. Solid contacts are manufactured using a cold heading process with solid copper alloy wire and are available with either a nickel or gold plating finish. These contacts terminate wire from 6 AWG to 20 AWG (13 - 0.5mm2) and are available in 5 sizes each of the pin and socket. DEUTSCH industrial environmentally sealed electrical connectors are for critical applications and are designed to withstand the harshest and most challenging environments.



Part Number 0462-209-16141
Series HD30 Series, HDP20 Series, DRC Series, HD10 Series, DT Series, DRB Series, DTV Series, AEC Series, STRIKE Series, Jiffy Splice
Solid/Stamped and Formed: Solid
Wire Size 14
Keyed No
Material  Nickle
Contact size  16
Current Rating 13
Holds Pin/Socket Socket
