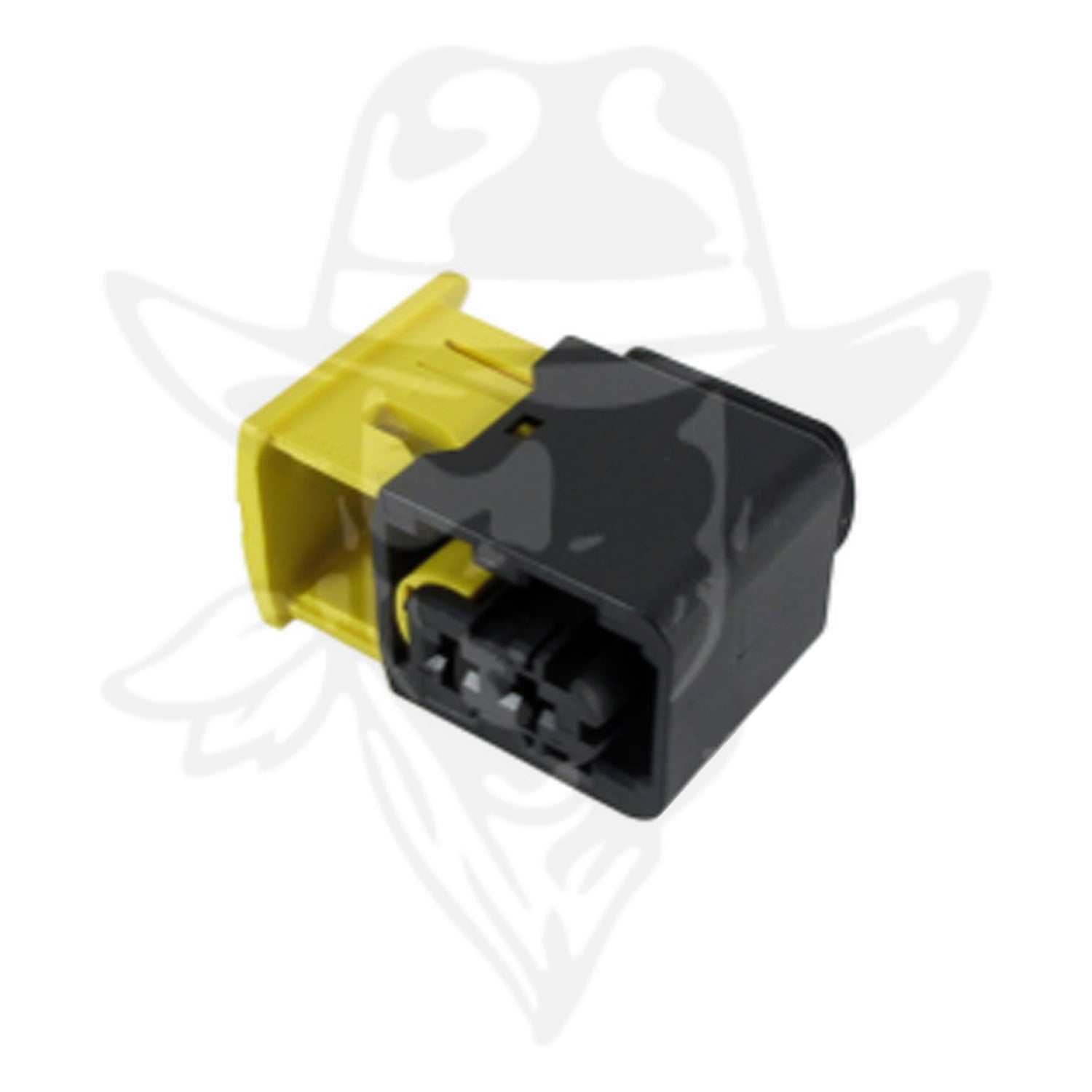

1-1418483-1 - HDSCS Series - Receptacle Contact Housing, Secondary Lock Included

Sku: 1-1418483-1
Vendor: Deutsch
$3.69
Maximum quantity available reached.
Deutsch Logo

Deutsch HSSCS Series

HDSCS housings are heavy-duty, environmentally sealed connectors available in five sizes and arrangements from 2 to 18 cavities. These cable to cable and cable to device connectors have a slide lock for mating. They accept AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts and carry up to 40 amps.

Specifications:

  • Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
  • Connector Style : Housing for female terminals
  • Mating Tab Width : 2.8 mm [ .11 in ]
  • Connector System : Wire-to-Wire
  • Number of Positions : 2
  • Centerline (Pitch) : 6 mm [ .236 in ]
