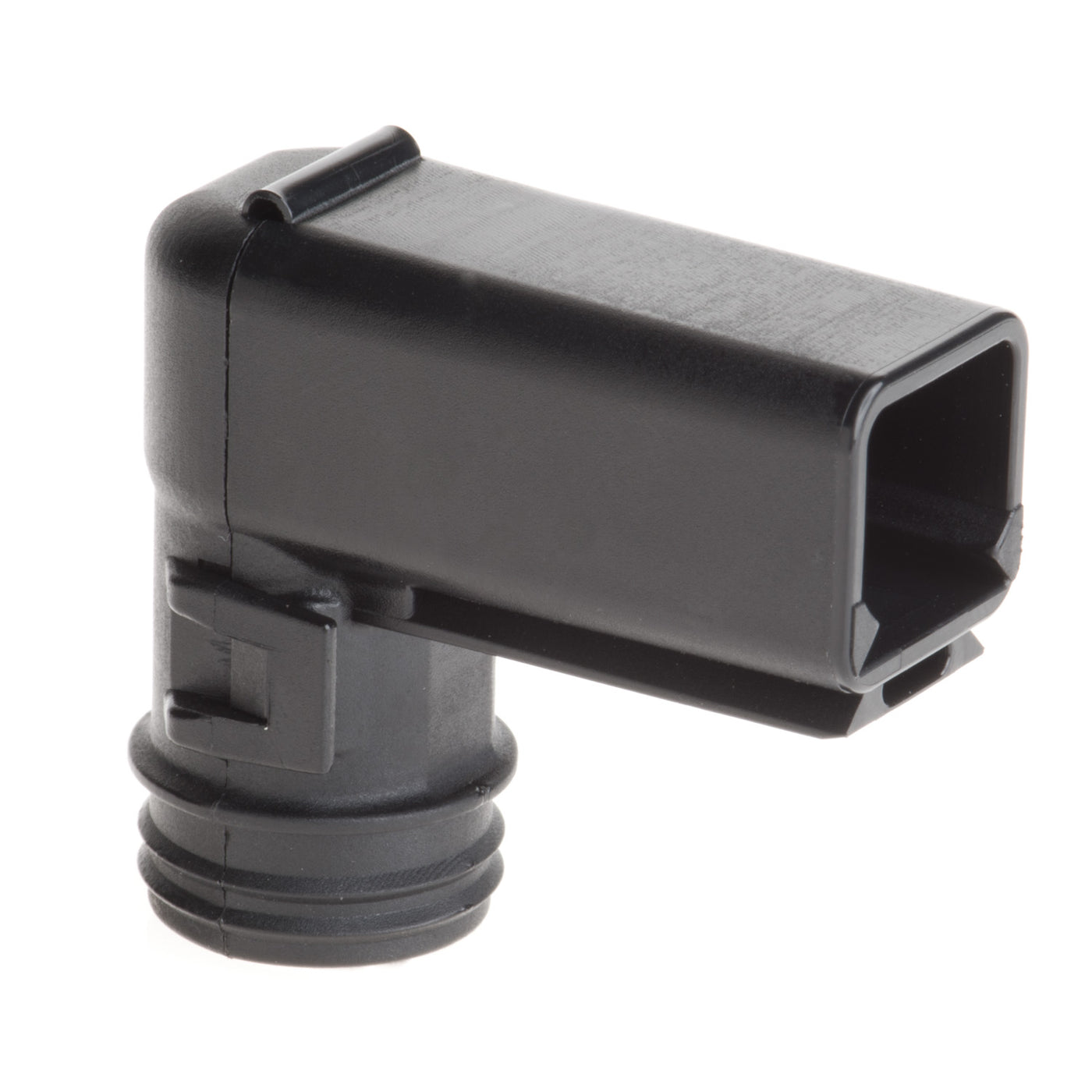

1011-230-0205 - DT Series - Backshell 2 Cavity Receptacle - Right Angle, Black

Sku: 1011-230-0205
Vendor: Deutsch
$2.23
Maximum quantity available reached.
Deutsch AEC

Deutsch Backshells

The Deutsch DT series backshells are designed to snap on to all the standard (without end caps) DT series connectors. The innovative design of the backshell accommodates several different sizes of slit or unslit convoluted tubing, sleeved cable bundles or unbundled loose wires. The backshells are available for both plugs and receptacles, in either straight or right angle configurations. Backshells with an internally molded in strain relief are also available.



Part Number 1011-230-0205
Series DT Series
Keyed No
Color  Black
Material  Plastic
Shape: 90°
Connector Style: Receptacle
Cavities 2
Special Features Tubing sizes 6, 7.5, 8.5, and 10mm
Accessory y
Accessory Type Backshell
