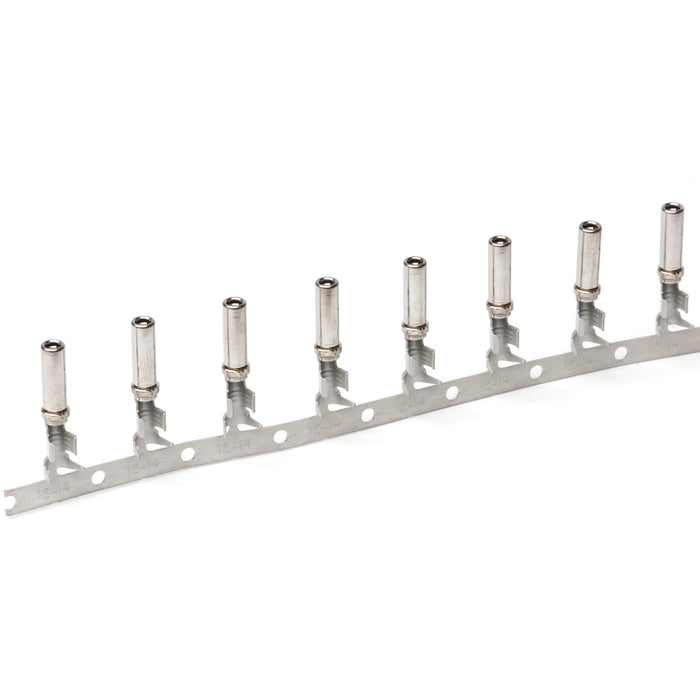

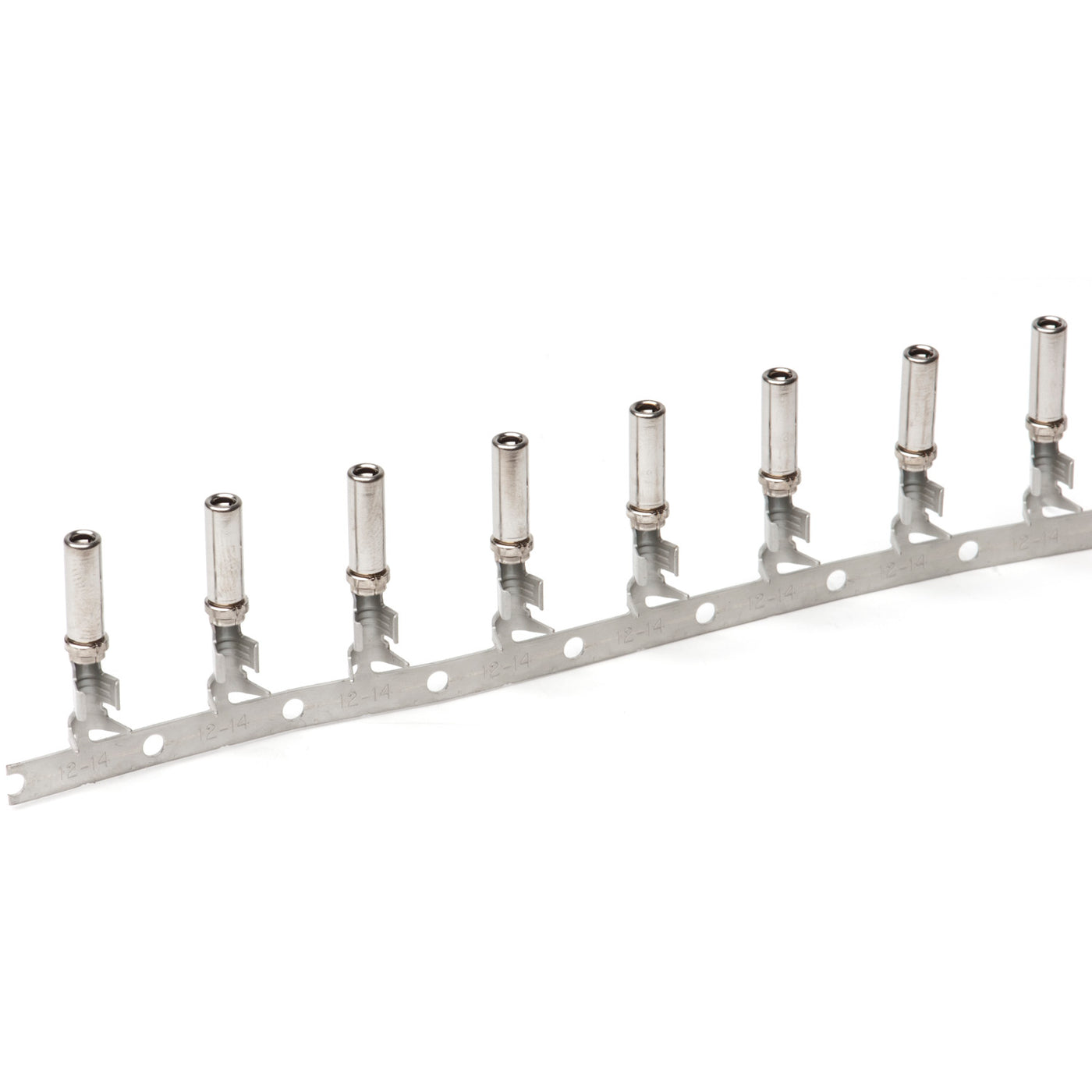

1062-12-0166 - Stamped & Formed Socket - Size 12 - 12-14 AWG, .113-.176 Insulation, 25 Amps, Nickel Plated, Qty - 1 Socket

DEUTSCH - STAMPED & FORMED
The solid contacts are designed for use with larger wire size and heavy duty applications. Solid contacts are manufactured using a cold heading process with solid copper alloy wire and are available with either a nickel or gold plating finish. These contacts terminate wire from 6 AWG to 20 AWG (13 - 0.5mm2) and are available in 5 sizes each of the pin and socket. DEUTSCH industrial environmentally sealed electrical connectors are for critical applications and are designed to withstand the harshest and most challenging environments.
Part Number | 1062-12-0166 |
Series | HD30 Series, HDP20 Series, DRC Series, HD10 Series, DTP Series, DTHD Series, DRB Series, Jiffy Splice |
Solid/Stamped and Formed | Stamped & Formed |
Wire Size | 12, 14 |
Keyed | No |
Material | Nickel |
Contact Size | 12 |
Special Features | Reel |
Current Rating | 25 |
Holds Pin/Socket | Socket |
