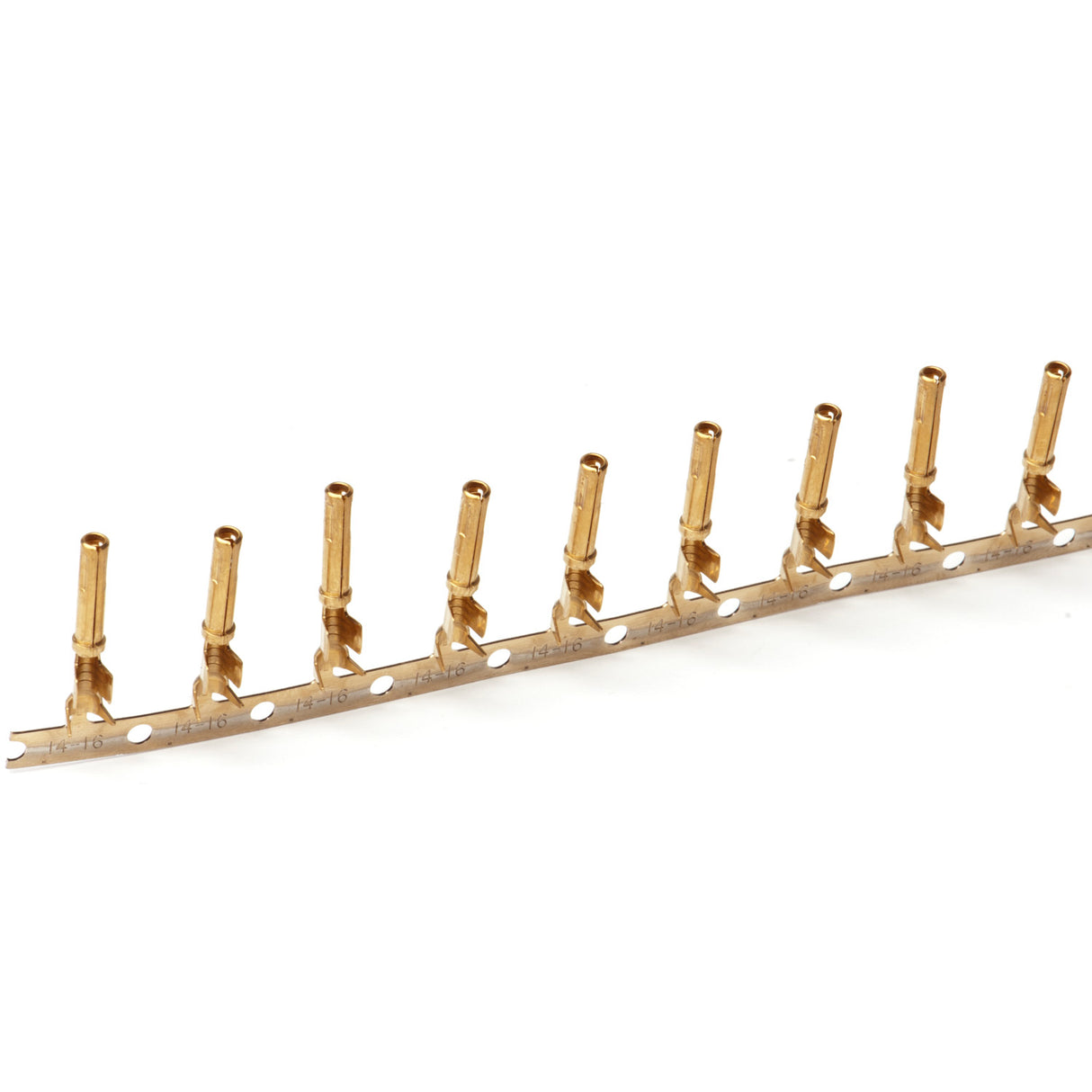

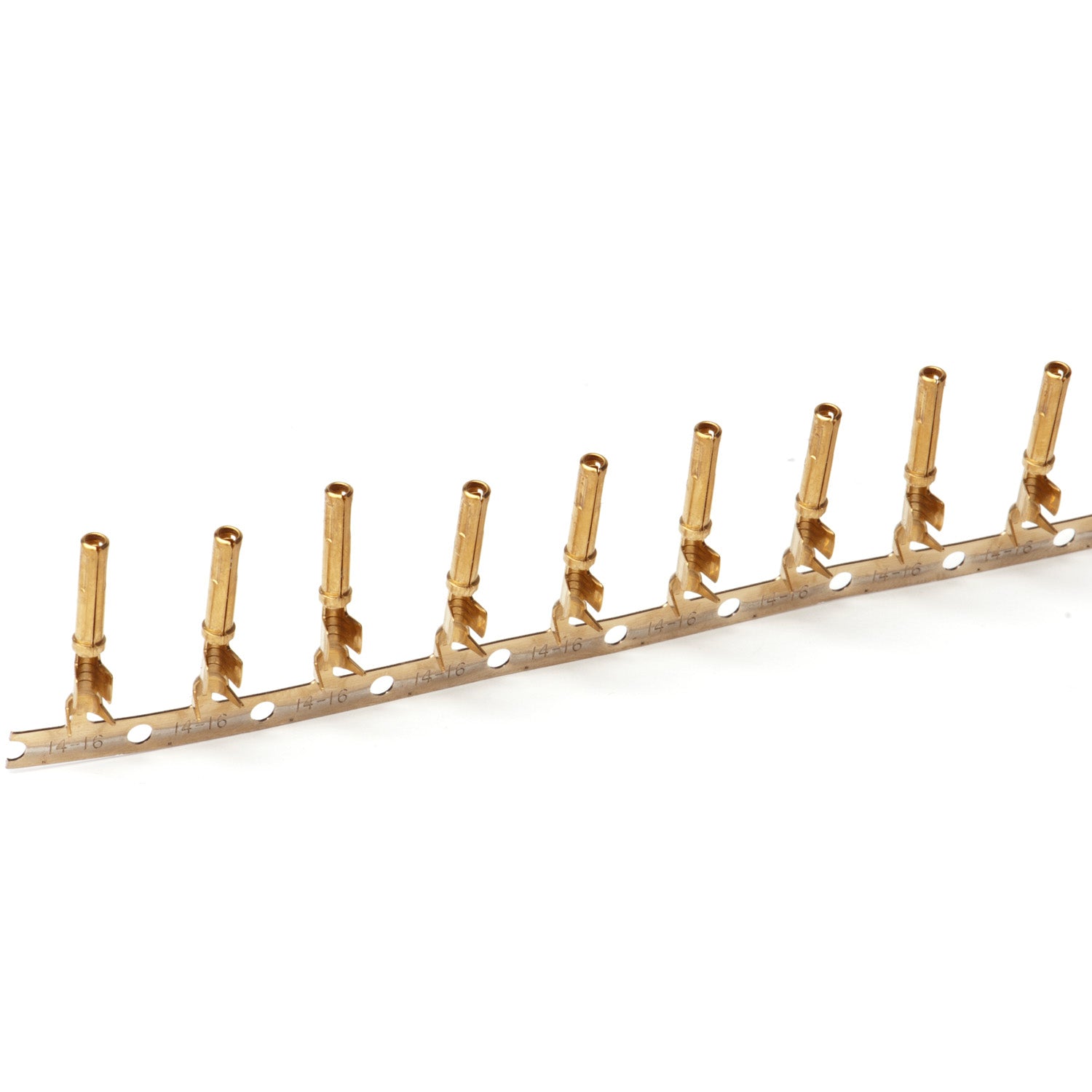

1062-16-1444 - Stamped & Formed Socket - Size 16 - 12-16 AWG, .075-.140 Insulation, Sleeveless, 13 Amps, Gold Plated, Qty - 1 Socket

Deutsch Logo

DEUTSCH - STAMPED & FORMED

The solid contacts are designed for use with larger wire size and heavy duty applications. Solid contacts are manufactured using a cold heading process with solid copper alloy wire and are available with either a nickel or gold plating finish. These contacts terminate wire from 6 AWG to 20 AWG (13 - 0.5mm2) and are available in 5 sizes each of the pin and socket. DEUTSCH industrial environmentally sealed electrical connectors are for critical applications and are designed to withstand the harshest and most challenging environments.

 Part Number 1062-16-1444
Series HD30, HDP20 Series, DRC Series, HD10 Series, DT Series, DRB Series, DTV Series, AEC Series, STRIKE Series, Jiffy Splice
Solid/Stamped and Formed Stamped & Formed
Wire Size 12, 14, 16
Keyed No
Material Gold
Contact Size 16
Special Features Reel, sleeveless
Current Rating 13
Holds Pin/Socket Socket
