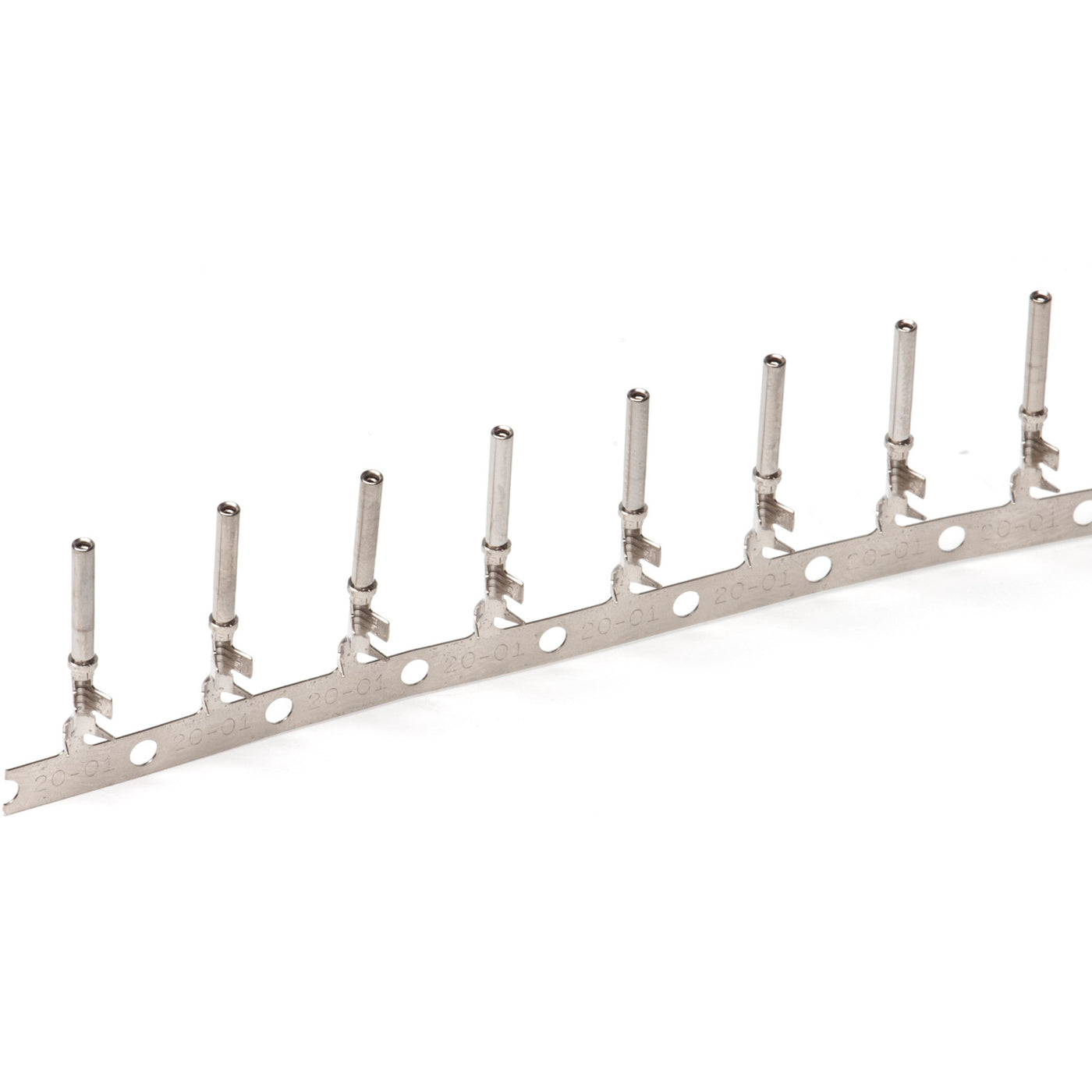

1062-20-0122 - Stamped & Formed Socket - Size 20 - 16-22 AWG, .075-.125 Insulation, 7.5 Amps, Nickel Plated, Qty - 1 Socket

Deutsch Logo

DEUTSCH - STAMPED & FORMED

The solid contacts are designed for use with larger wire size and heavy duty applications. Solid contacts are manufactured using a cold heading process with solid copper alloy wire and are available with either a nickel or gold plating finish. These contacts terminate wire from 6 AWG to 20 AWG (13 - 0.5mm2) and are available in 5 sizes each of the pin and socket. DEUTSCH industrial environmentally sealed electrical connectors are for critical applications and are designed to withstand the harshest and most challenging environments.


TECHNICAL SPECIFICATIONS

 Part Number 1062-20-0122
Series HD30 Series, HDP20 Series, DRC Series, DTM Series, DRB Series, STRIKE Series
Solid/Stamped and Formed Stamped & Formed
Wire Size 16,18, 20, 22
Keyed No
Material Nickel
Contact Size 20
Special Features Reel
Current Rating 7.5
Holds Pin/Socket Socket
