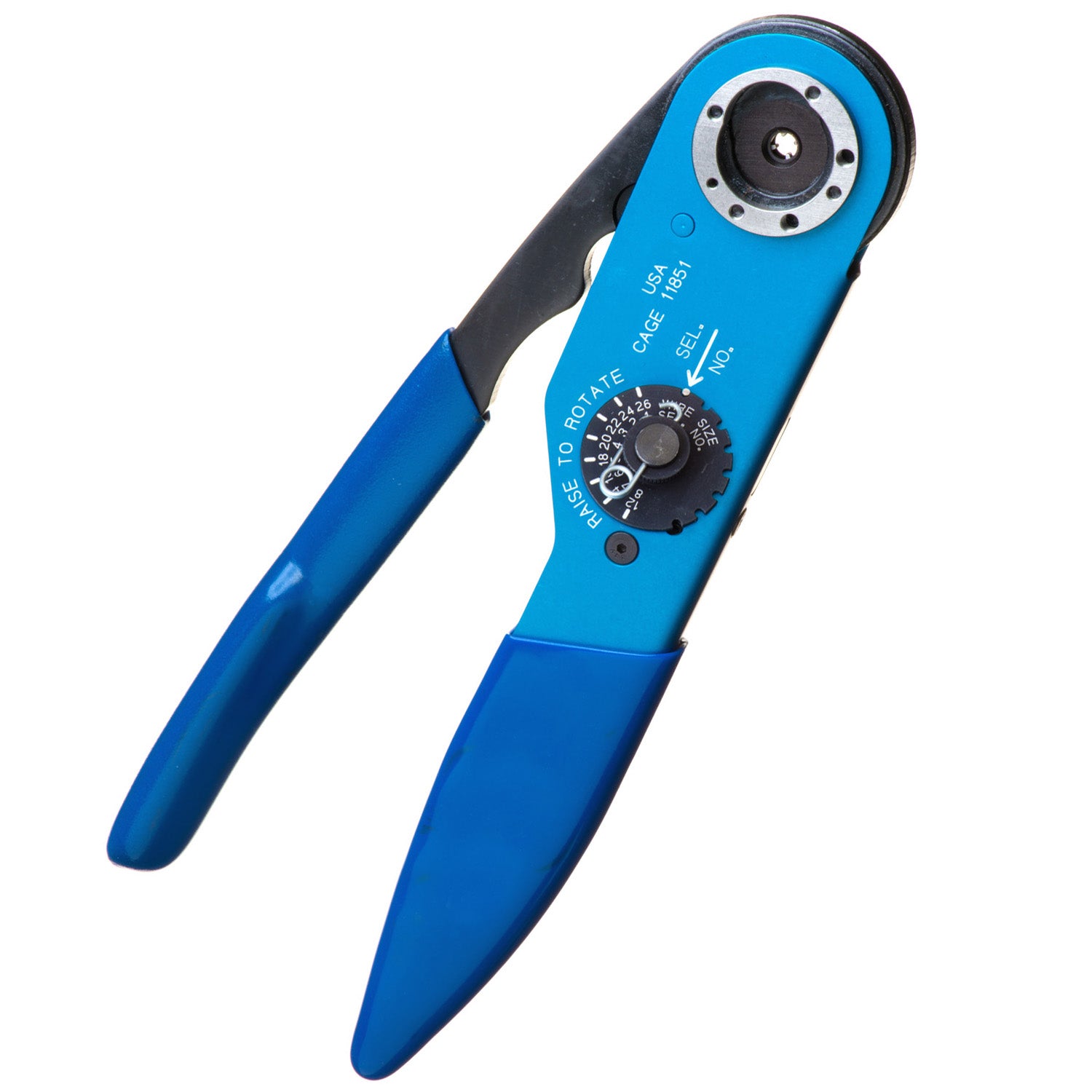

AF8 - Mil-Spec Crimp Tool Frame - Upper Range - 12-26 AWG - 8 Impression (Needs TH163 Turret Head - Not included!)

The DMC AF8, qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of 12 through 26 AWG. Over a thousand turret heads are available to adapt the tool frame to your specific military or proprietary contact/wire combination. The 8 impression crimp, which is standard in the AF8, assures absolute maximum tensile strength with almost every closed barrel contact.

For More Information on AF8, see the following document: Specification Sheet

• Heavy duty power in a light weight and easy to use tool.
• Adjustable for a wide range of wire and connector sizes.
• Ergonomic design eliminates operator fatigue.
• Gives a standardized and accurate crimp every time.
• Works with Deutsch Products.
• Go-No-Go Gauge available to test accuracy. (G125)
• Requires Military Grade Crimper Turret Head. (TH163)
• Lower Range version available for miniature connector types. (AFM8)

The DMC AF8 can be easily mated to a military or non-military turret head, positioner, or adjustable head. Once mated, this Upper Range Crimp Tool can be adjusted to match the diameter of the connector and wires desired. Because of this, connectors size 12 AWG to 26 AWG can be crimped correctly and precisely to wires for a professional and consistent connection. This causes a variety of applications to be available. Depending on the attachment use and adjustments made, this crimp tool can be used on commercial installations, home maintenance, laboratory work, and heavy duty military or aerospace applications. Almost anything that requires electrical wiring or connection systems, such as the Deutsch connectors line of products, can use the AF8 for their assemblies and ends.
