AM-N04PX2-HA - NMEA Hydro/Net - Multi-Hub Adapter - 5 Position Plug and Receptacle, Black

Sku: AM-N04PX2-HA
Vendor: Amphenol
$32.40
Maximum quantity available reached.

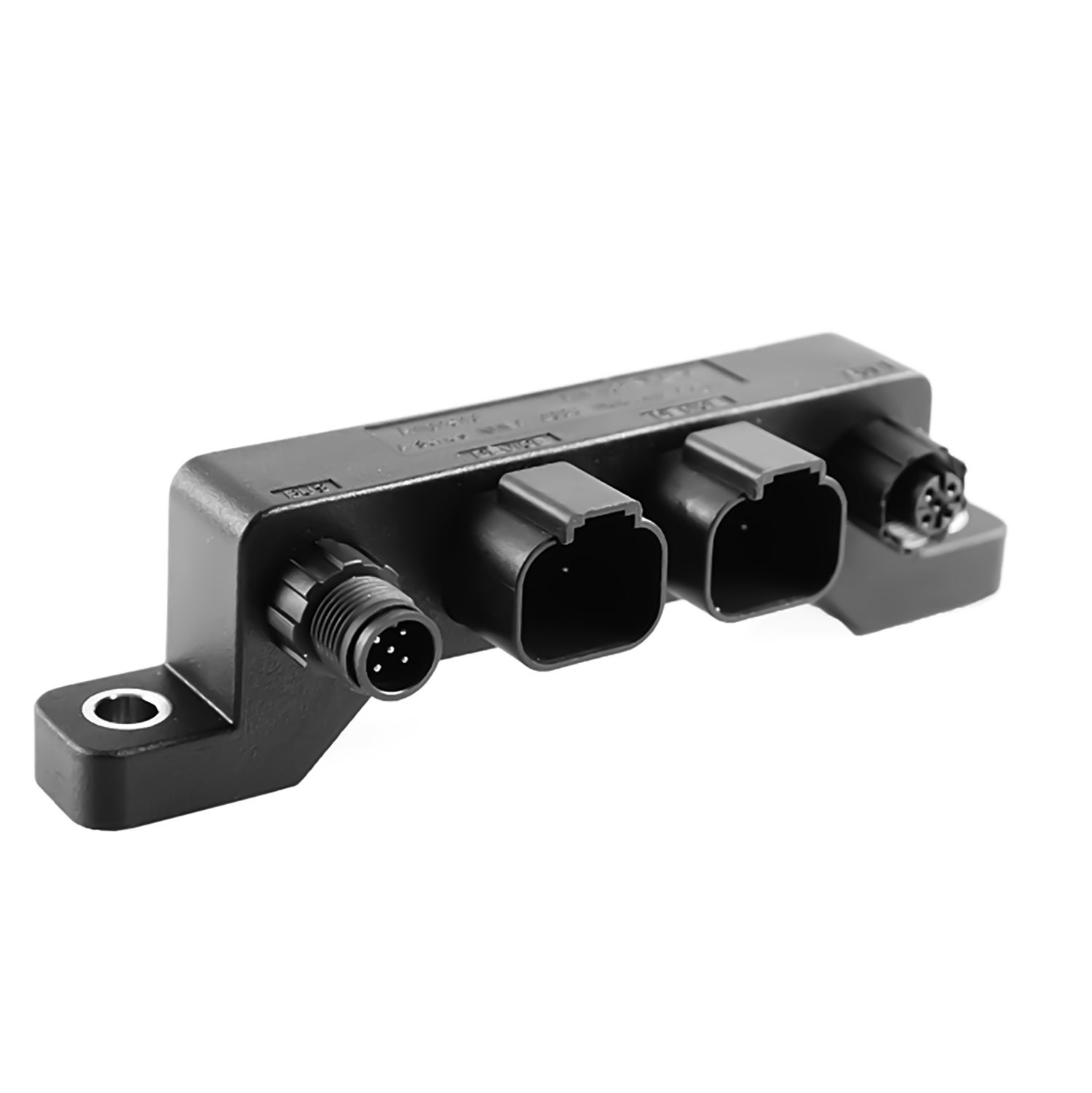

AM-N04PX2-HA : Amphenol - NMEA Hydro/Net, Multi-Hub Adapter, Black

The AT Series Multi-Hub Adapter provides OEM's flexibility and increased reliability when connecting multiple devices to NMEA 2000 network. This product powers the NMEA network in a rugged, compact, and environmentally sealed package. Created from black thermoplastic it can withstand the environmental elements that would commonly degrade connectors.


This product allows for customized and built-to-length harnesses eliminating costly coils of unused cable.


Product Specifications

 Part Number AM-N04PX2
Series AT Series
Number of Positions 2 - Four (4) position receptacles (AT/DT) with gold pins / 2 - Five (5) pin Mico NMEA
Contact Material Gold Flash plating over copper alloy
Current Rating 4A
Color
Black
Dielectric Withstanding Voltage  Less than 2 milliamps current leakage @ 1000 volts AC
Seal Silicone Rubber
Over mold Material Thermoplastic
Mating Cycles 100
Mating Cycle Durability >100
