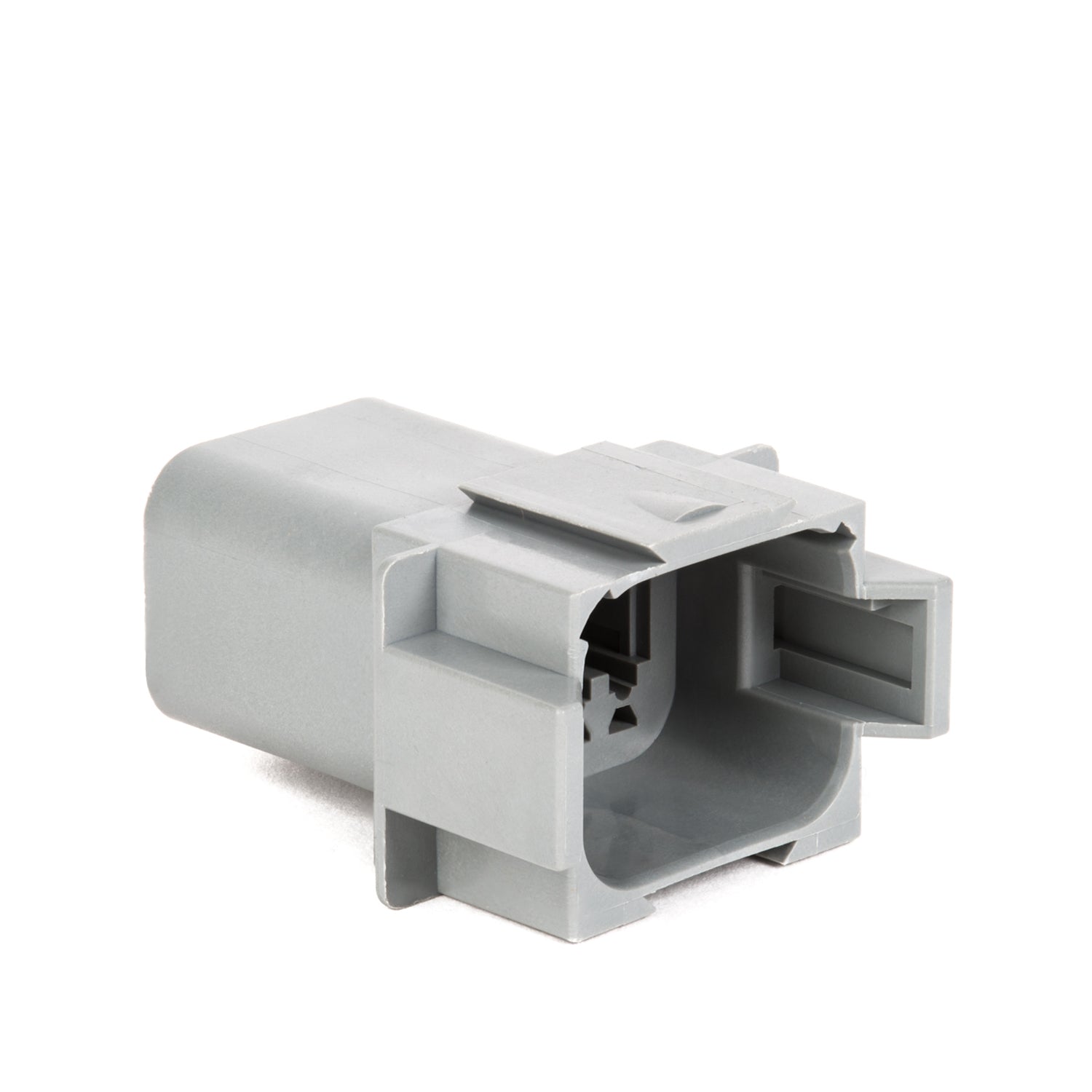

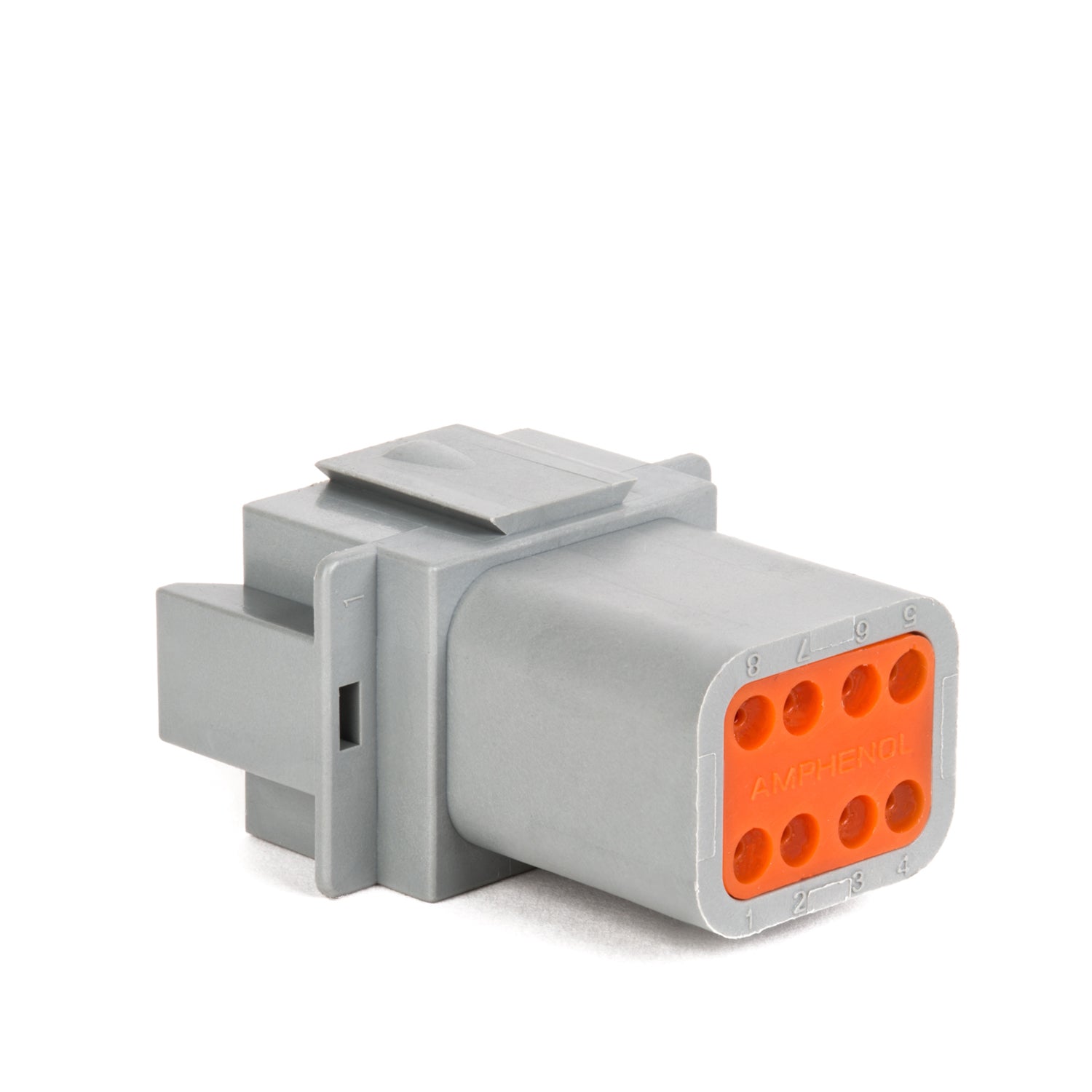

AT04-08PA - AT Series - 8 Pin Receptacle - A Key, In-line, Gray

AT04-08PA - Amphenol - AT Series, 8 Cavity, Receptacle

Amphenol AT-Series Connectors are a high-performance, cost effective solution able to be used in a variety of applications including but not limited to: Transportation, Marine, Diagnostic, Military, Energy, and Agriculture.


These connectors are manufactured from durable thermoplastic material with excellent UV resistance, that is RoHS compliant. These connectors are precision engineered with silicone seals to provide positive, weather resistant connections, and to function flawlessly even after hundreds of connect/disconnect cycles.


Amphenol AT Series connectors are compatible with other existing standard products industry-wide.

 Part Number AT04-08PA
Series AT Series
Product Type Receptacle
Number  of Positions 8- Way A Position Key
Contact Size  16
AWG 14-20
AMP 13A
Contact Type Pin
Color Gray
End Cap/Rear Seal Dimension .088" - .145"
Mating Part(s) AT06-08SA Plug
Wedgelock Part Number AW8P
Wire Range 14-20-AWG
