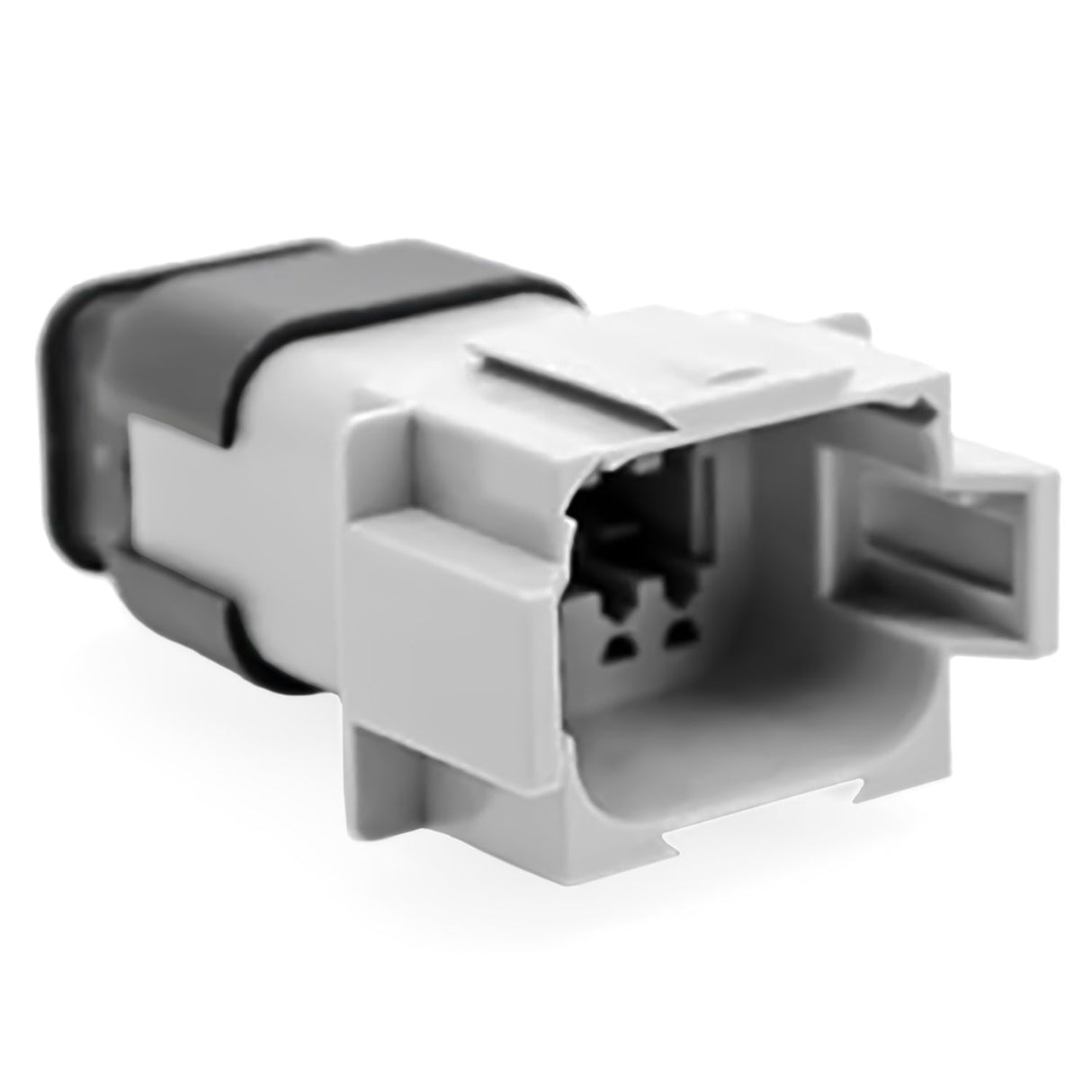

AT04-08PA-SRGRY - AT/SR01 Series - 8 Pin Receptacle - A Key, Latch Holder, Cap, Sealed, Strain Relief, Gray
AT04-08PASR - Amphenol - ATSR Series, 8 Cavity, Receptacle
Amphenol AT-Series Connectors are a high-performance, cost effective solution able to be used in a variety of applications including but not limited to: Transportation, Marine, Diagnostic, Military, Energy, and Agriculture.
These connectors are manufactured from durable thermoplastic material with excellent UV resistance, that is RoHS compliant. These connectors are precision engineered with silicone seals to provide positive, weather resistant connections, and to function flawlessly even after hundreds of connect/disconnect cycles.
Amphenol AT Series connectors are compatible with other existing standard products industry-wide.
- Product Type: Receptacle
- Number of positions: 8-Way
- Contact Size: 16
- AWG: 14-20
- AMP: 13A
- Contact Type: Pin
- Color: Grey
- Mating Part(s): AT06-08SA* Plug
- Wedgelock Part Number : AW8P
- Seal Diameter: .088" - .145"
- Wire Range: 14-20 AWG
