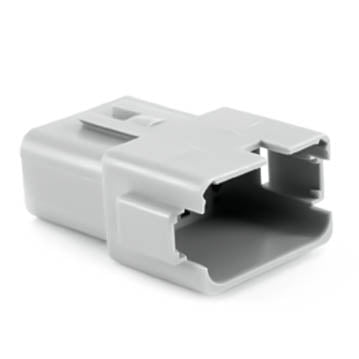

AT04-12PA - AT Series - 12 Pin Receptacle - A Key, Gray

AT04-12PA : Amphenol - AT Series,12 Cavity, Receptacle

Amphenol AT-Series Connectors are a high-performance, cost effective solution able to be used in a variety of applications including but not limited to: Transportation, Marine, Diagnostic, Military, Energy, and Agriculture.


These connectors are manufactured from durable thermoplastic material with excellent UV resistance, that is RoHS compliant. These connectors are precision engineered with silicone seals to provide positive, weather resistant connections, and to function flawlessly even after hundreds of connect/disconnect cycles.


Amphenol AT Series connectors are compatible with other existing standard products industry-wide.


Product Specifications

Part Number AT04-12PA
Product Type Receptacle
Color Gray
Number of Positions 12-Way, A key
Contact size 16
AWG 14-20
AMP 13 A
Contact Type Pin
End Cap/Rear Seal Dimensions  .088" - .145"
Mating Part(s) AT06-12SA* Plug
Wedgelock Required Yes, AW12P
Wire Range 14-20 AWG
