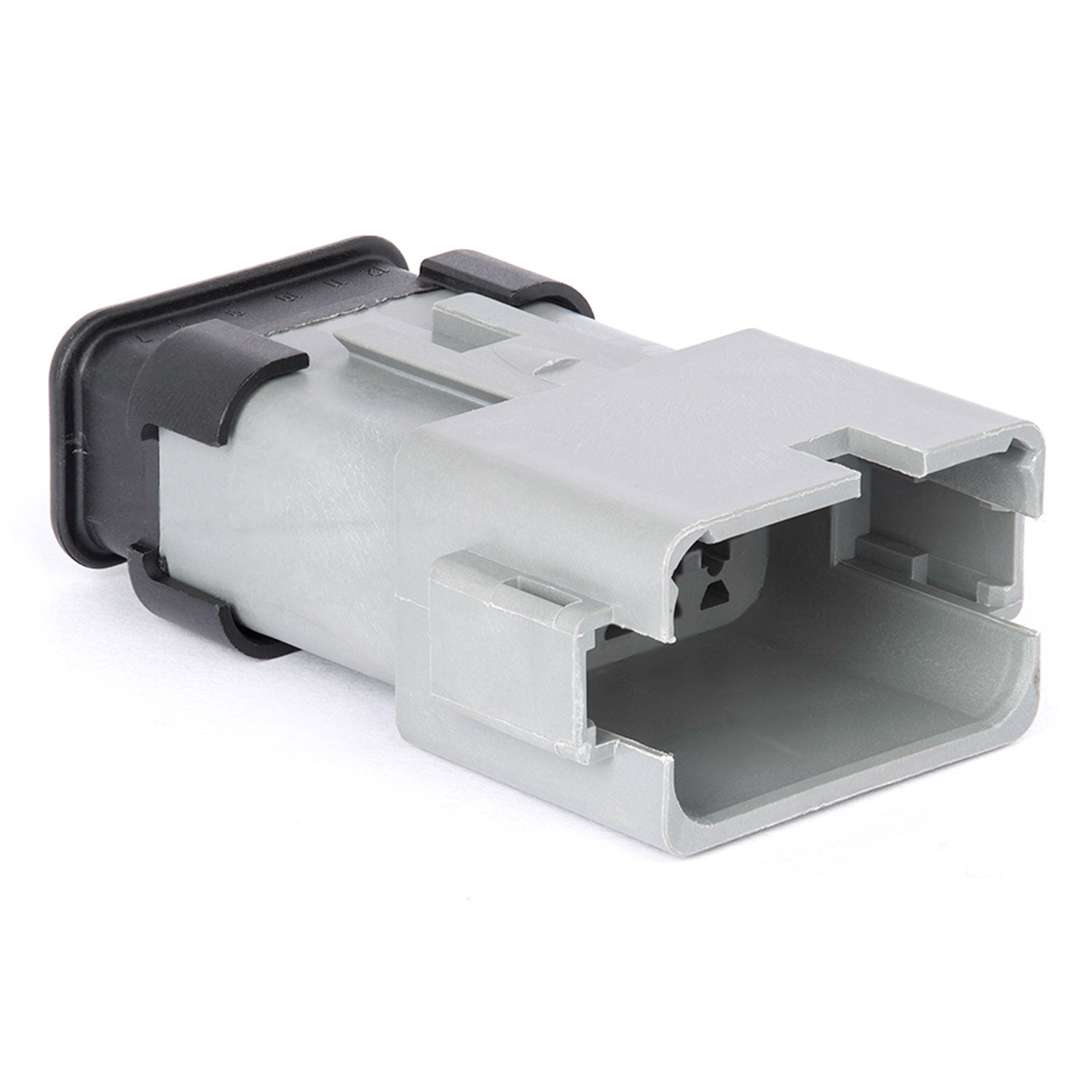

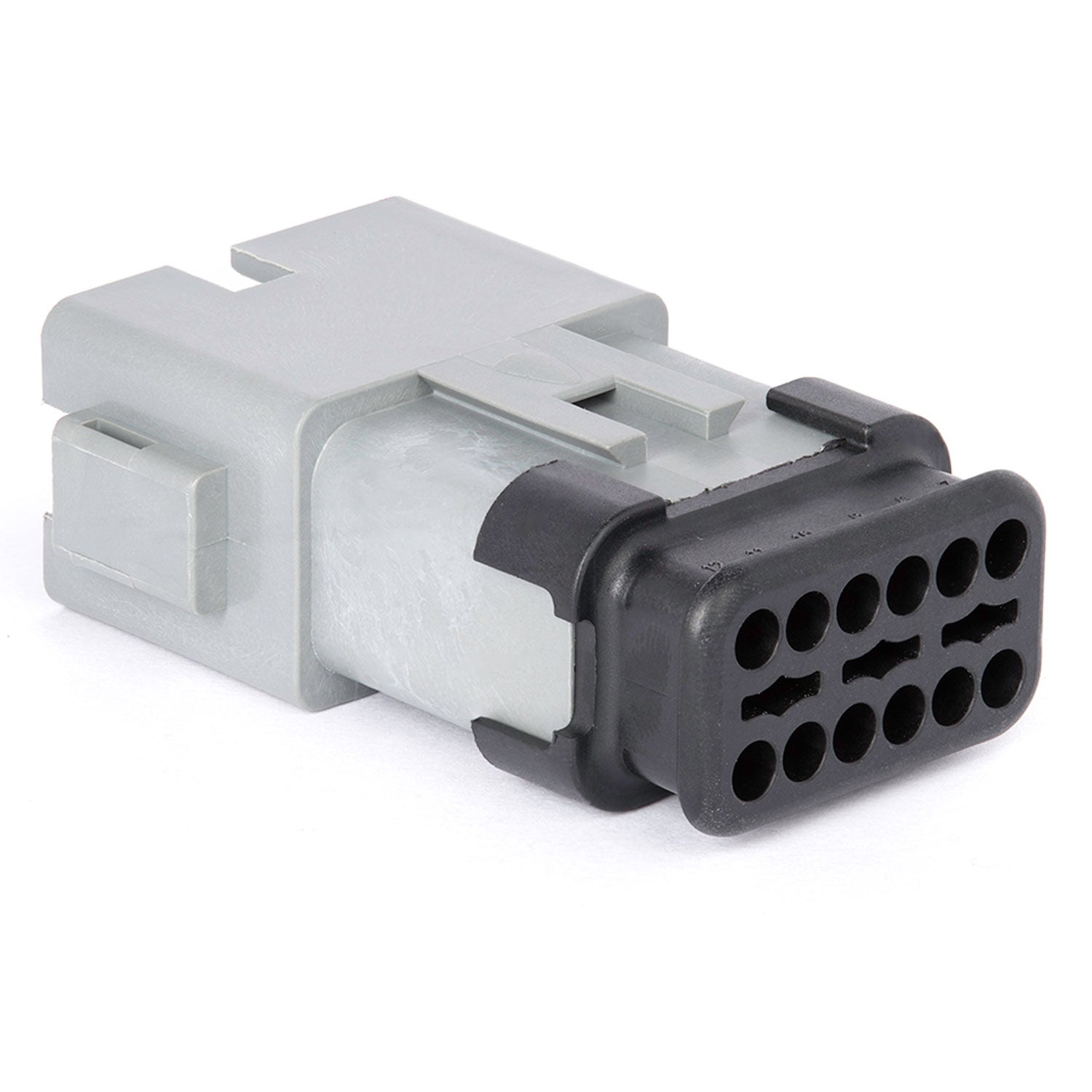

AT04-12PA-SR01GRY - AT/SR01 Series - 12 Pin Receptacle - A Key, Gray

Sku: AT04-12PA-SR01GRY
Vendor: Amphenol
$2.90
Maximum quantity available reached.

AT04-12PA : Amphenol - AT Series,12 Cavity, Receptacle

Amphenol AT-Series Connectors are a high-performance, cost effective solution able to be used in a variety of applications including but not limited to: Transportation, Marine, Diagnostic, Military, Energy, and Agriculture.


These connectors are manufactured from durable thermoplastic material with excellent UV resistance, that is RoHS compliant. These connectors are precision engineered with silicone seals to provide positive, weather resistant connections, and to function flawlessly even after hundreds of connect/disconnect cycles.


Amphenol AT Series connectors are compatible with other existing standard products industry-wide.

Product Specifications:

  • Amps: 13
  • Color: Grey
  • Contact Size: 16
  • Contact type: Pin
  • Dielectric Value: 1500V minimum
  • Housing Material: Thermoplastic
  • Insulation Resistance: 1000 megohms at 25°C
  • IP Rating: IP67
  • Mating Cycle Durability: >100
  • Positions: 12-Way A Position Key
  • Seal Diameter: .053" - .120"
  • Seal Material: Silicone Elastomer
  • Temperature Range: -55°C to +125°C
  • Mating Part(s): AT06-12SA* Plug
  • Wedgelock Part Number : AW12P
  • Wire Range: 14-20 AWG
