AT04-2P-SR01BLK - AT/SR01 Series - 2 Pin Receptacle, Strain Relief W/Endcap, Standard Seal, Black

Sku: AT04-2P-SR01BLK
Vendor: Amphenol
$1.08
Maximum quantity available reached.

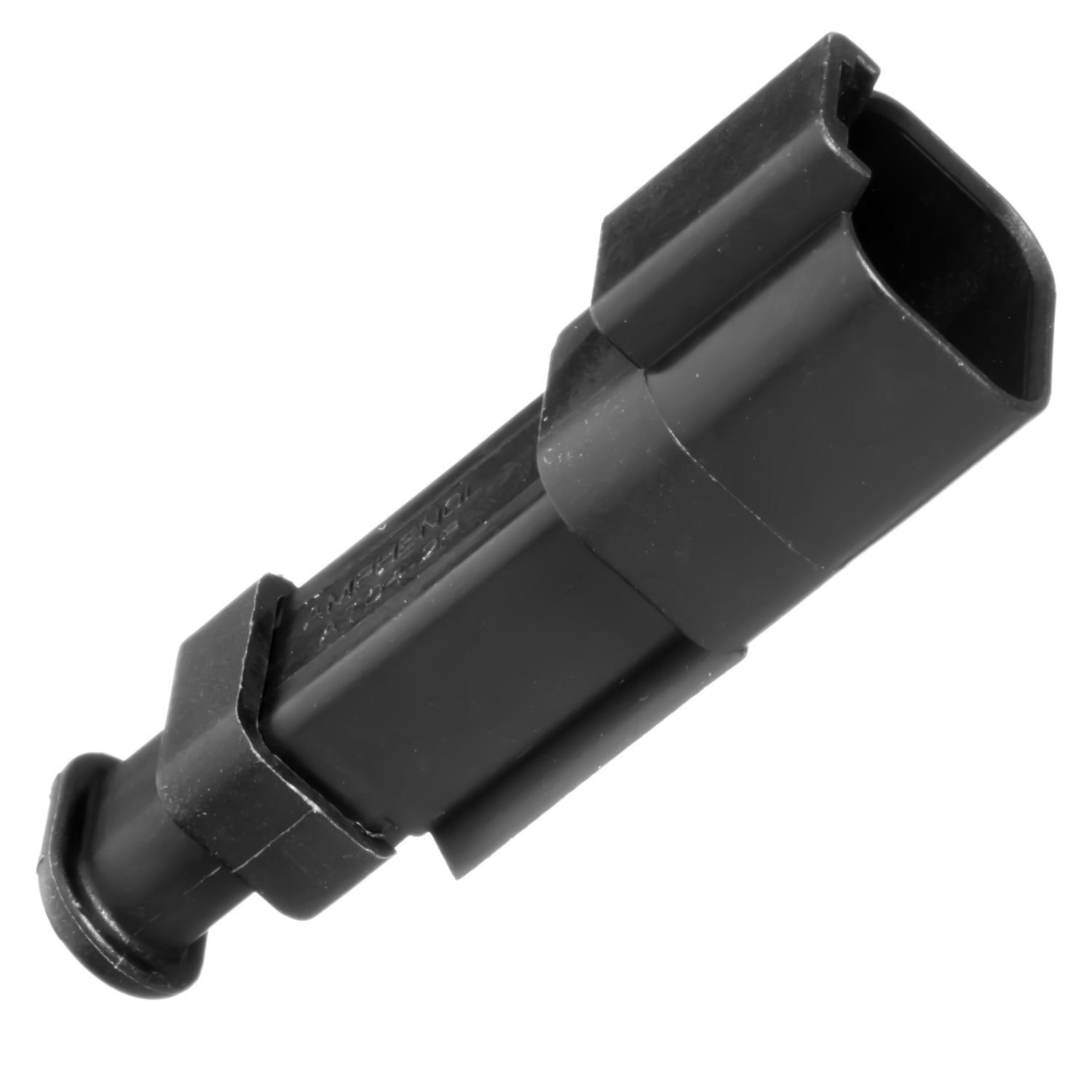

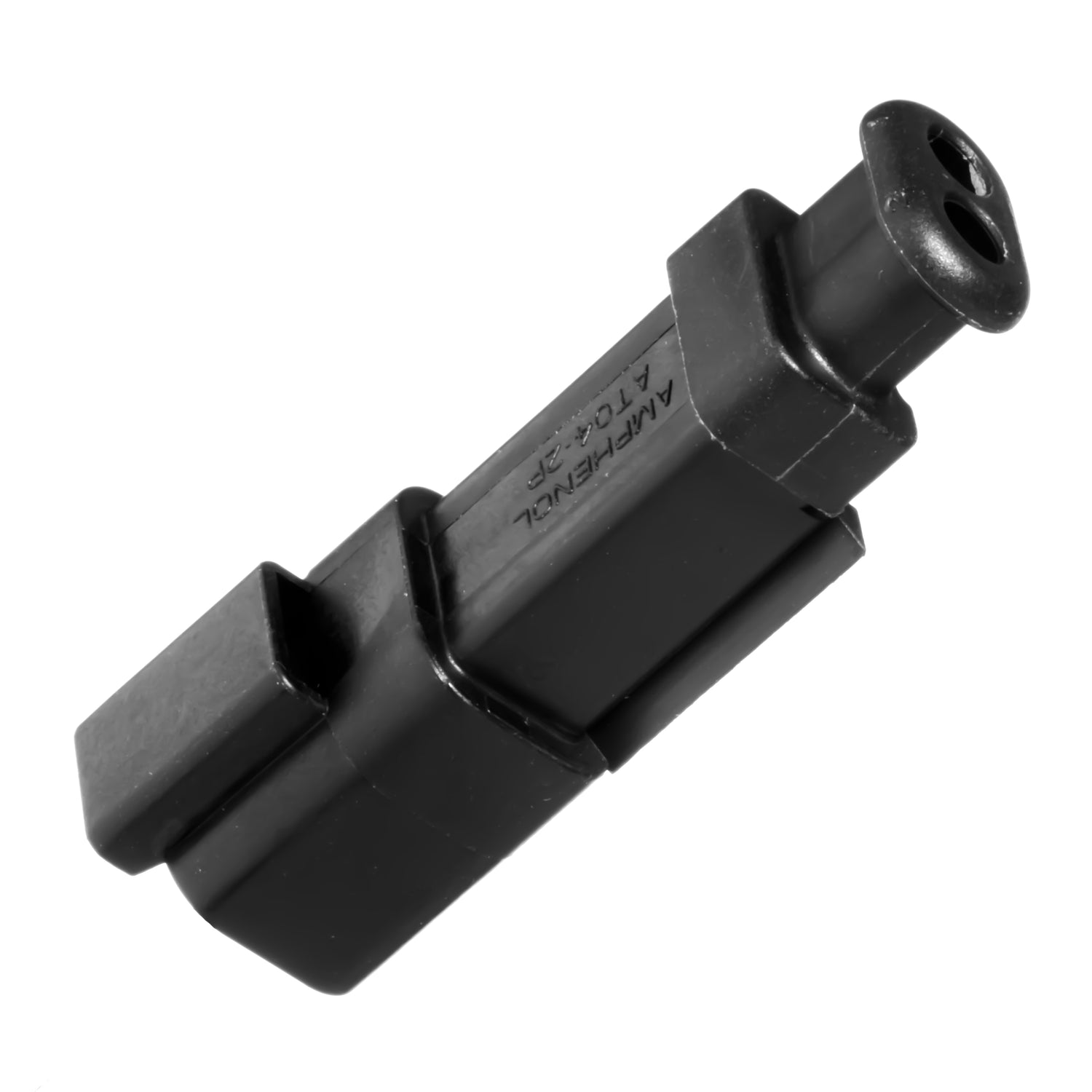

AT04-2P-SR01BLK - Amphenol - Amphenol - AT/SR01 Series, 2 Way, Receptacle, Black

Amphenol AT Strain Relief Series connectors specifically designed wire cavities protect each individual wire seal, eliminating stress on the rear seal. These connectors are a cost effective, high reliable solution for wire routing, strain relief, and sealing issues common in Heavy Duty applications.


Product Specifications

Part Number AT04-2P-SR01BLK
Product Type Receptacle
Color Black
Number of Positions 2- Way
Contact size 16
AWG 16-22
AMP 13
Contact Type Pin
Seal Dimensions 053" - .120"
Mating Part(s) AT06-1S* Plug
Wedgelock Required Yes, AW2P
Wire Range 14-20 AWG
