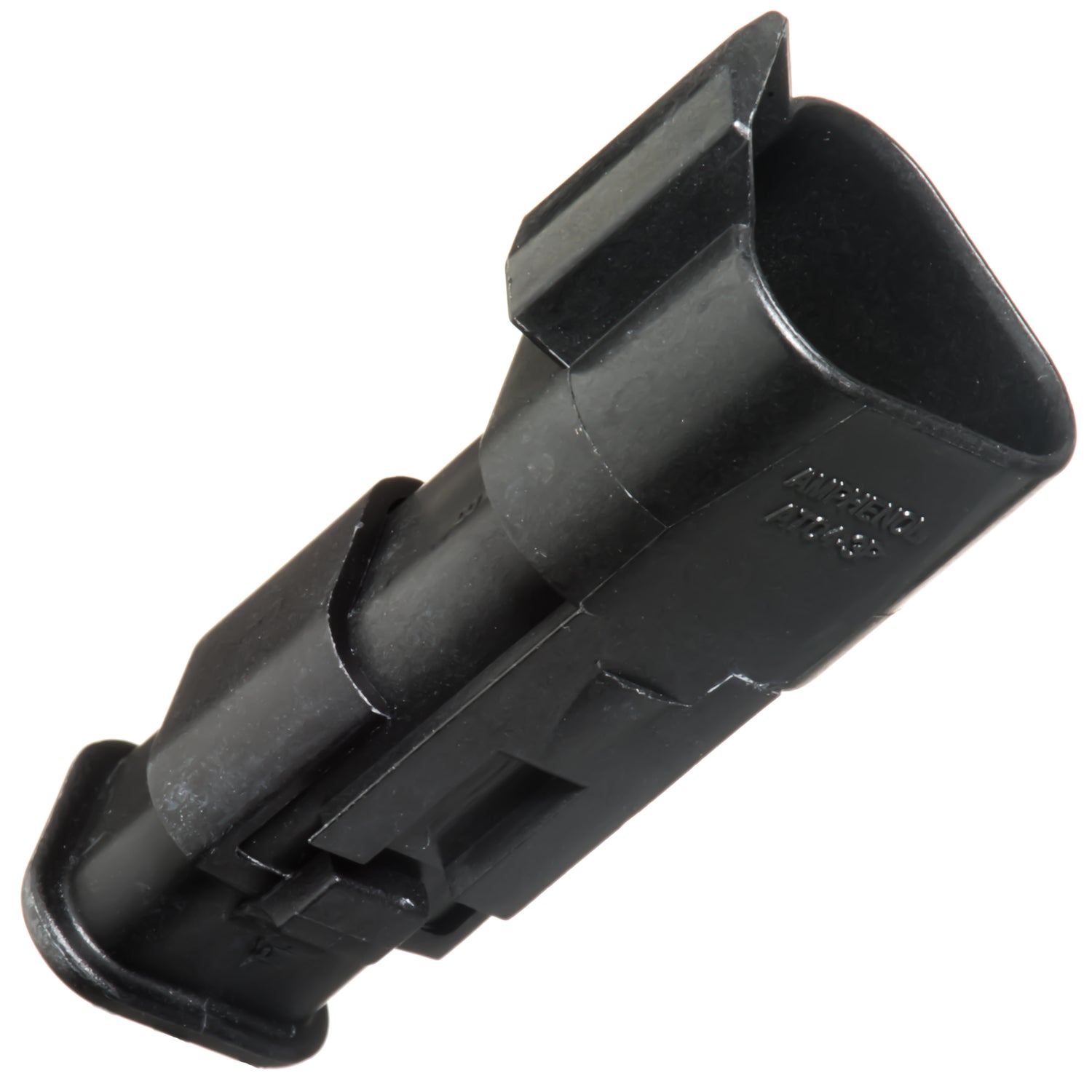

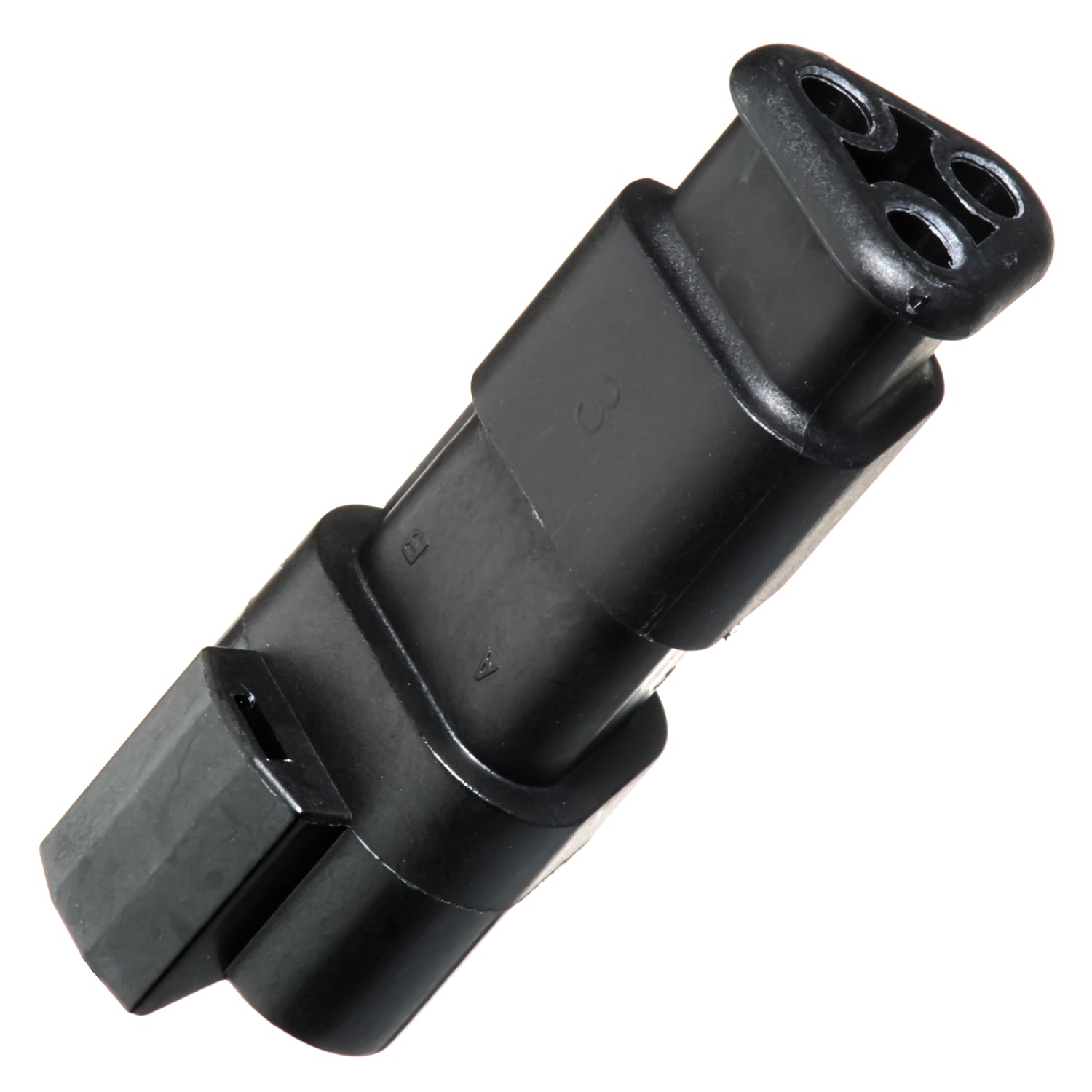

AT04-3P-SR01BLK - AT/SR01 Series - 3 Pin Receptacle - Strain Relief W/Endcap, Standard Seal, Black

Sku: AT04-3P-SR01BLK
Vendor: Amphenol
$1.20
Maximum quantity available reached.

AT04-3P-SR01BLK : Amphenol - Amphenol - AT/SR01 Series, 3 Way, Receptacle, Black

Amphenol AT Strain Relief Series connectors specifically designed wire cavities protect each individual wire seal, eliminating stress on the rear seal. These connectors are a cost effective, high reliable solution for wire routing, strain relief, and sealing issues common in Heavy Duty applications.


Product Specifications

  • Product Type: Receptacle
  • Number of positions: 3-Way
  • Contact Type: Pin
  • Color: Black
  • Contact Size: 16
  • AWG: 16-22
  • AMP: 13
  • Mating Part(s): AT06-3S* Plug
  • Wedgelock Part Number : AW3P
  • Seal Diameter: .088" - .145"
  • Wire Range: 14-20 AWG
