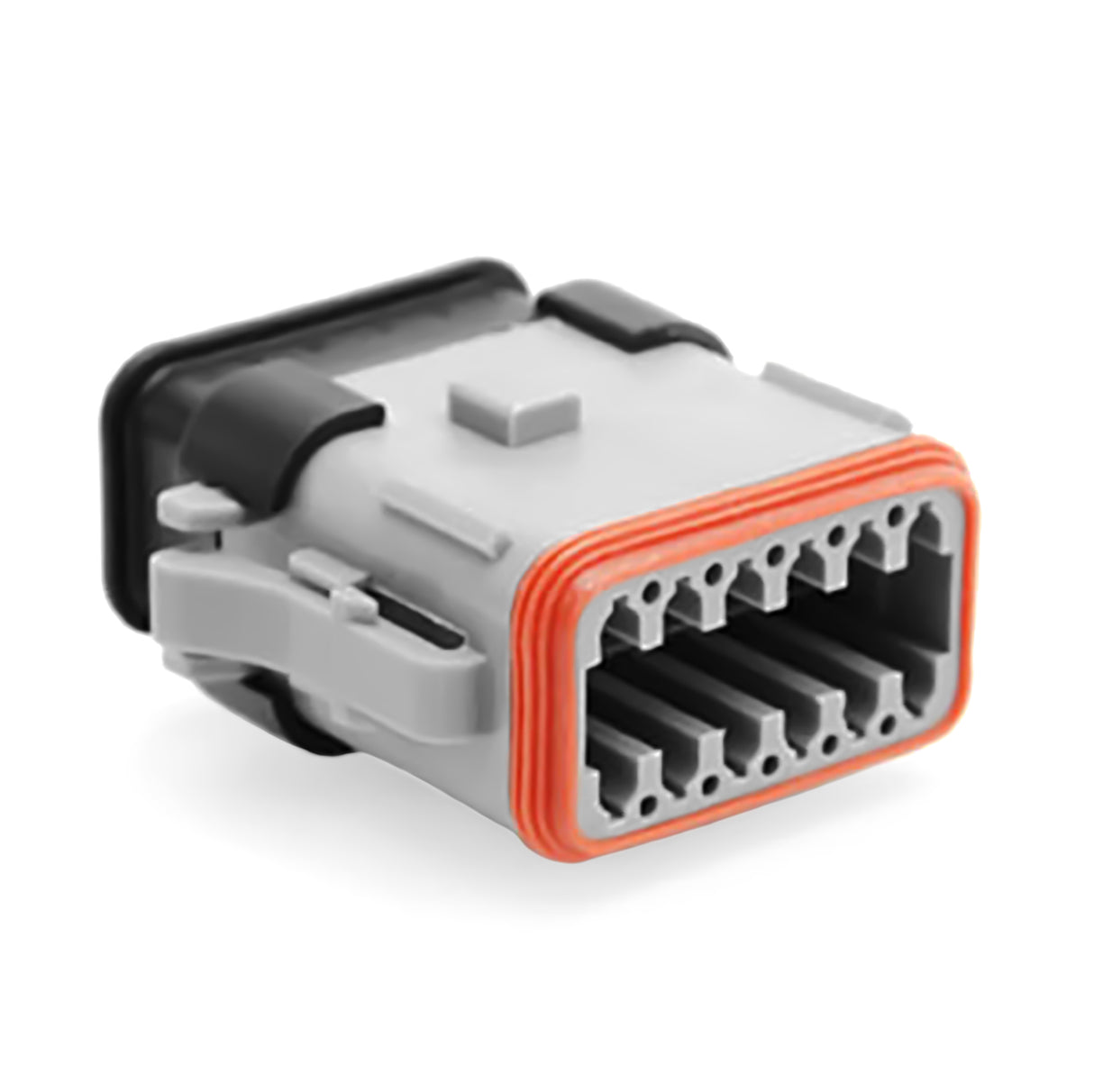

AT06-12SA-SRGRY - AT/SR01 Series - 12 Socket Plug - A Key, Strain Relief W/Endcap, Standard Seal, Gray
Amphenol - AT Series,12 Cavity, Plug
Amphenol AT-Series Connectors are a high-performance, cost effective solution able to be used in a variety of applications including but not limited to: Transportation, Marine, Diagnostic, Military, Energy, and Agriculture.
These connectors are manufactured from durable thermoplastic material with excellent UV resistance, that is RoHS compliant. These connectors are precision engineered with silicone seals to provide positive, weather resistant connections, and to function flawlessly even after hundreds of connect/disconnect cycles.
Amphenol AT Series connectors are compatible with other existing standard products industry-wide.
- Product Type: Plug
- Number of Positions: 12-Way A Position Key
- Contact Size: 16
- AWG: 14-20
- AMP: 13A
- Contact Type: Socket
- Color: Grey
- Mating Part(s): AT04-12PA*
- Wedgelock Part Number: AW12S
- Seal Diameter: .053" - .120"
- Wire Range: 14-20 AWG
* Please note this product requires a wedgelock.
