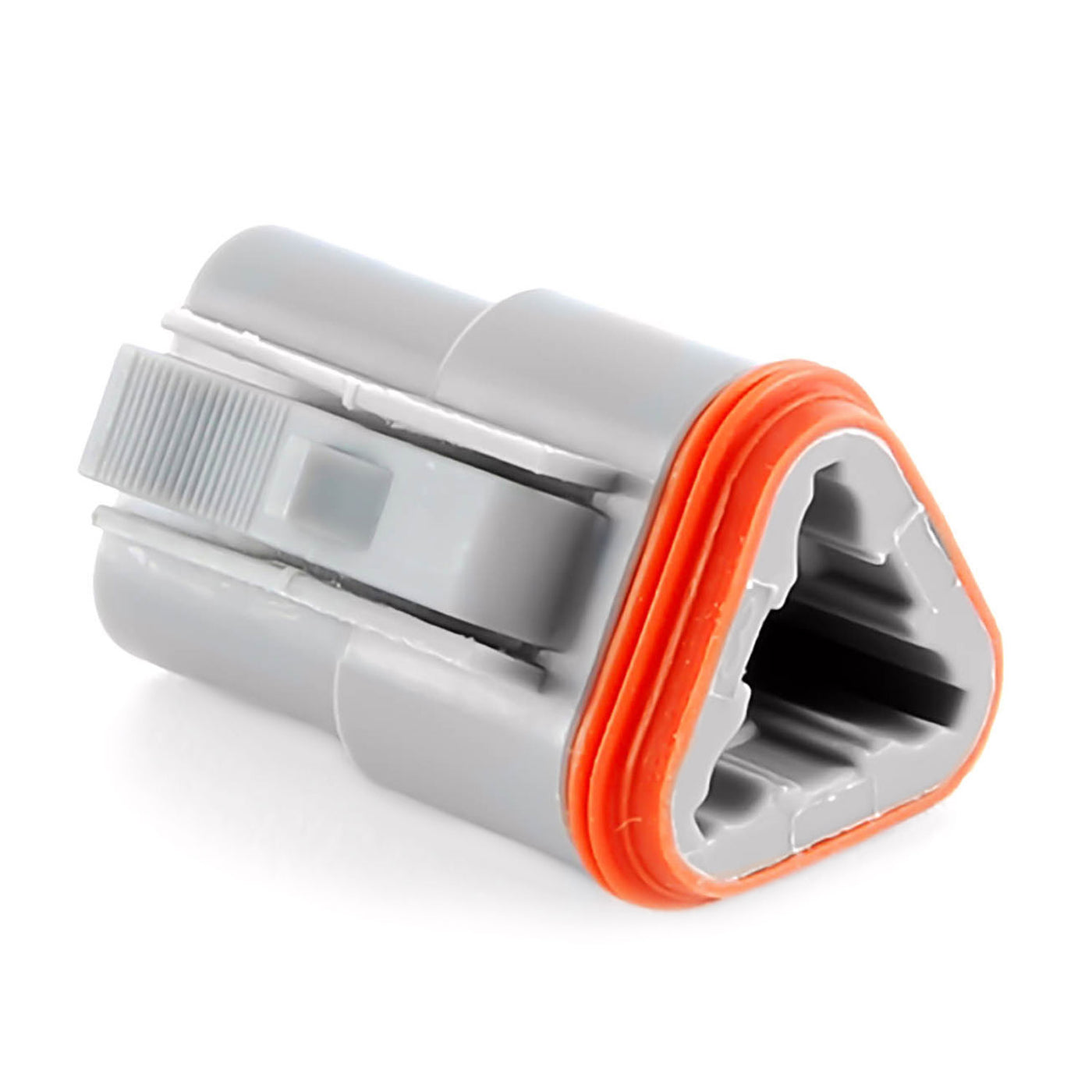

AT06-3S - AT Series - 3 Socket Plug - No Key, Gray

Sku: AT06-3S
Vendor: Amphenol
$0.90
Maximum quantity available reached.

AT06-3S : Amphenol - AT Series, 3 Cavity, Plug

Amphenol AT-Series Connectors are a high-performance, cost effective solution able to be used in a variety of applications including but not limited to: Transportation, Marine, Diagnostic, Military, Energy, and Agriculture.


These connectors are manufactured from durable thermoplastic material with excellent UV resistance, that is RoHS compliant. These connectors are precision engineered with silicone seals to provide positive, weather resistant connections, and to function flawlessly even after hundreds of connect/disconnect cycles.


Amphenol AT Series connectors are compatible with other existing standard products industry-wide.


Product Specifications

Part Number AT06-3S
Product Type Plug
Number of Positions 3-Way
Contact Size 16
AWG 14-20
AMP 13A
Contact Type Socket
Color Gray
End Cap/Rear Seal Dimension  .088" - .145"
Mating Part(s) AT04-3P* Receptacle
Wedgelock AW3S

* Please note this product requires a wedgelock.
