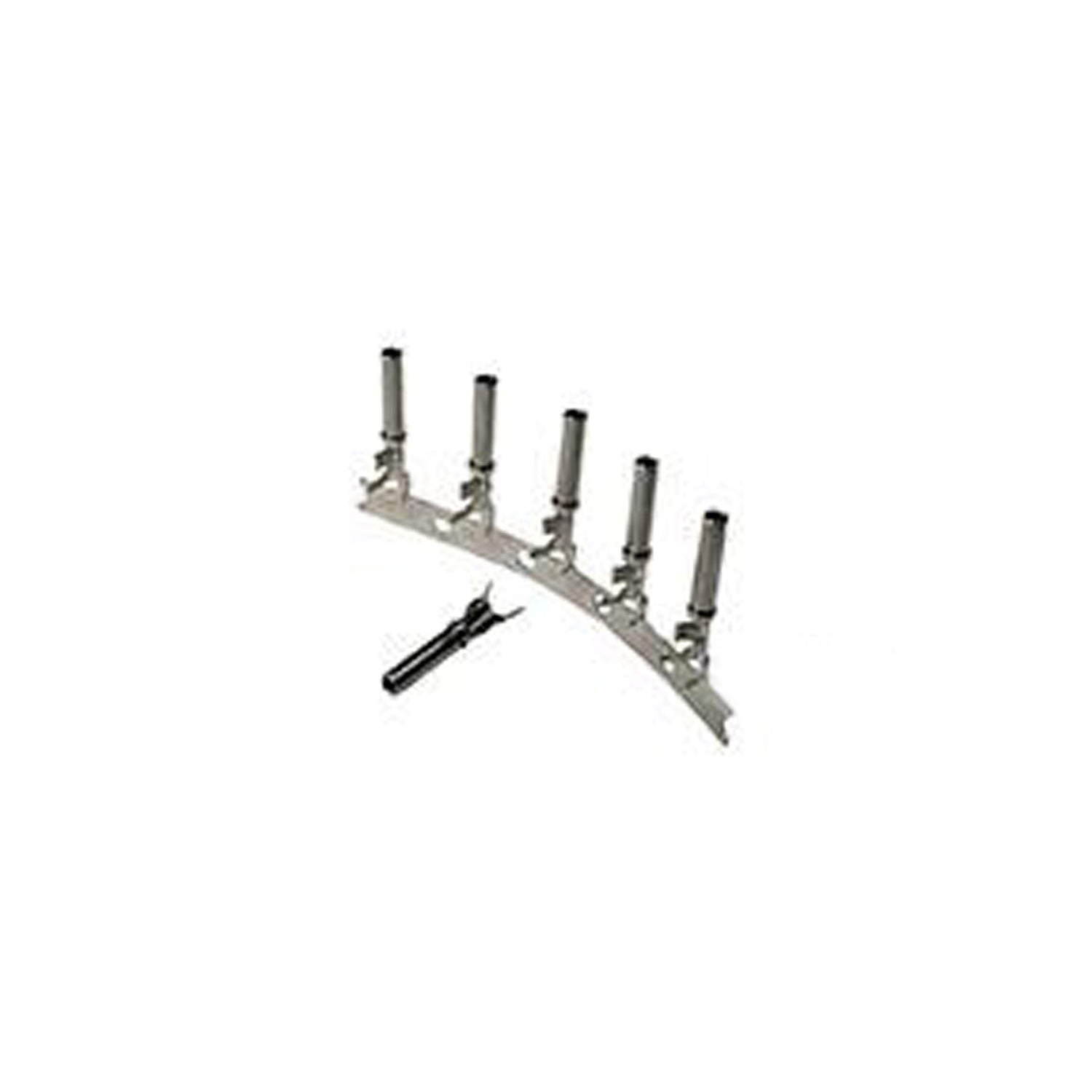

AT62-14-0122 - AT Series - Stamped & Formed Socket - Size 16, 14-18 AWG, .095-.150 Insulation, Nickel Plated

AT62-14-0122 : Amphenol - Socket, Stamped and Formed Size 16, 16-22AWG Nickel

Amphenol AT-Series Connectors are a high-performance, cost effective solution able to be used in a variety of applications including but not limited to: Transportation, Marine, Diagnostic, Military, Energy, and Agriculture.


These connectors are manufactured from durable thermoplastic material with excellent UV resistance, that is RoHS compliant. These connectors are precision engineered with silicone seals to provide positive, weather resistant connections, and to function flawlessly even after hundreds of connect/disconnect cycles.


Amphenol AT Series connectors are compatible with other existing standard products industry-wide.

SPECIFICATIONS:

  • Product Type: Contact
  • Contact Size: 16
  • AWG: 14-16
  • Contact Type: Socket
  • Plating: Nickel
  • Wire Range (AWG): 14-16
  • AMP: 13
