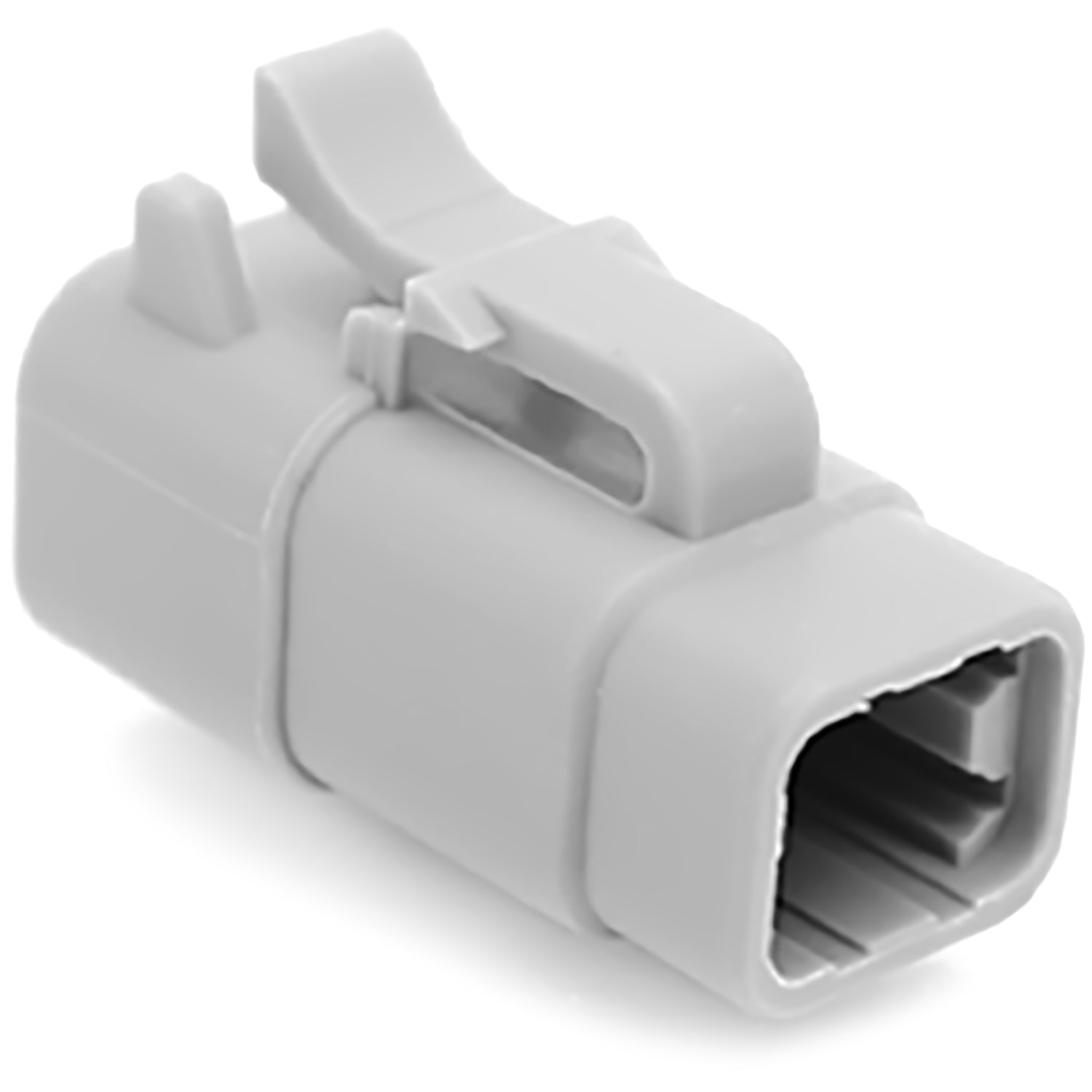

ATM06-4S - ATM Series - 4 Socket Plug - Gray
ATM06-4S : Amphenol - ATM Series, 4 Cavity, Plug
Amphenol ATM-Series Connectors are a high-performance, cost effective solution specifically designed for smaller AWG applications while still maintain the strengths of the AT Series connectors.
These connectors incorporate an integral latching system that ensures a definitive electrical and mechanical connection. The connector housings are manufactured from a environmentally RoHS compliant thermoplastic.
Amphenol ATM Series connectors are compatible with other existing standard products industry-wide.
- Product Type: Plug
- Number of Positions: 4-Way
- Contact Size: 20
- AWG: 16-22
- AMP: 7.5A
- Contact Type: Socket
- Color: Grey
- Mating Part(s): ATM04-4P* Receptacle
- Wedgelock Part Number : AWM-4S
- Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
- Wire Range: 16-22 AWG
* Please note this product requires a wedgelock.
