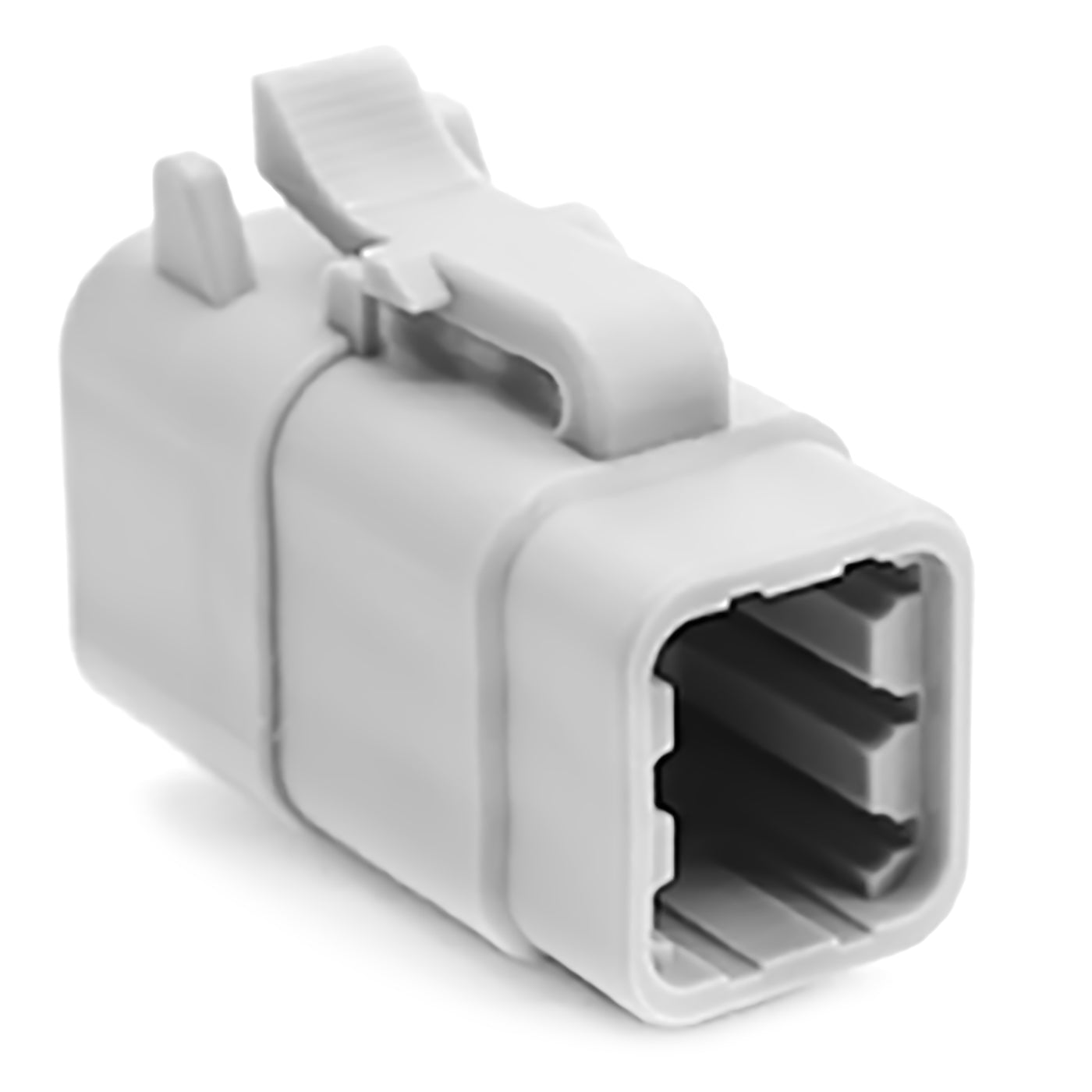

ATM06-6S - ATM Series - 6 Socket Plug - Gray

Sku: ATM06-6S
Vendor: Amphenol
$1.68
Maximum quantity available reached.

ATM06-6S - Amphenol - ATM Series, 6 Cavity, Plug

Amphenol ATM-Series Connectors are a high-performance, cost effective solution specifically designed for smaller AWG applications while still maintain the strengths of the AT Series connectors.


These connectors incorporate an integral latching system that ensures a definitive electrical and mechanical connection. The connector housings are manufactured from a environmentally RoHS compliant thermoplastic.


Amphenol ATM Series connectors are compatible with other existing standard products industry-wide.


Product Specifications

  • Product Type: Plug
  • Number of Positions: 6-Way
  • Contact Size: 20
  • AWG: 16-22
  • AMP: 7.5A
  • Contact Type: Socket
  • Color: Grey
  • Mating Part(s): ATM04-6P* Receptacle
  • Wedgelock Part Number : AWM-6S
  • Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
  • Wire Range: 16-22 AWG

* Please note this product requires a wedgelock.
