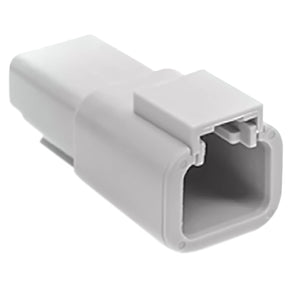

ATP04-2P - ATP Series - 2 Pin Receptacle - Gray

Sku: ATP04-2P
Vendor: Amphenol
$2.21
Maximum quantity available reached.

ATP04-2P : Amphenol ATP 2 Cav Receptacle

Amphenol ATP-Series Connectors are designed as a high-performance, cost-effective, thermoplastic solution to be used within Marine, Heavy Equipment, Agricultural, Automotive, and Energy industrials.


Amphenol ATP Series connectors are compatible with other existing standard products industry-wide.


Product Specifications

  • Product Type: Receptacle
  • Number of positions: 2-Way
  • Contact Size: 12
  • AWG: 10-14
  • AMP: 25A
  • Contact type: Pin
  • Color: Grey
  • Seal Wire Range (mm): 3.40 - 4.95
  • Mating Part(s): ATP06-2S* Plug
  • Wedgelock Part Number : AWP-2P
  • Seal Diameter: 3.40mm(.134") - 4.95mm(.195")
  • Wire Range: 10-14 AWG

* Please note this product requires a wedgelock.
