ATP04-4P - ATP Series - 4 Pin Receptacle - Gray

Sku: ATP04-4P
Vendor: Amphenol
$3.88
Maximum quantity available reached.

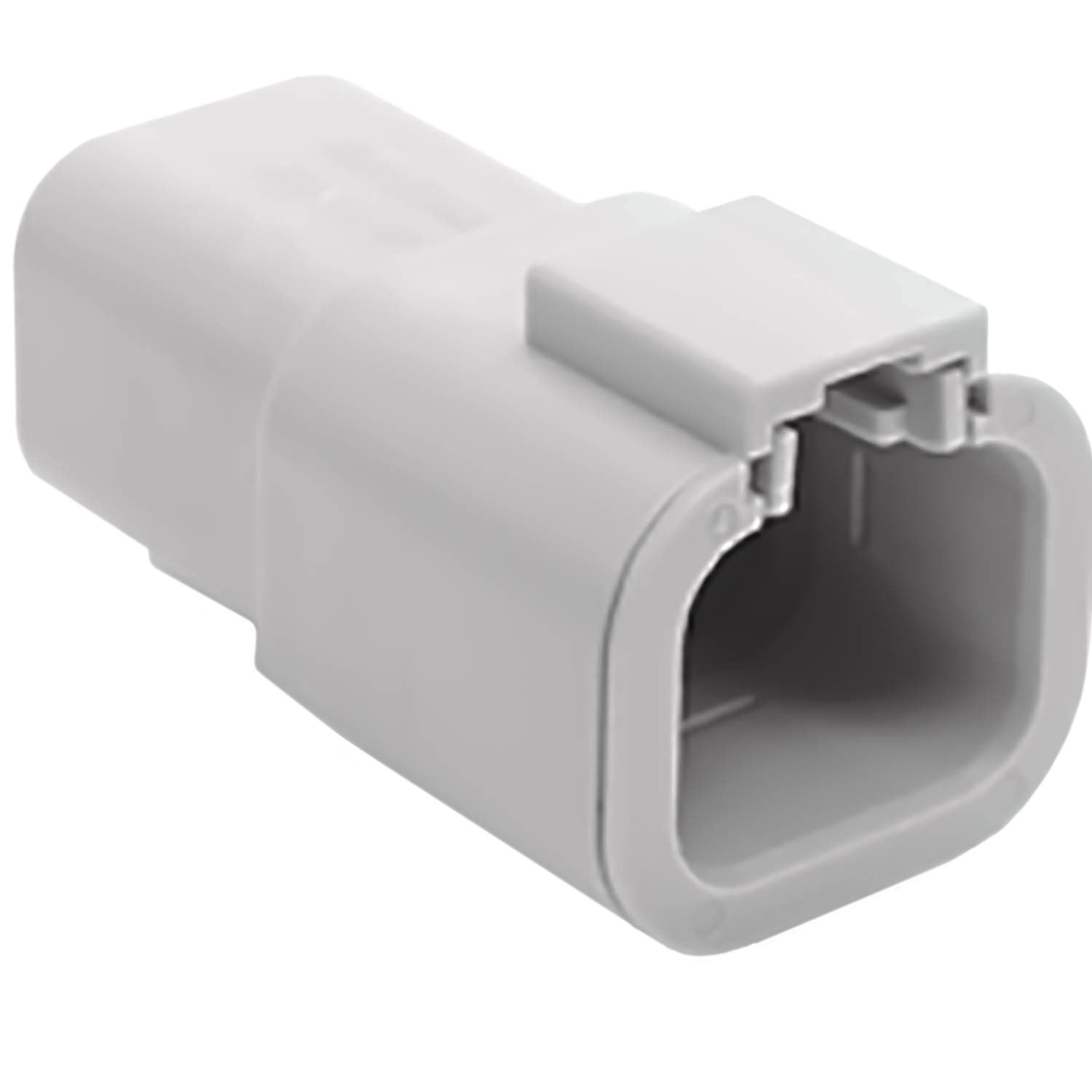

ATP04-4P : Amphenol ATP 4 Cav Receptacle

Amphenol ATP-Series Connectors are designed as a high-performance, cost-effective, thermoplastic solution to be used within Marine, Heavy Equipment, Agricultural, Automotive, and Energy industrials.


Amphenol ATP Series connectors are compatible with other existing standard products industry-wide.


Product Specifications

  • Product Type: Receptacle
  • Number of positions: 4-Way
  • Contact Size: 12
  • AWG: 10-14
  • AMP: 25A
  • Contact type: Pin
  • Color: Grey
  • Seal Wire Range (mm): 3.40 - 4.95
  • Mating Part(s): ATP06-4S* Plug
  • Wedgelock Part Number: AW-4P
  • Seal Diameter: 3.40mm(.134") - 4.95mm(.195")
  • Wire Range: 10-14 AWG

* Please note this product requires a wedgelock.
