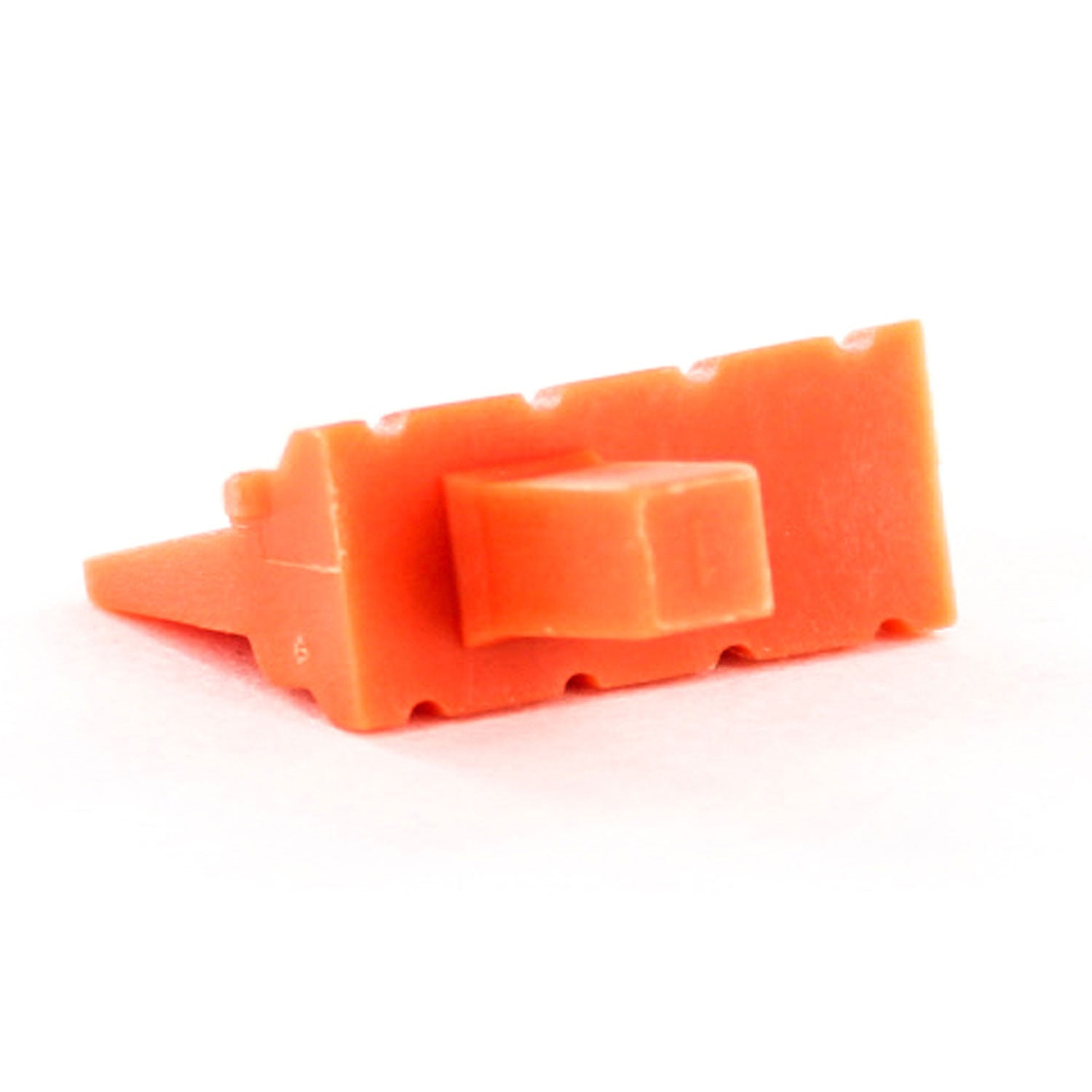

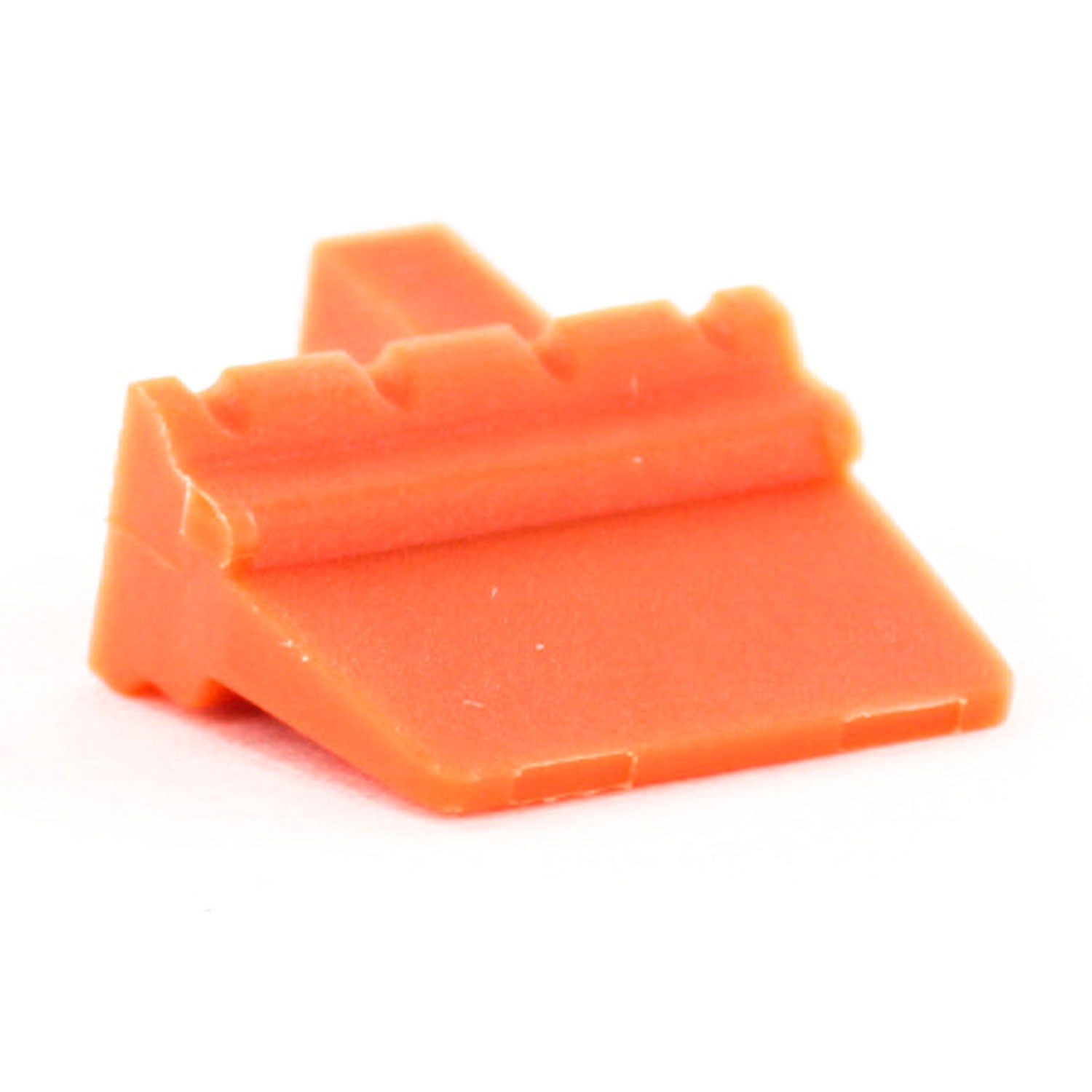

AWM-8P - ATM Series - Wedgelock for 8 Pin Receptacle - Orange
AWM-8P : Amphenol- ATM Series, 8 Cavity, Receptacle Wedgelock
Amphenol ATM-Series Connectors are a high-performance, cost effective solution specifically designed for smaller AWG applications while still maintain the strengths of the AT Series connectors.
These connectors incorporate an integral latching system that ensures a definitive electrical and mechanical connection. The connector housings are manufactured from a environmentally RoHS compliant thermoplastic.
Amphenol ATM Series connectors are compatible with other existing standard products industry-wide.
- Product Type: Receptacle
- Number of Positions: 8-Way
- Contact Size: 20
- AWG: 16-22
- AMP: 7.5A
- Contact Type: Pin
- Color: Orange
- Mating Part(s): ATM04-08P* Receptacle
