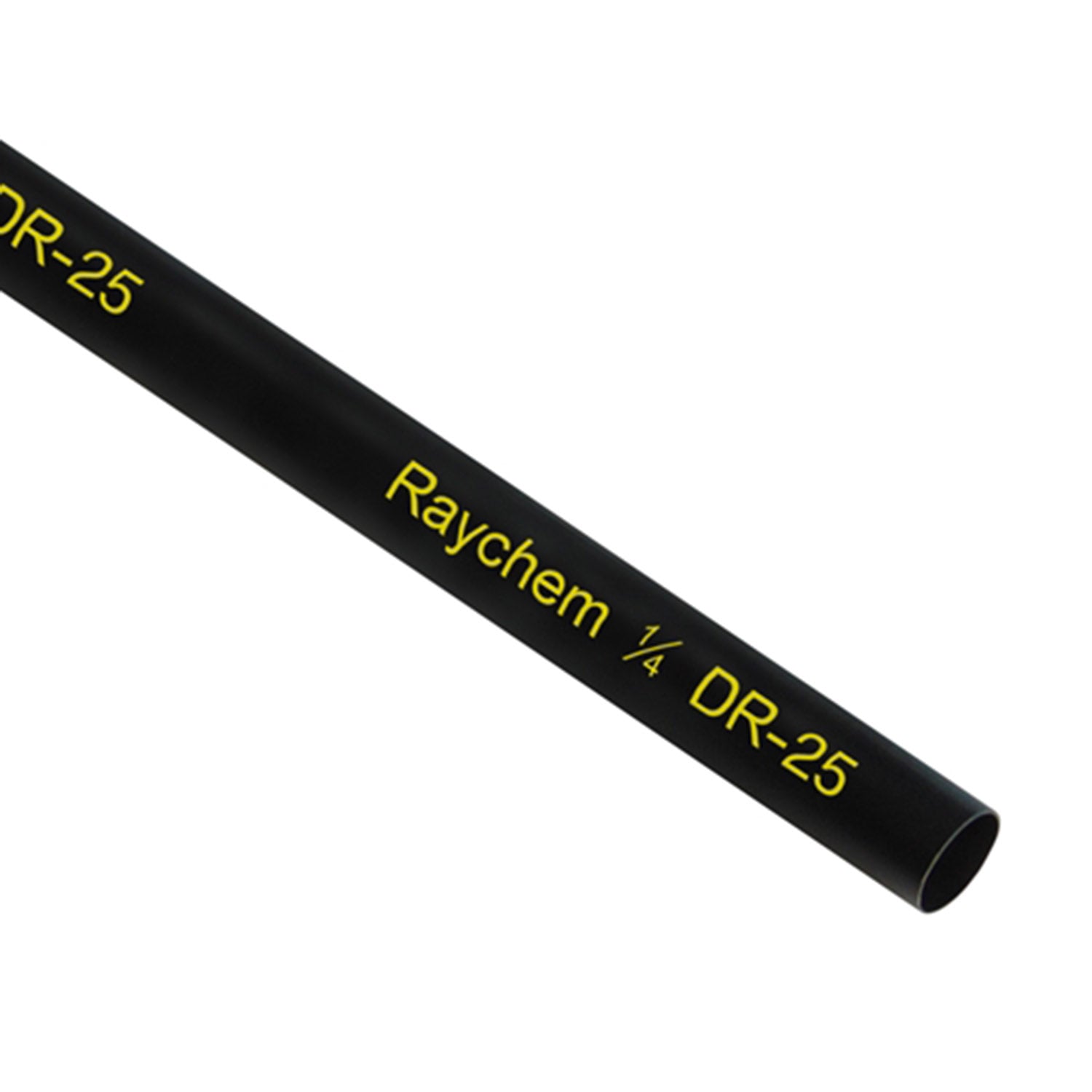

DR-25-1/4-0 - RAYCHEM® DR25 HEATSHRINK TUBING - 1/4" - BLACK W/ YELLOW PRINT

Sku: DR-25-1/4-0-5FT
Vendor: Raychem®
$15.65
Maximum quantity available reached.

Raychem® DR25 Diesel Resistant Heatshrink

Specially formulated for optimum high temperature fluid resistance, and long term heat resistance. Resistant to aviation and diesel fuels, hydraulic fluids and lubricating oils. Particularly suitable as a jacketing material for military ground vehicle cables and harnesses. It is also ideally suited for the demands of motorsport cable harnesses. When used in conjunction with System 25 heat-shrinkable molded shapes and S1125 high performance adhesive, these products provide a complete cable harness system.

SHRINK RATIO: 2:1

MIN SHRINK TEMP: 150°C [302°F]

MIN FULL RECOVERY TEMP: 175°C [347°F]

OPERATING TEMP RANGE: -75°C to 150°C [-103°F to 302°F] (per VG 95343 Part 5 Type D)

COLORS: Black w/ Yellow
