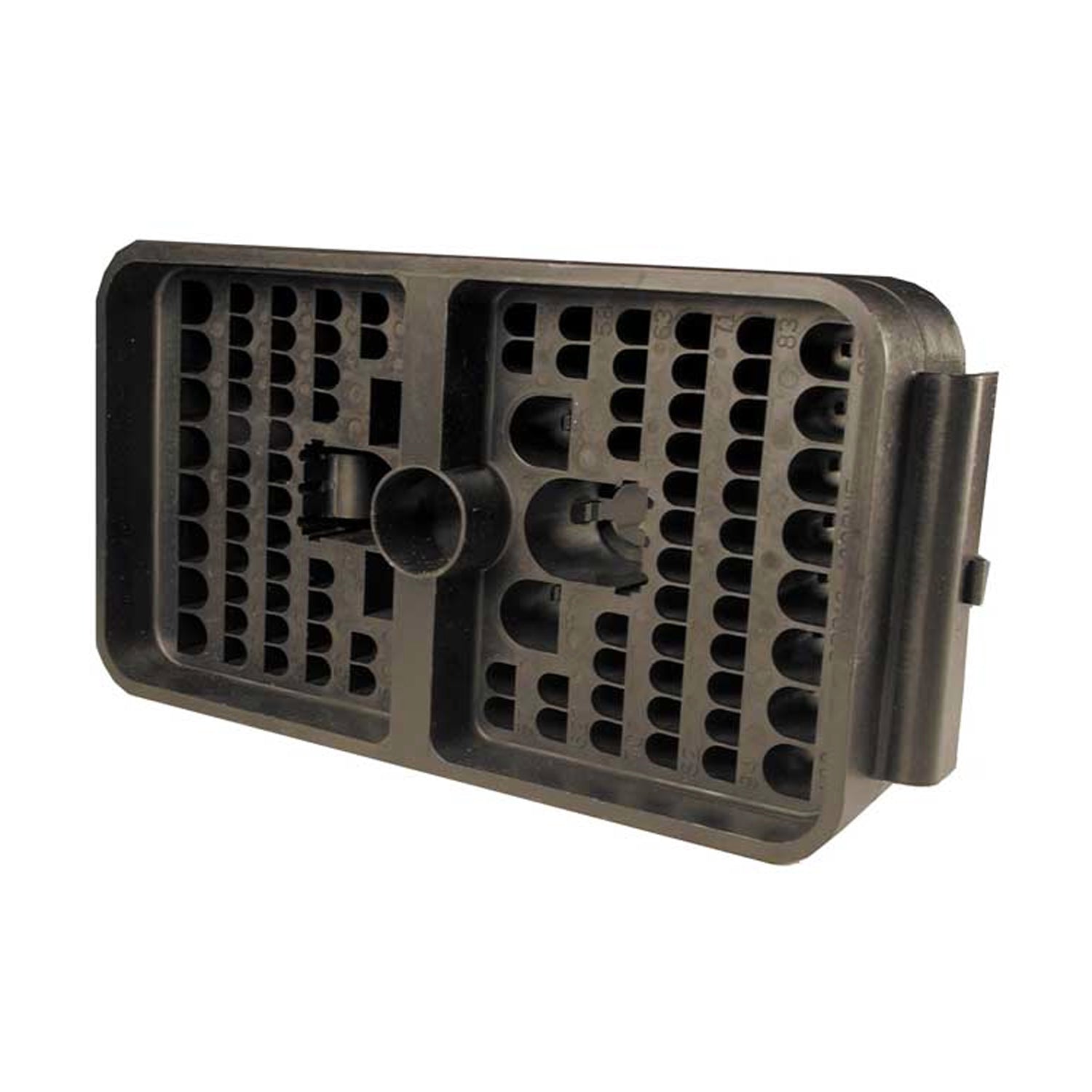

DRB12-102PANE - DRB Series - 102 Pin Receptacle - Flange, Non-environmentally Sealed, A Key, Black

Sku: DRB12-102PANE
Vendor: Deutsch
$19.22
Maximum quantity available reached.
Deutsch Logo

Deutsch DRB Series

Deutsch DRB series connectors are high density pin count rectangular connectors engineered for environments where moisture, dirt and rough terrain can contaminate or damage electrical connections. The high performance thermoplastic body utilizes a bulkhead mounted flange to create a tight environmental seal. Shock, vibration and high-temp resistant, the DRB series connectors are ideally suited for firewall mounted pass-through applications.

The DRB Series connectors are heavy duty connectors ideal for bulkhead applications. They are designed to accommodate multiple wire gauges and feature high pin counts, including 48, 60, 102, and 128 cavities. To increase the design flexibility, the DRB Series offers several mounting flange options and wire arrangements. The DRB Series is perfectly suited for on and off highway applications, marine, industrial, and agriculture markets in harsh environments.

Part Number DRB12-102PANE
Series DRB Series
Wire Size 6, 8, 10, 12, 14, 16, 18, 20
Required Wedgelock WB51PAL and WB-51PAR
Keyed yes, A Key
Color Black
Material
Plastic
Shape Rectangular
Connector Style Receptacle
Cavities 102
Contact Size 4, 8, 12, 16
Special Features Non-environmentally sealed
Current rating 100, 60, 25, 13
Holds Pin/Socket Pin
Flange/In-line- PCB Mount Flange
