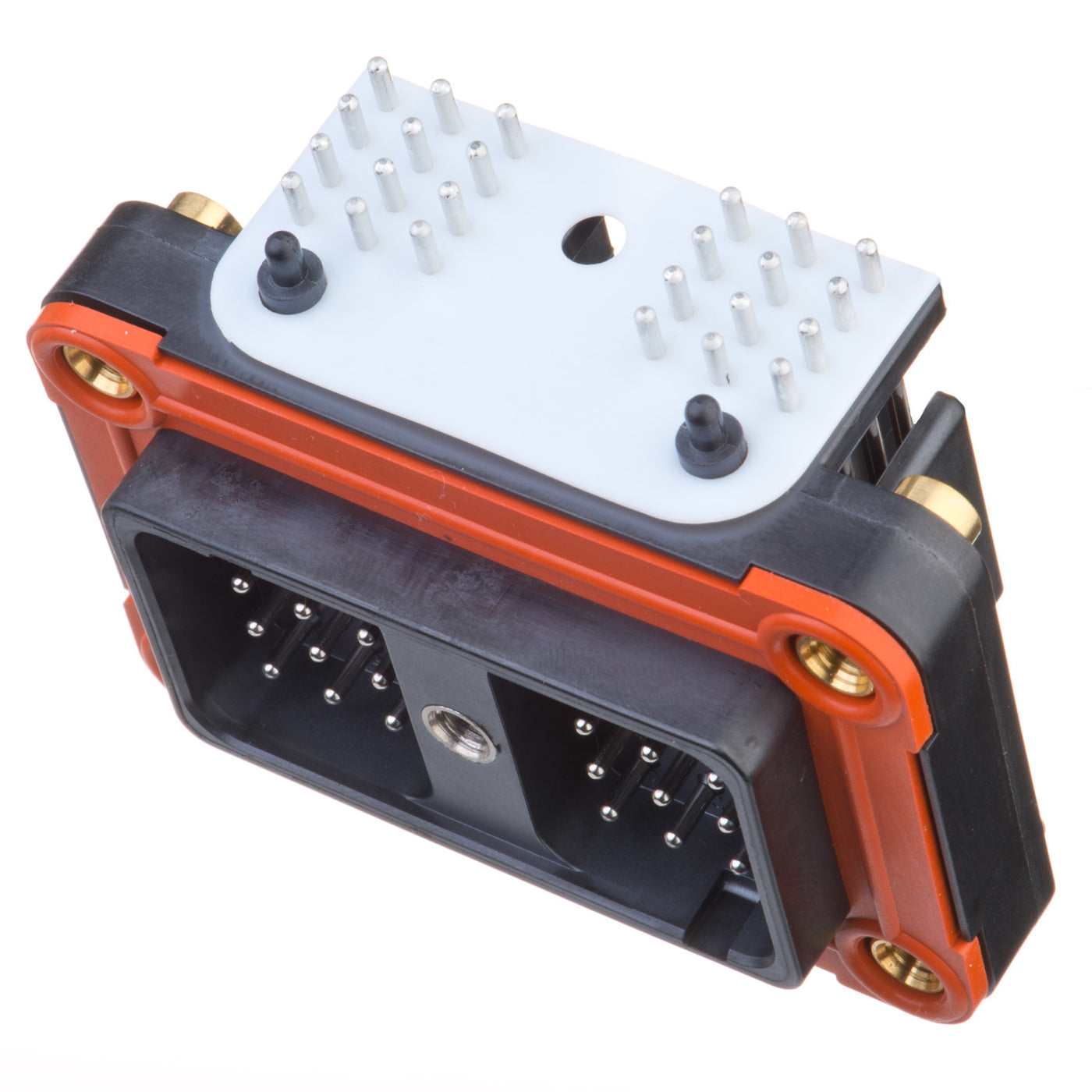

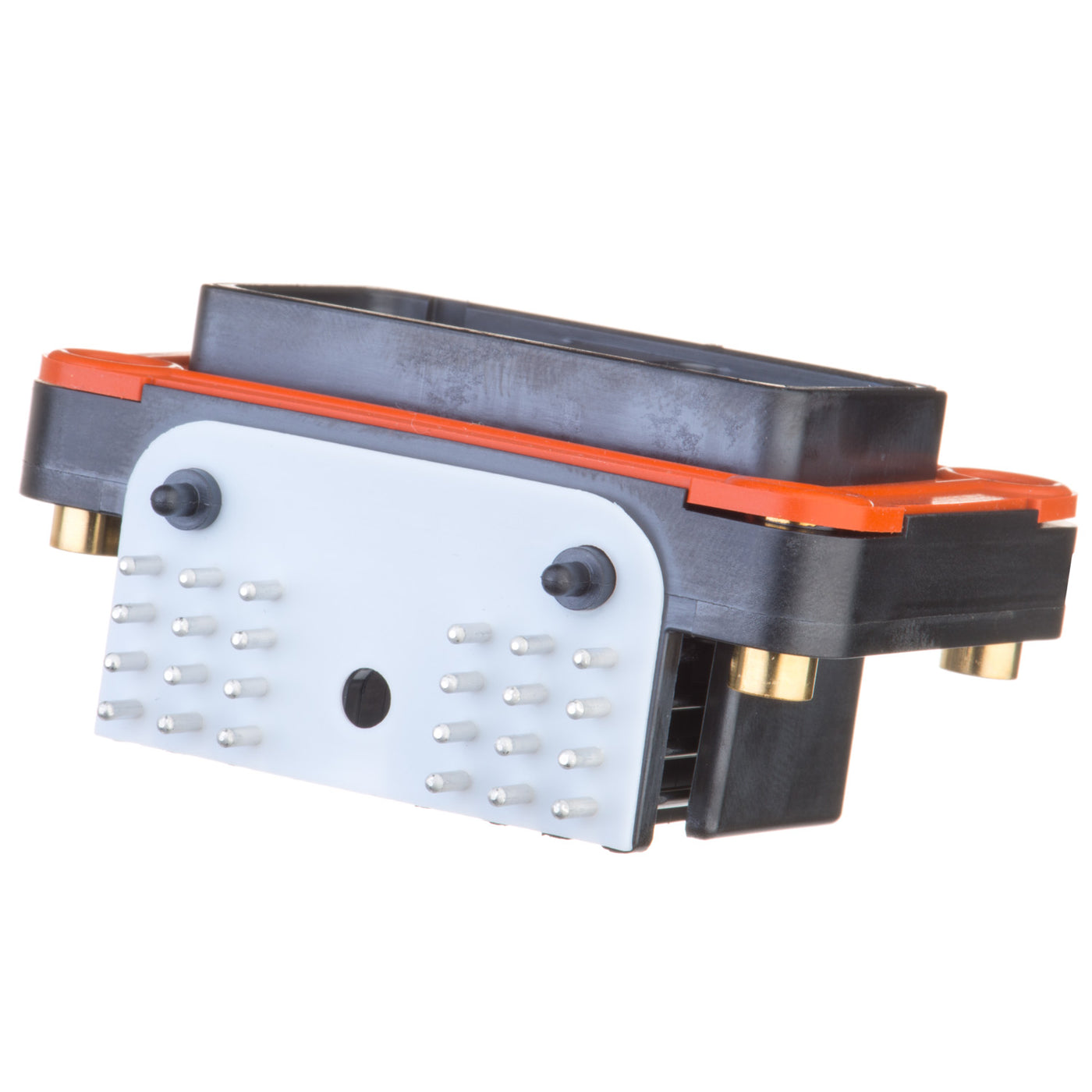

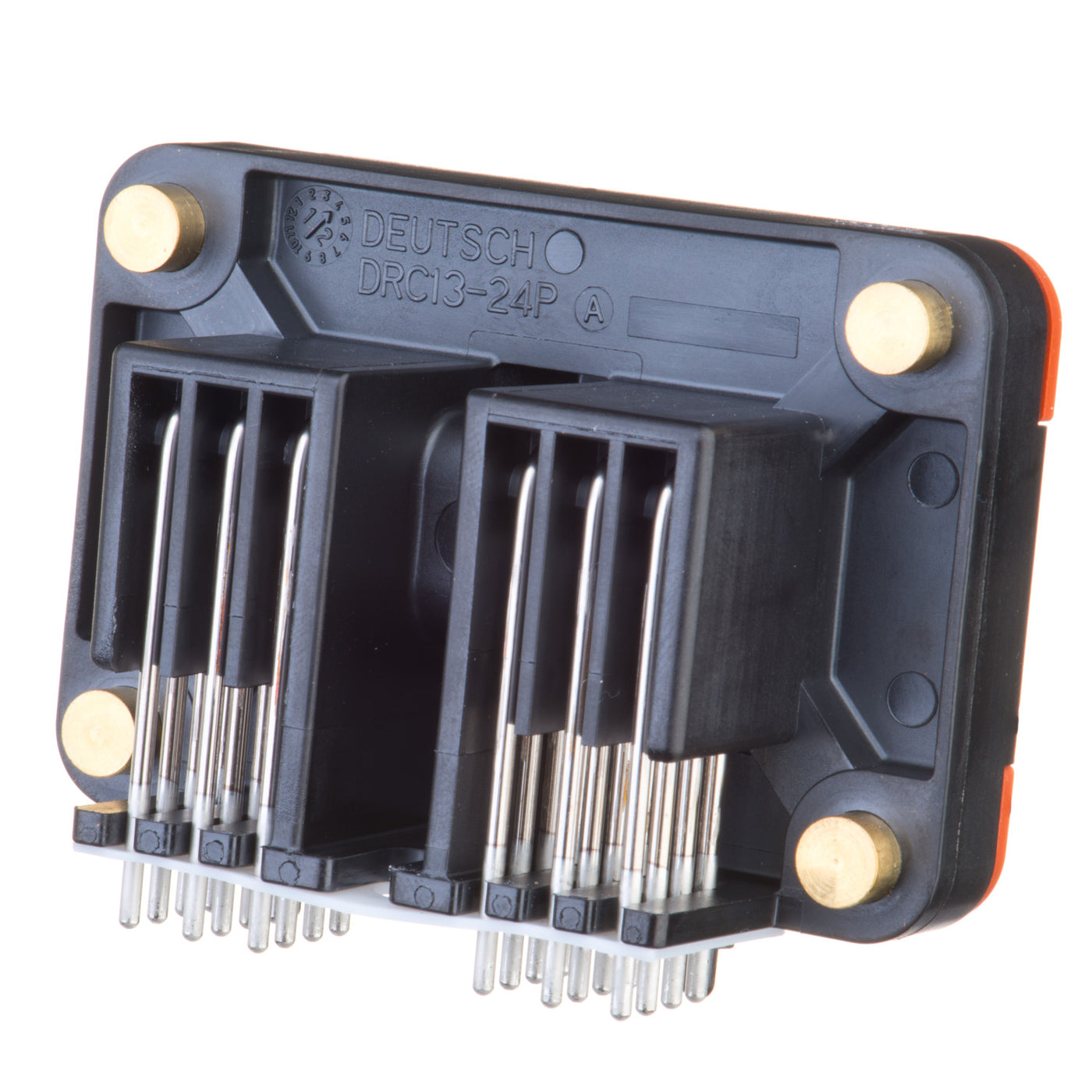

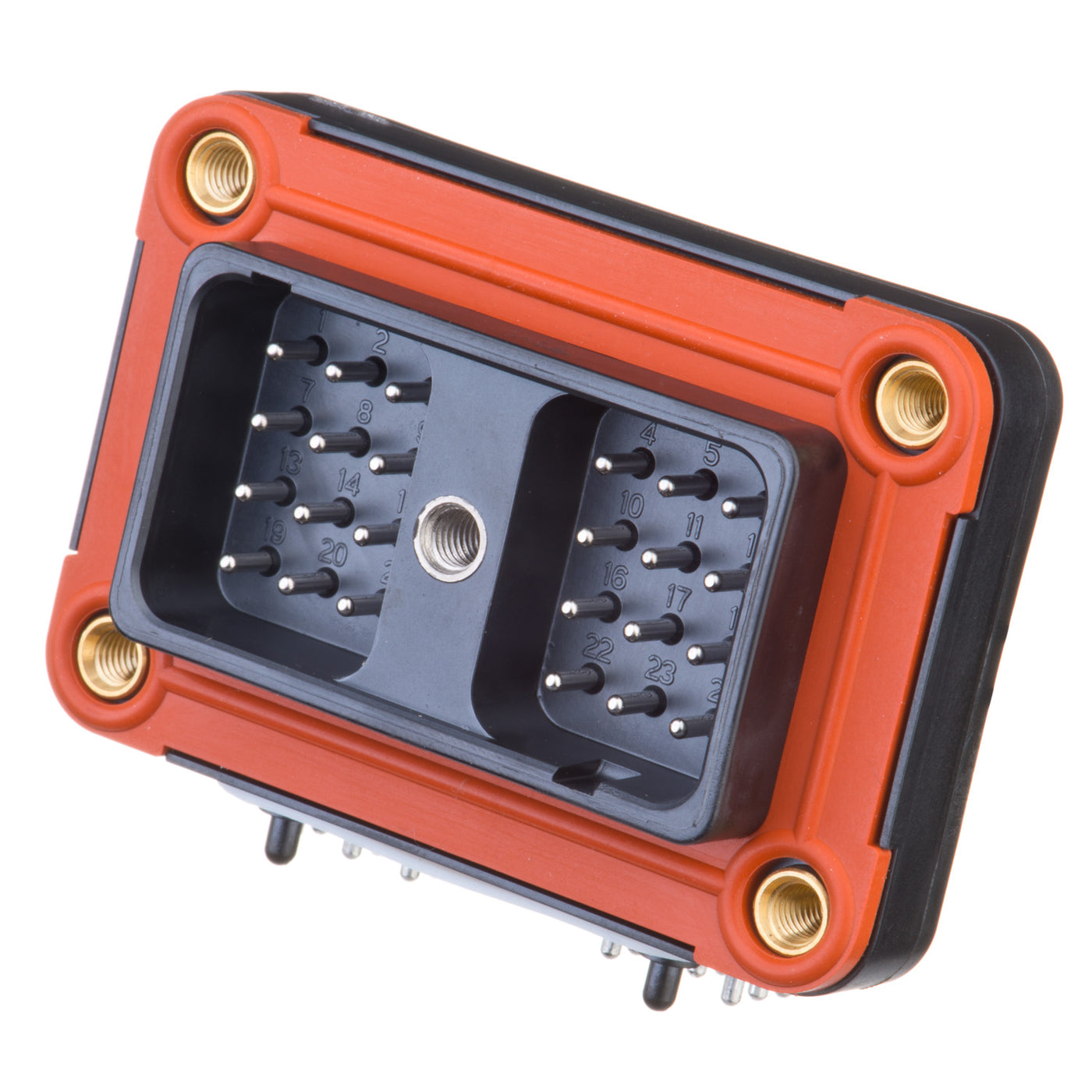

DRC13-24PA - DRC Series - 24 Pin Receptacle - A Key, 90° Molded Pins, PCB, Black

Sku: DRC13-24PA
Vendor: Deutsch
$29.50
Maximum quantity available reached.
Deutsch Logo

Deutsch DRC Series

DRC series connectors are high density pin count rectangular connectors specifically designed for environments where moisture, dirt and rough terrain can contaminate or damage electrical connections.

The DRC13-24PA accepts 24 size 16 contacts rated at 13 amps each. The high-performance thermoplastic body includes an integral flange for environmentally sealed bulkhead mounting. With seals and grommets that will withstand high engine and transmission temperatures, the DRC13-24PA is ideally suited for internally or externally mounted electronic modules. The DRC13-24PA is shock and vibration resistant, and meets all the standard specifications for the heavy-duty DEUTSCH product line.

Part Number
DRC13-24PA
Series DRC Series
Wire Size 16
Keyed Yes, A Key
Color Black
Material Plastic
Shape Rectangular
Connector Style Receptacle
Cavities 24
Contact Size 16
Special Features 90° molded pins
Current Rating 13
Holds Pin/Socket Pin
Flange/In-line/PCB Mount PCB
