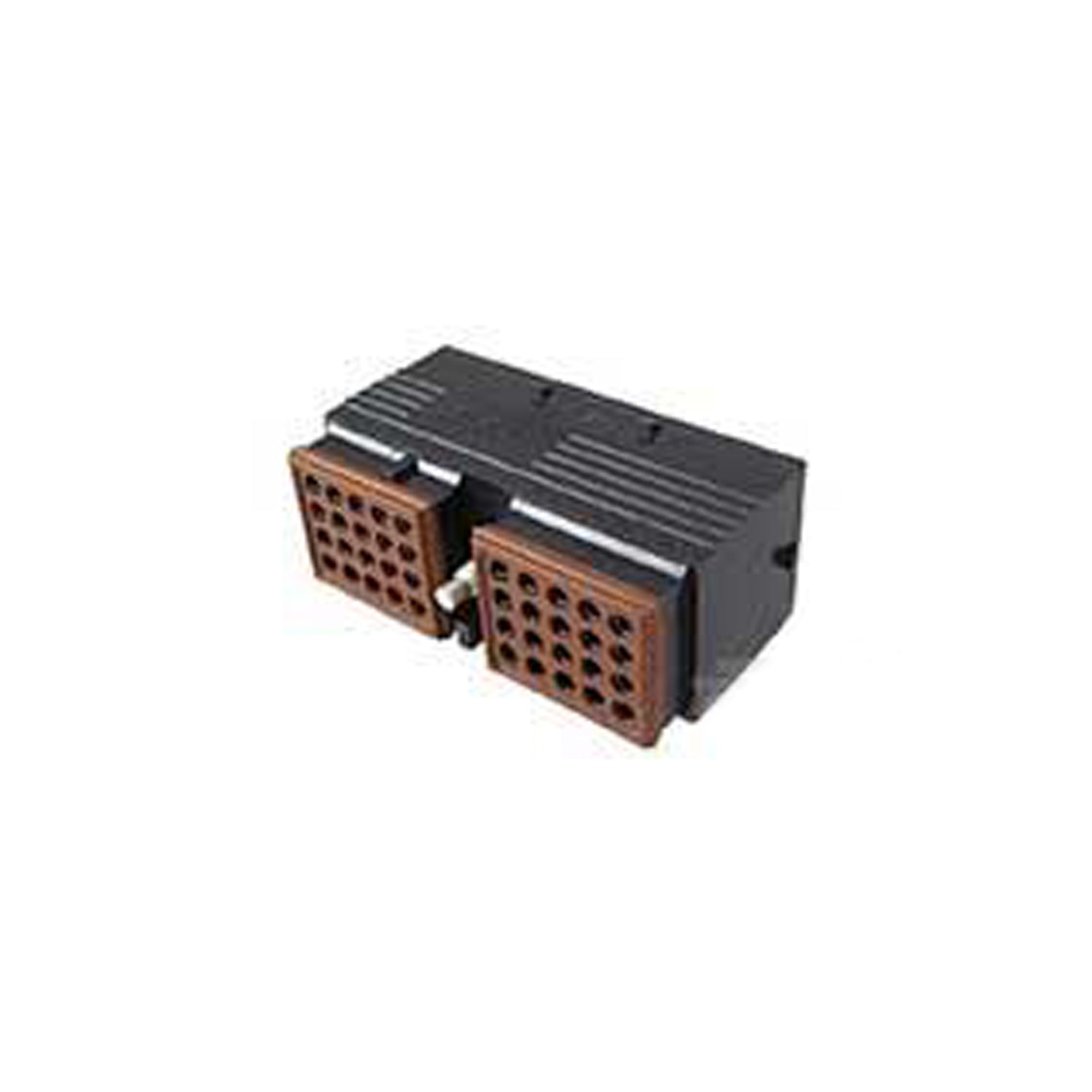

DRC18-40SB-P013 - DRC Series - 40 Socket Plug - B Key, Bonded Front Seal, In-Line, Black

Product Image
Sku: DRC18-40SB-P013
Vendor: Deutsch
$48.44
Maximum quantity available reached.
Deutsch Logo

Deutsch DRC Series

DRC series connectors are high density pin count rectangular connectors specifically designed for environments where moisture, dirt and rough terrain can contaminate or damage electrical connections.

The DRC18-40SB accepts 40 size 16 contacts rated at 13 amps each. The high-performance thermoplastic body includes an integral flange for environmentally sealed bulkhead mounting. With seals and grommets that will withstand high engine and transmission temperatures, the DRC18-40SB is ideally suited for internally or externally mounted electronic modules. The DRC18-40SB is shock and vibration resistant, and meets all the standard specifications for the heavy-duty DEUTSCH product line.

 Part Number DRC18-40SB-P013
Series
DRC Series
Wire Size 14, 16, 18, 20
Keyed yes, B key
Color Black
Material Plastic
Shape Rectangular
Connector Style Plug
Cavities 40
Contact Size 16
Current Rating 13
Holds Pin/Socket Socket
Modification Bonded Front Seal
Flange/In-line/PCB Mount In-line
