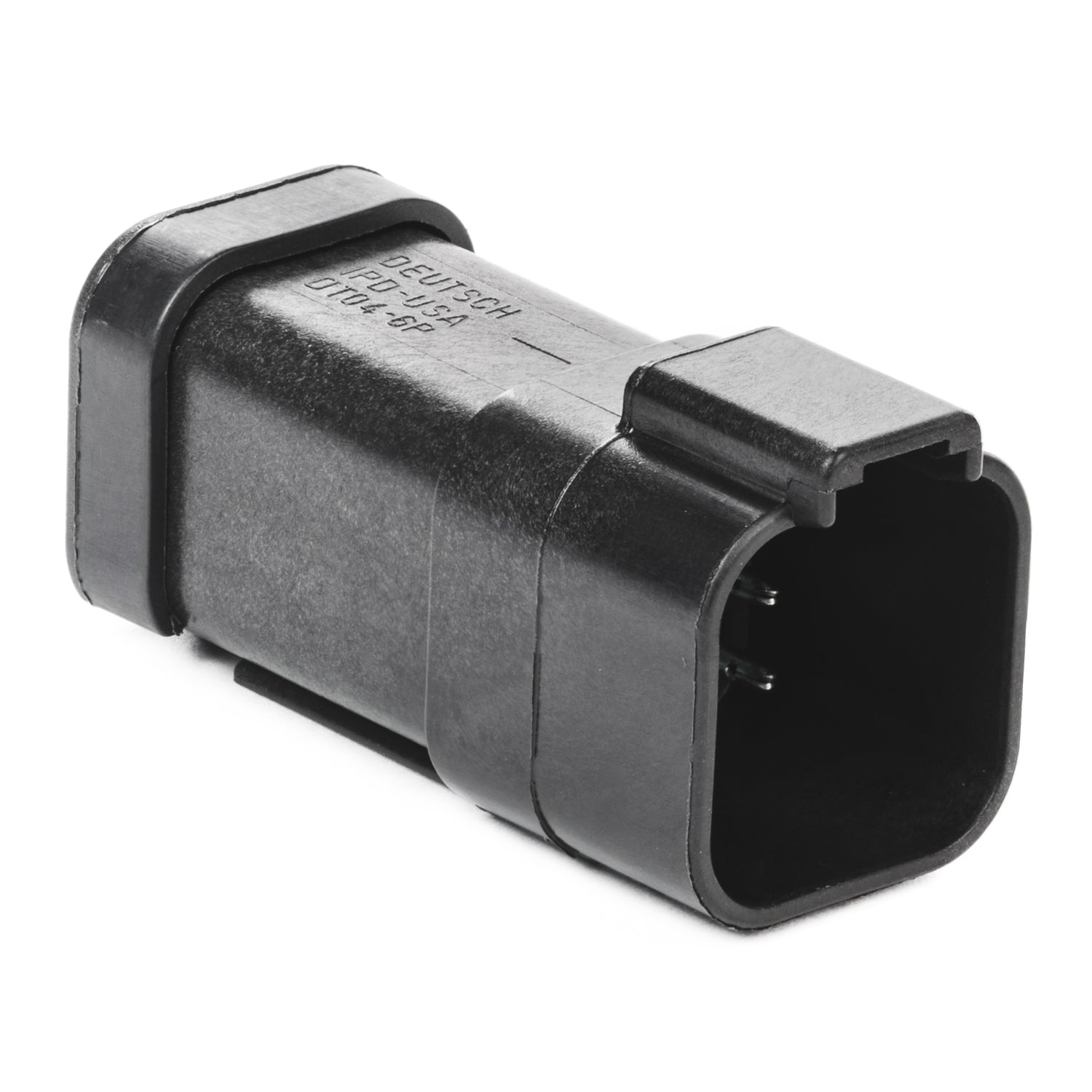

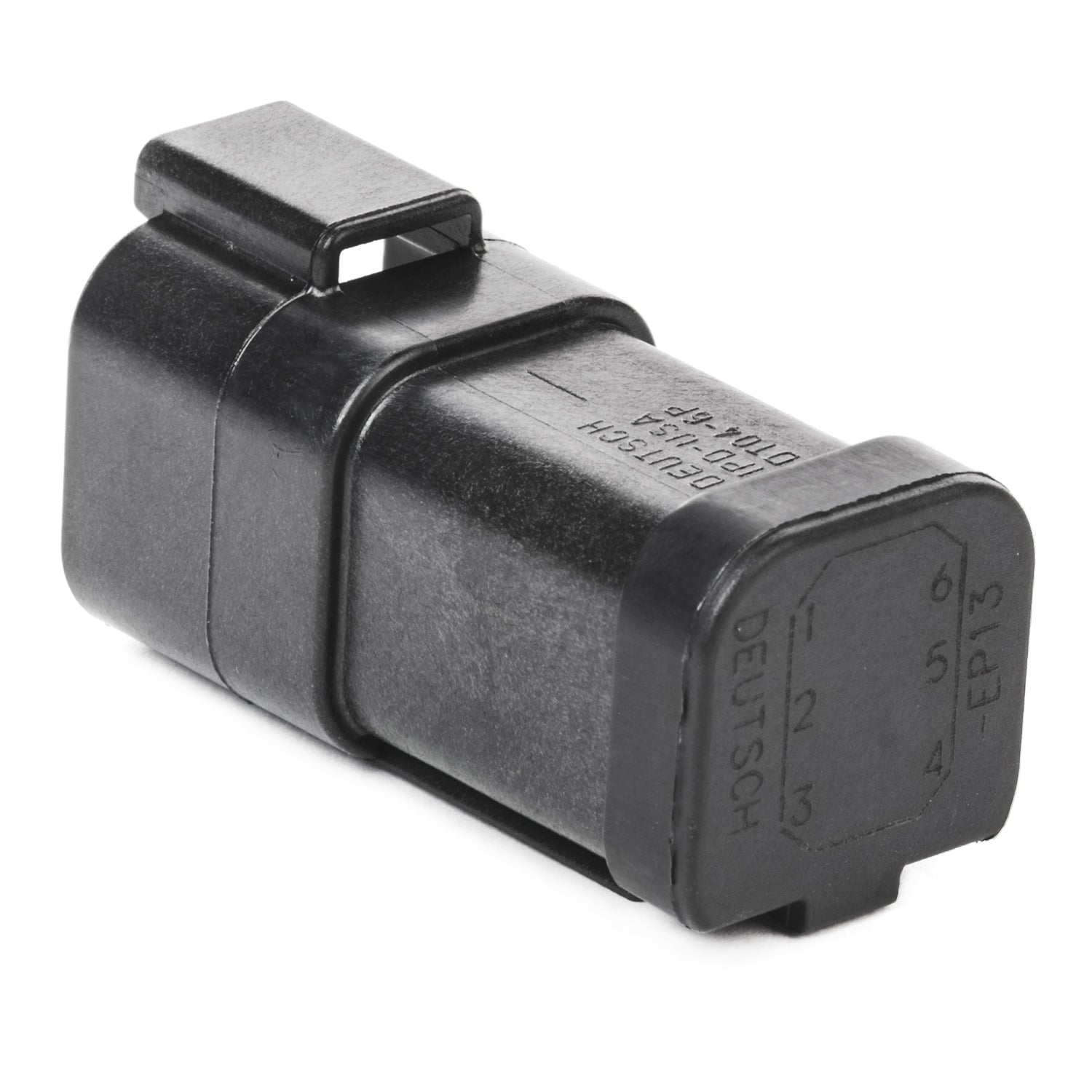

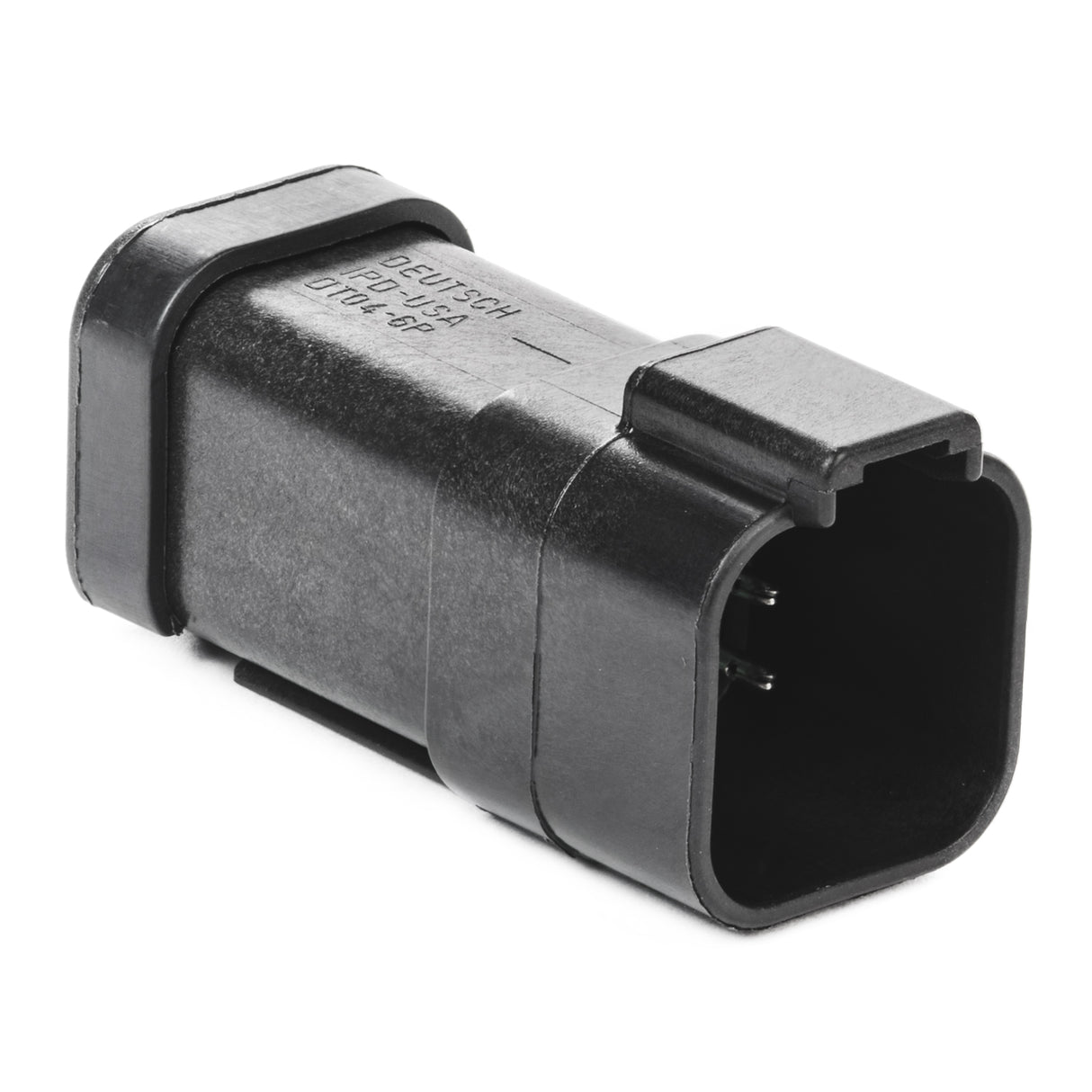

DT04-6P-EP13 - DT Series - 6 Pin Receptacle - (1) 6 Pin Buss, Nickel Contacts, Black

Sku: DT04-6P-EP13
Vendor: Deutsch
$15.20
Maximum quantity available reached.
Deutsch Logo

Deutsch Connectors

DEUTSCH DT Series connectors offer field proven reliability and rugged quality. The DT design strengths include optional flange mounting, multi-pin arrangements, lower cost, and design flexibility. The DT Series offers the designer the ability to use multiple size 16 contacts, each with 13 amp continuous capacity, within a single shell.

Part Number DT04-6P-EP13
Series DT Series
Required Wedgelock Included
Keyed No
 Color Black
Material Plastic
Shape Rectangular
Connector Style Receptacle
Cavities 6
Contact Size 16
Current Rating 13
Holds Pin/Socket Pin
Modification Nickel Contacts, (1) 6 Pin Buss
Flange/In-line/PCB Mount In-line
