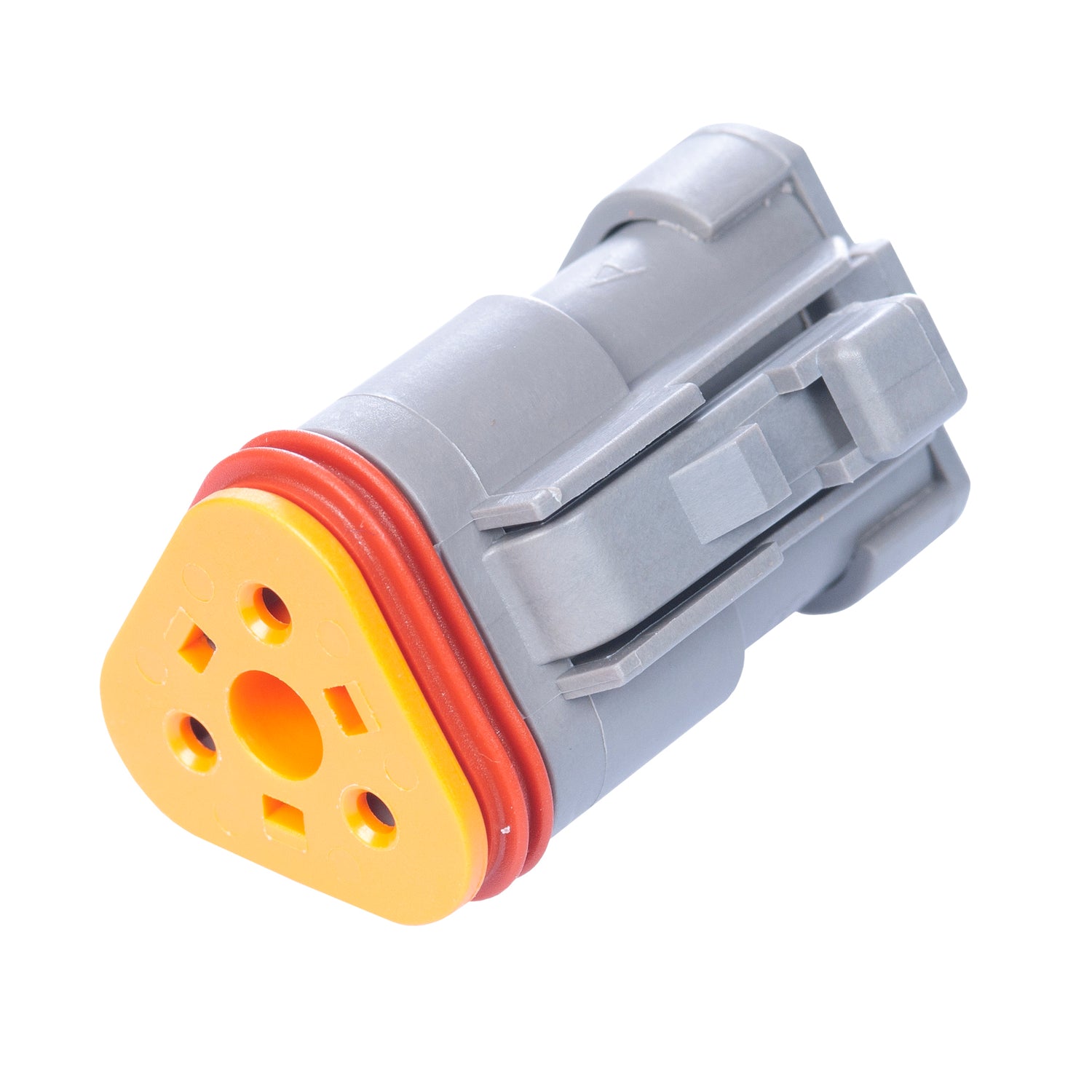

DT06-3S-C017 - DT Series - 3 Socket Plug - Wedgelock Included, Solid Rear Grommet, End Cap, Gray

Sku: DT06-3S-C017
Vendor: Deutsch
$4.34
Maximum quantity available reached.
Deutsch Logo

Deutsch Connectors

DEUTSCH DT Series connectors offer field proven reliability and rugged quality. The DT design strengths include optional flange mounting, multi-pin arrangements, lower cost, and design flexibility. The DT Series offers the designer the ability to use multiple size 16 contacts, each with 13 amp continuous capacity, within a single shell.

 Part Number DT06-3S-C017
Series DT Series
Wire Size 14, 16, 18, 20
Required Wedgelock Included
Keyed No
Color Gray
Material Plastic
Shape Triangular
Connector Style Plug
Cavities 3
Contact size 16
Current Rating 13
Holds Pin/Socket Socket
Modification Solid Rear Grommet, End Cap
Flange/In-line/PCB Mount In-line
