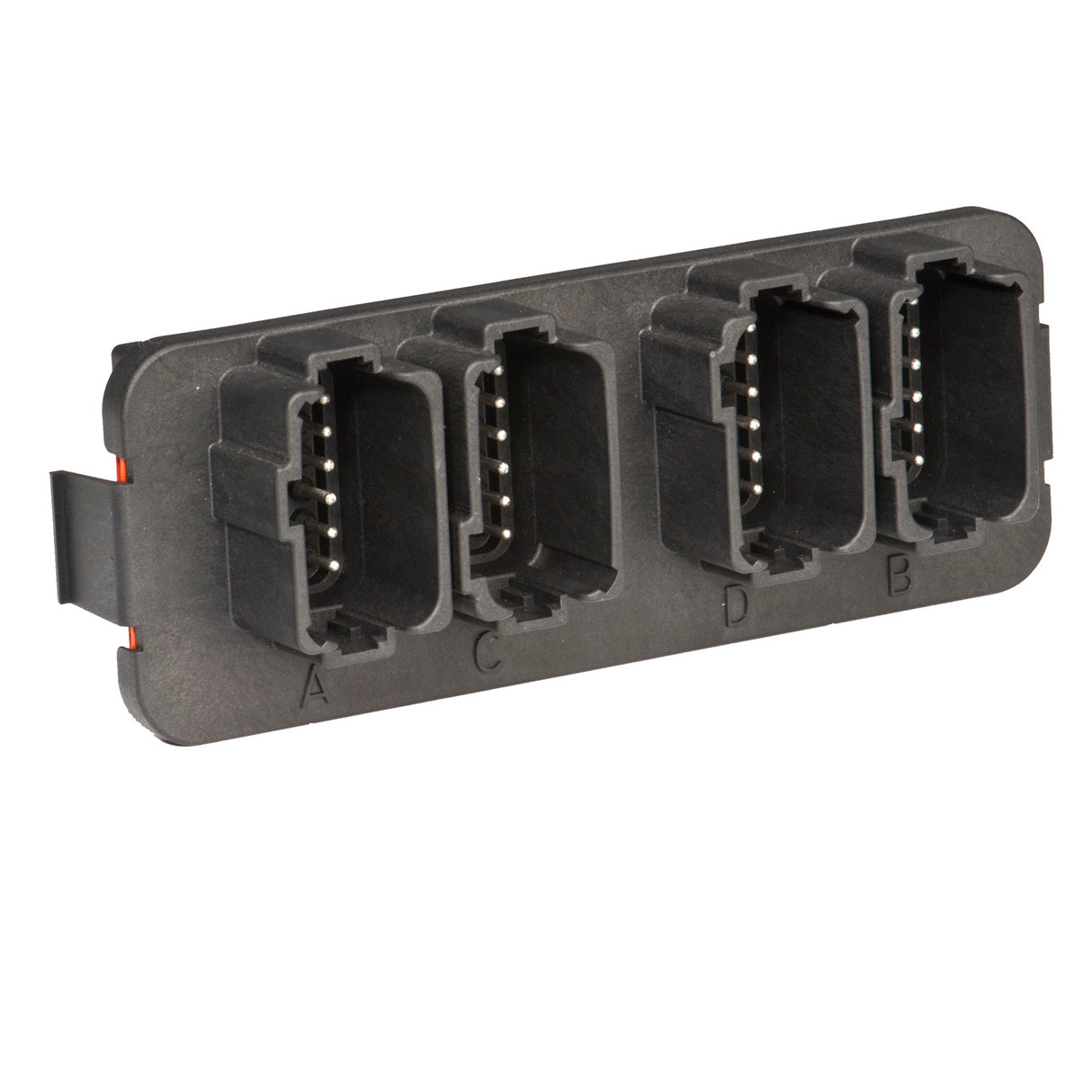

DT13-48PABCD-R015 - PCB Header-48 Contact-4x12 DT Receptacles-ABCD Keys

Sku: DT13-48PABCD-R015
Vendor: Deutsch
$195.00
Maximum quantity available reached.

PCB Enclosures

Deutsch PCB Enclosures and accessories are available in a variety of size and specifications for any connector assembly.

Deutsch DT Series connectors offer field proven reliability and rugged quality. The DT design strengths include optional flange mounting, multi-pin arrangements, lower cost, and design flexibility. The DT Series offers the designer the ability to use multiple size 16 contacts, each with 13 amp continuous capacity, within a single shell.

 Part Number
DT13-48PABCD-R015
Series DT Series
Wire Size 16
Keyed Yes, A, B, C, and D key
Color Black
Material Plastic
Shape Rectangular
Connector Style Receptacle
Cavities 48
Contact Size 16
Special Features 90° molded pins
Current Rating 13
Holds Pin/Socket Pin
Modification PCB Enclosure Header
Flange/in-line/PCB Mount PCB
