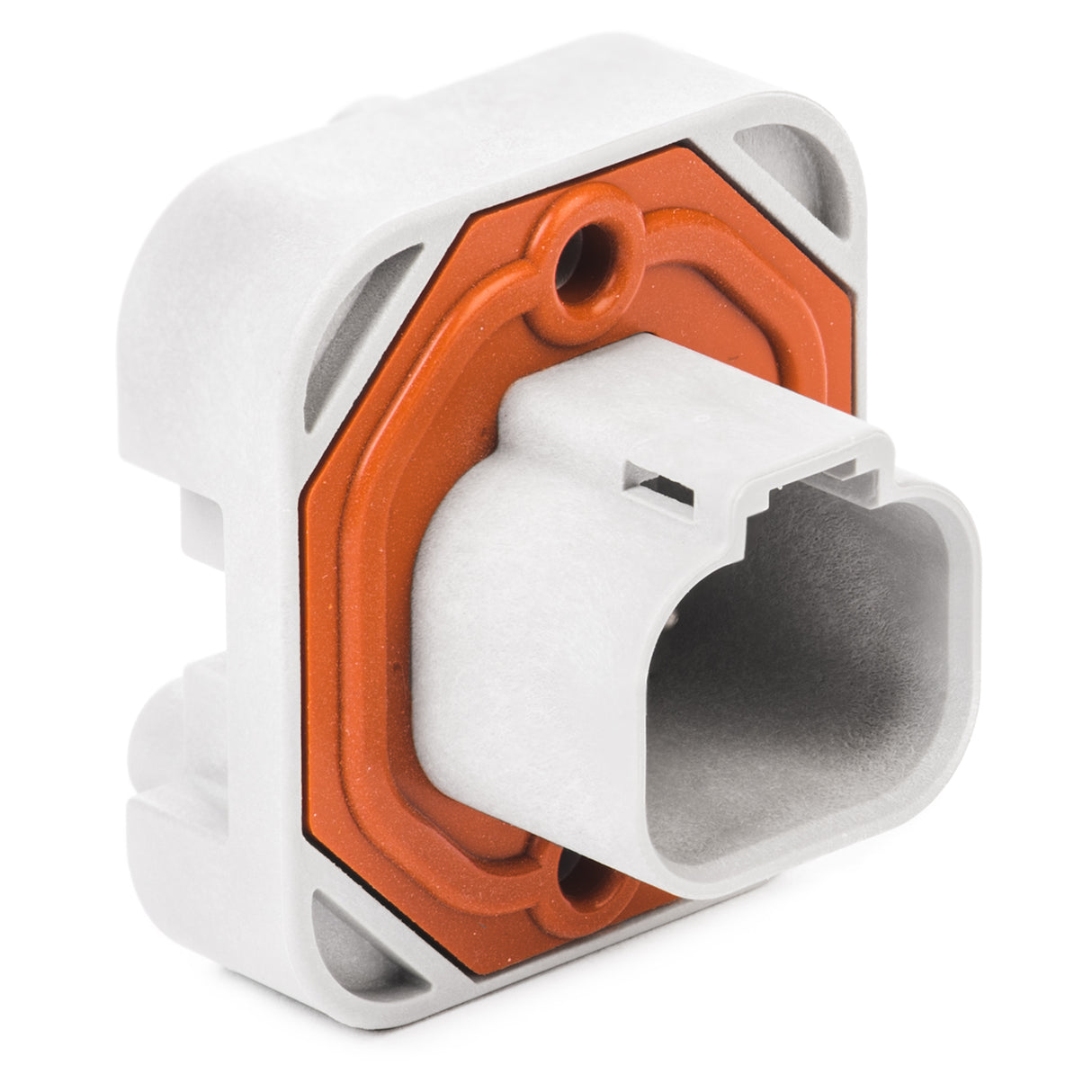

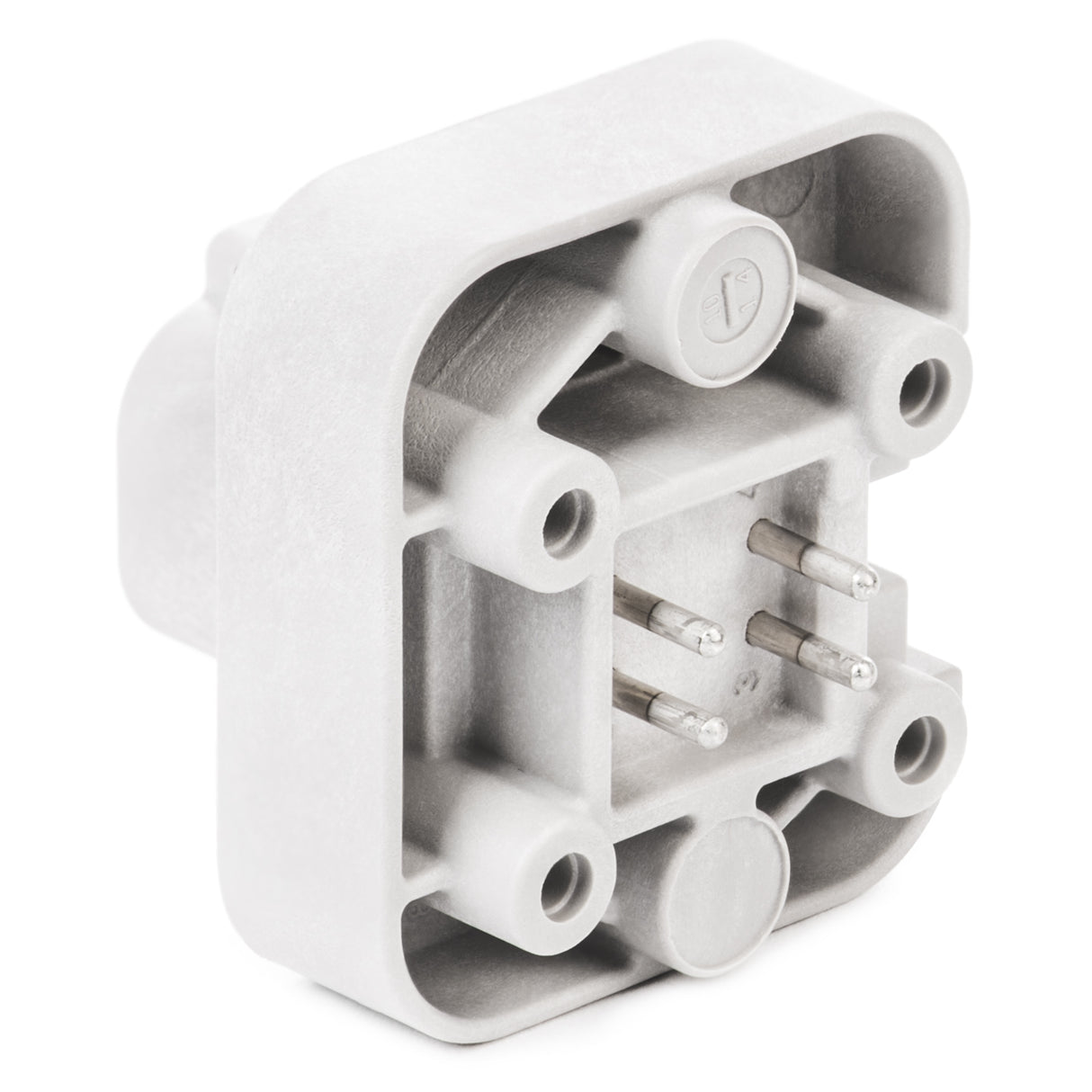

DT15-4P - DT13 Series - 4 Pin Receptacle - Straight Molded Pins, PCB Mount, Gray

Sku: DT15-4P
Vendor: BuyDeutsch
$9.60
Maximum quantity available reached.
Deutsch Logo

Deutsch Connectors

DEUTSCH DT Series connectors offer field proven reliability and rugged quality. The DT design strengths include optional flange mounting, multi-pin arrangements, lower cost, and design flexibility. The DT Series offers the designer the ability to use multiple size 16 contacts, each with 13 amp continuous capacity, within a single shell.

Part Number DT15-4P
Series DT Series
Wire Size 16
Keyed No
Color Gray
Material Plastic
Shape Rectangular
Connector Style Receptacle
Cavities 4
Contact Size 16
Special Features Straight molded pins
Current Rating 13
Flange/In-line/PCB Mount PCB
