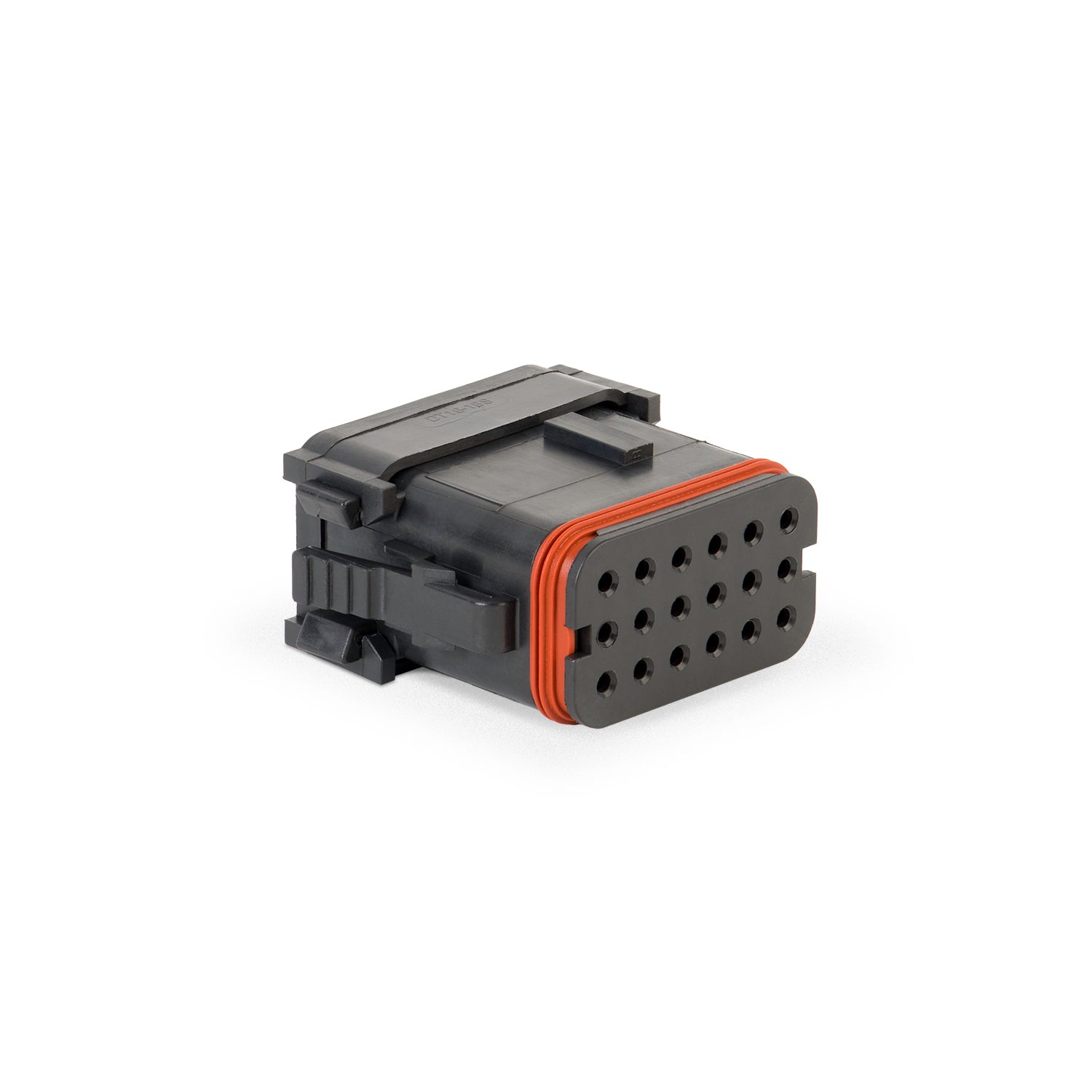

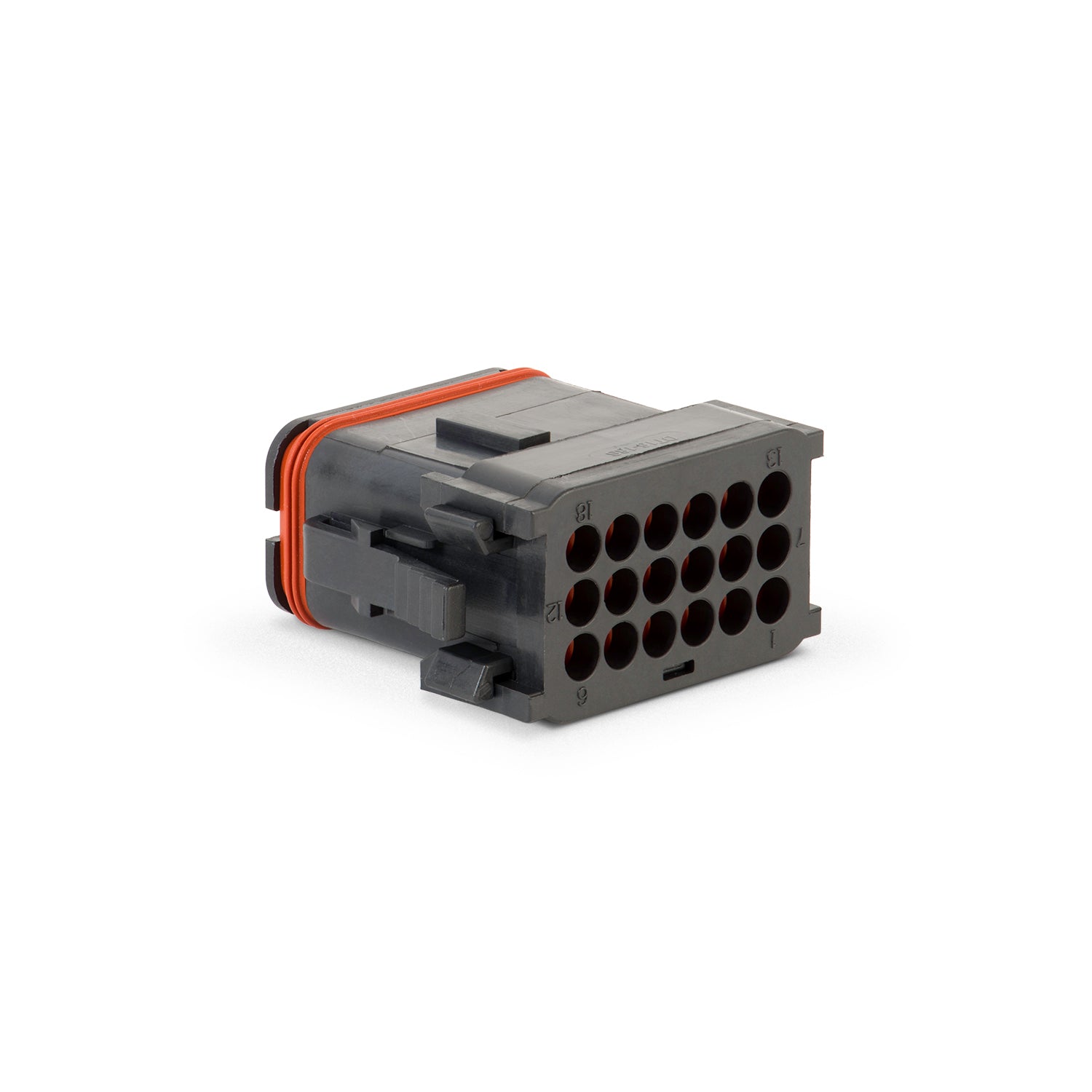

DT16-18SB-K004 - DT16 Series - Plug, 18 Cav, B Key, End Cap

Sku: DT16-18SB-K004
Vendor: Deutsch
$29.00
Maximum quantity available reached.
Deutsch Logo

Deutsch Connectors

DEUTSCH DT Series connectors offer field proven reliability and rugged quality. The DT design strengths include optional flange mounting, multi-pin arrangements, lower cost, and design flexibility. The DT Series offers the designer the ability to use multiple size 16 contacts, each with 13 amp continuous capacity, within a single shell.

Part Number DT16-18SB-K004
Series DT Series
Wire Size 14, 16, 18, 20
Required Wedgelock N/A
Keyed Yes, B key
Color Black
Material Plastic
Shape Rectangular
Connector Style Plug
Cavities 18
Contact Size 16
Current Rating 13
Holds Pin/Socket Socket
Modification Enhanced Seal Retention, End Cap
