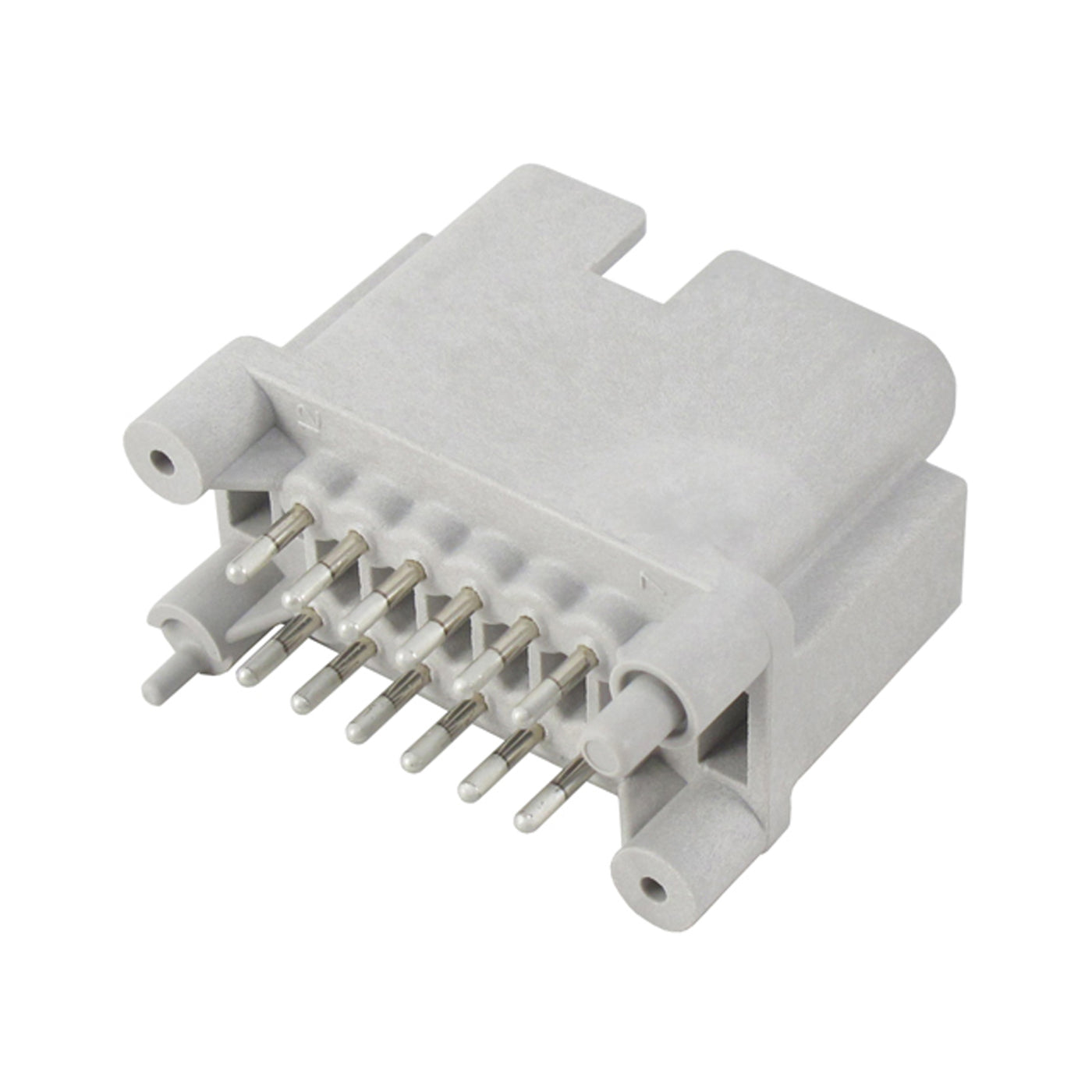

DTF15-12PA - DTF - Receptacle - 12 Way, Size 16, Straight, Molded Pins, Flangeless PCB Mount, A Key

Sku: DTF15-12PA
Vendor: Deutsch
$17.75
Maximum quantity available reached.

The Deutsch DTM Series of connectors feature a miniature contact with an improved design based on the field-proven Deutsch "DT" Series. The DTM is the connector to be used in harsh environmental applications where reliable signal circuits are critical to operating performance. Typical applications include on or around the engine, the transmission and under the hood. In fact, everywhere data signals or critical electronic circuits go, the field proven Deutsch design of the DTM will provide reliable peak connector performance.
The Deutsch DTM series of connectors are precision engineered with silicone seals to provide positive, weather resistant connections, and to function flawlessly even after hundreds of connect/disconnect cycles Deutsch DTM Series connectors are the answer to all of your smaller wire gauge applications. Building on the DT design strengths, the DTM connector line was developed to fill the need for lower amperage, multi pin, inexpensive connectors. The DTM Series offers the designer the ability to use multiple size 20 contacts, each with 7.5 amp continuous capacity, within a single shell.
8 contact receptacle accepts either solid or stamped and formed size 20 pins. Standard silicone seals. A key, Gray. The R004 modification means it has a custom flange.

 Part Number
DTF15-12PA
Series DT series
Wire Size 16
Keyed Yes, A key
Color Gray
Material Plastic
Shape Rectangular
Connector Style Receptacle
Cavities 12
Contact Size 16
Special Feature Straight molded pins, flange less
Current Rating 13
Flange/In-line/PCB Mount PCB
