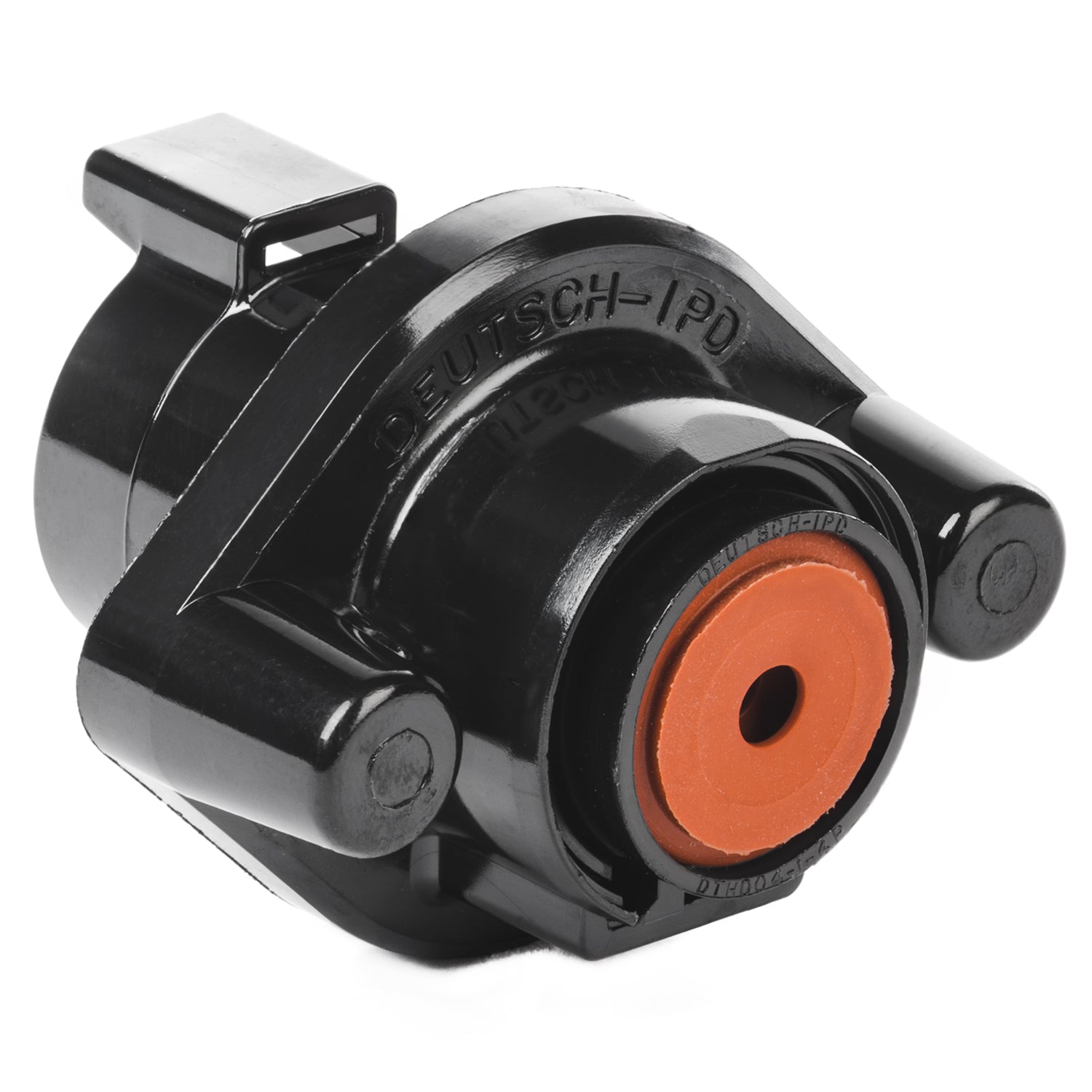

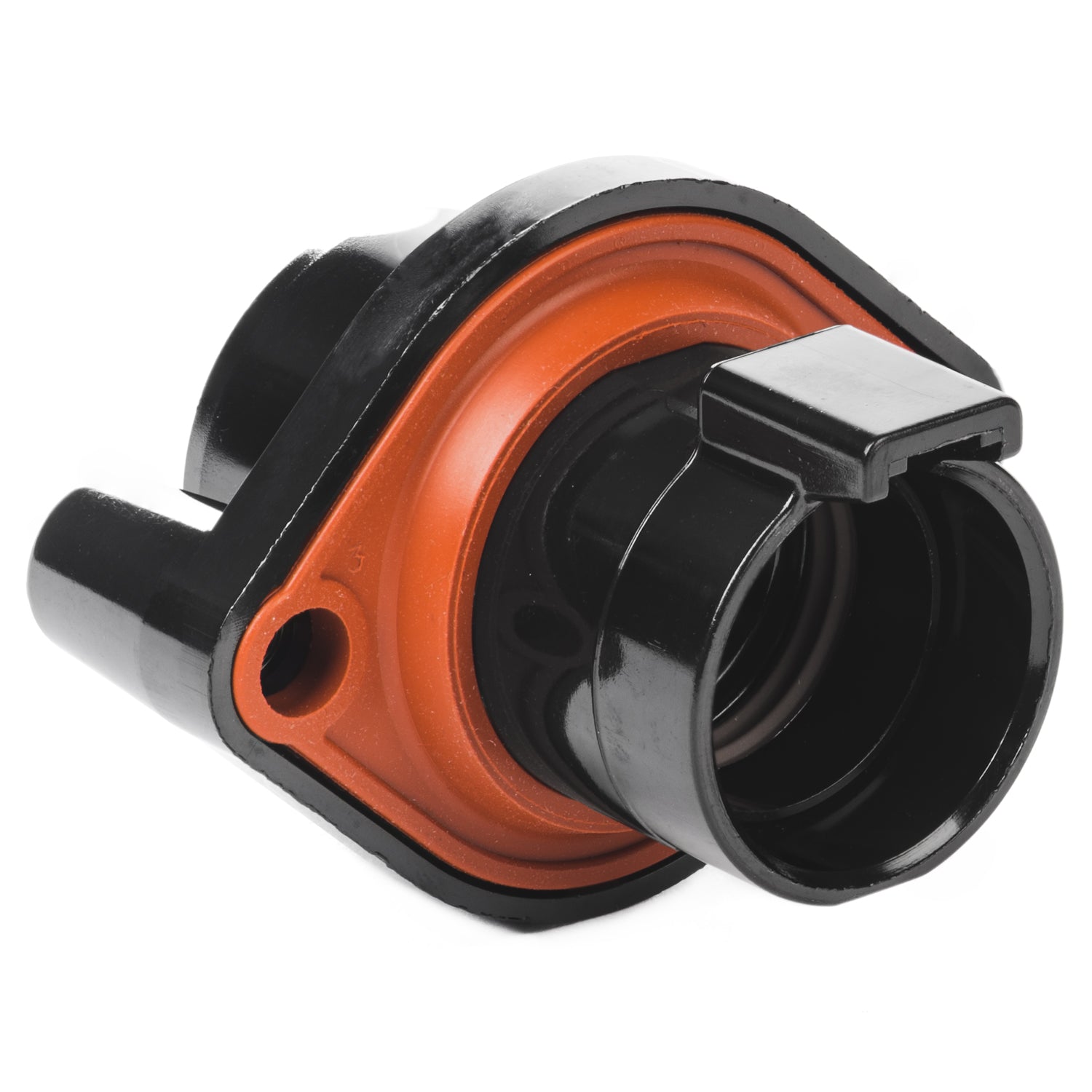

DTHD04-1-4P-L009 - DTHD Series - 4 Pin Receptacle - Sealed Flange, Black

Sku: DTHD04-1-4P-L009
Vendor: Deutsch
$25.65
Maximum quantity available reached.
Deutsch Logo

Deutsch DTHD

Deutsch developed the DTHD Series for those applications requiring a complete, environmentally sealed, single power circuit termination. DTHD plugs and receptacles can be permanently assembled with thermoplastic end caps that prevent removal of the silicone wire seal grommets. Designed for diesel engine, electronic fuel injectors, automatic transmissions, ABS brakes and other applications that involve fuel and oil exposure. These end caps provide the additional reliability required for critical wiring Circuits.

DTHD connectors are single terminal connectors for heavy duty applications. Easy to install, environmentally sealed and compact in size, they are a simple, field serviceable alternative to a splice. This DTHD receptacle takes a size 4 pin and is rated as 100 amps of continuous current. Black. The L009 modification is a sealed flange that offers inside mounting.

 Part Number DTHD04-1-4P-L009
Series DTHD Series
Wire Size 6
Keyed No
Color Black
Material Plastic
Shape Circular
Connector Style Receptacle
Cavities 1
Contact Size 4
Current Rating 100
Holds Pin/Socket Pin
Modification Sealed Flanged
Flange/In-line-PCB Mount Flange
