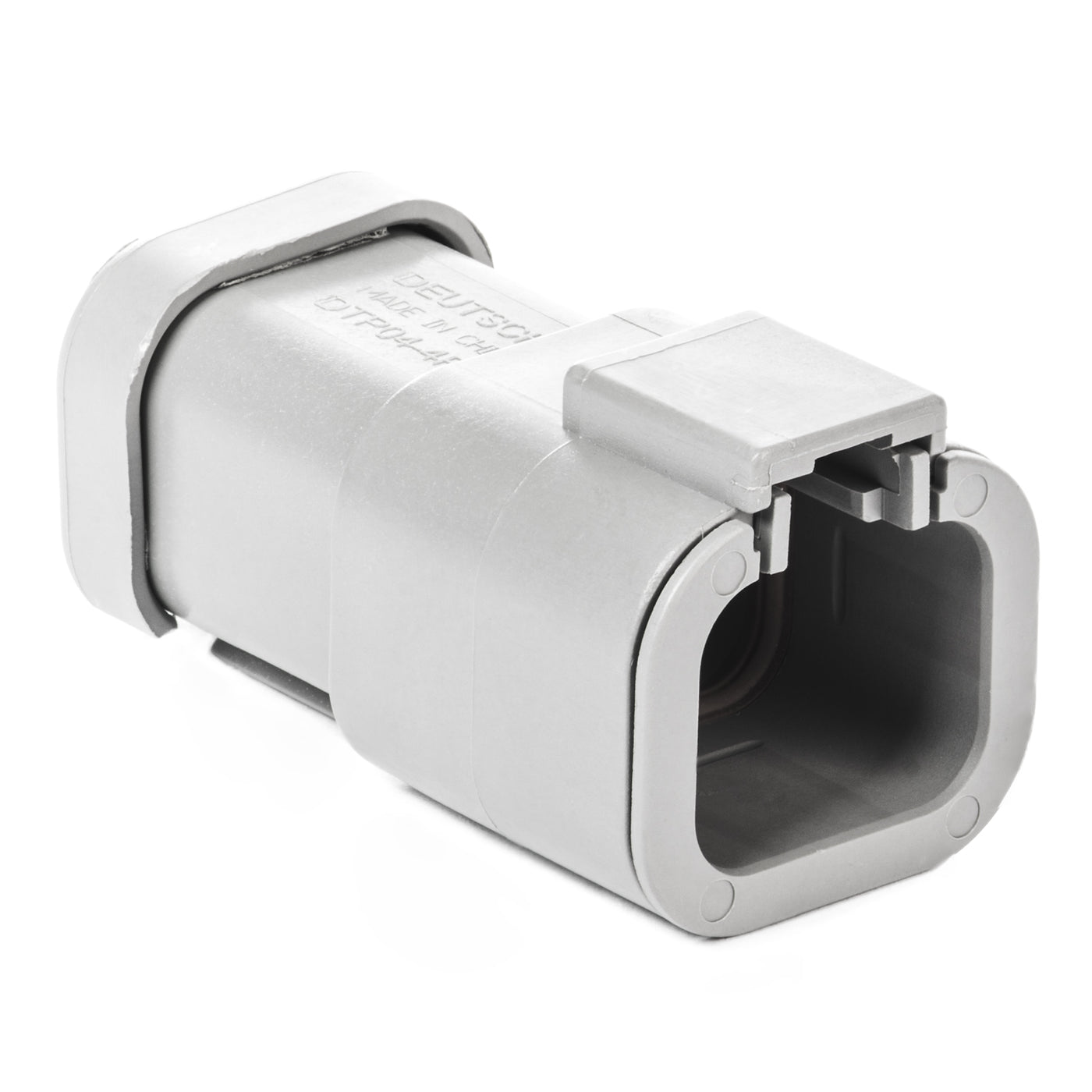

DTP04-4P-E003 - DTP Series - 4 Pin Receptacle - End Cap, Gray
Deutsch DTP Series
The answer to all of your most demanding power application requirements. DTP Series connectors offer the proven reliability and quality of Deutsch's DT Series, combined with the added flexibility of using power contacts. They are environmentally sealed and come in two and four pin arrangements. Available in-line or flange mounted and are able to handle 25 amps continuous at +120º C.
Deutsch's DTP Series connectors are the solution for your power application requirements. Building on both the DT and DTM design strengths, the DTP connector line was developed to fill the need for higher amperage, multi-pin, inexpensive connectors. The DTP Series offers the designer the ability to use multiple size 12 contacts, each with a 25 amp continuous capacity, within a single shell. The DTP connectors are currently available in two and four pin configurations.
|Wire Size||10, 12, 14|
