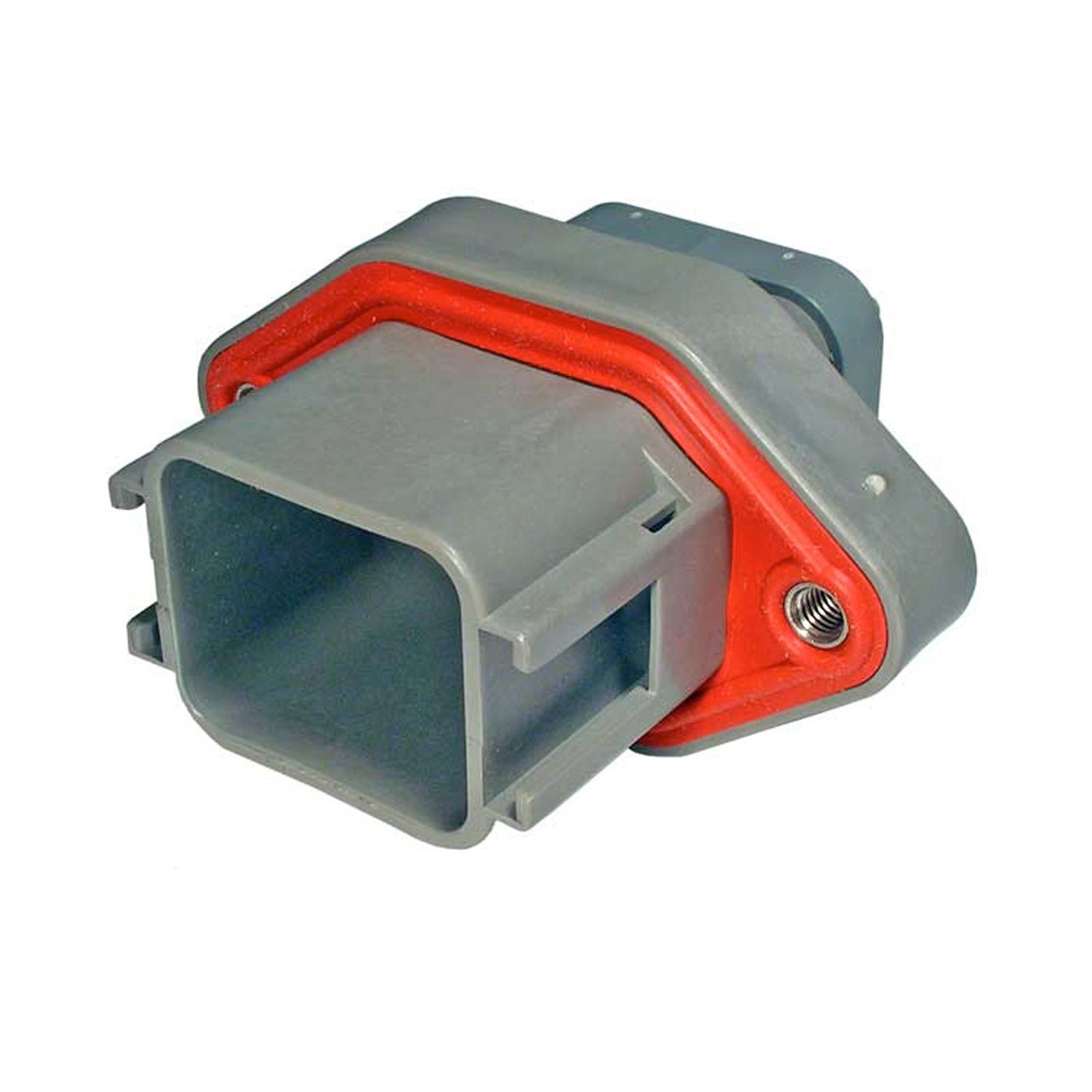

DTV02-18PA - DTV Series - 18 Pin Receptacle - Sealed Flange, Gasket, End Cap, A Key, Gray

Sku: DTV02-18PA
Vendor: Deutsch
$31.43
Maximum quantity available reached.
Deutsch AEC

Deutsch DTV Series

Genuine Deutsch DTV series connectors provide superior electrical properties and weather resistance in an attractive, economical and user friendly product. The Deutsch DTV series of connectors are precision engineered with silicone seals to provide positive, weather resistant connections, and to function flawlessly even after hundreds of connect/disconnect cycles Deutsch's DTV Series connector offer the same time tested reliability and performance as the DT Series with the added flexibility of an 18 cavity flanged design. Deutsch continues its tradition of providing an environmentally sealed connector to meet even your toughest application needs.

The DTV Series offers the designer the ability to use multiple size 16 contacts, each with a 13 amp continuous capacity, within a single shell. The DTV connectors are currently available in an 18 contact configuration. This gray DTV has a sealed flange, gasket, and end cap and is an A key.



 Part Number DTV02-18PA
Series DTV series
Wire Size 14, 16, 18, 20
Required Wedgelock WV-18P
Keyed Yes, A key
Color Gray
Material Plastic
Shape Rectangular
Connector Style Receptacle
Cavities 18
Contact Size 16
Special Features Sealed flange, gasket, end cap
Current Rating 13
Holds Pin/Socket Pin
Flange/In-Line/PCB mount Flange
