DTV02-18PB - DTV Series - 18 Pin Receptacle - Sealed Flange, Gasket, End Cap, B Key, Black
Deutsch DTV Series
Genuine Deutsch DTV series connectors provide superior electrical properties and weather resistance in an attractive, economical and user friendly product. The Deutsch DTV series of connectors are precision engineered with silicone seals to provide positive, weather resistant connections, and to function flawlessly even after hundreds of connect/disconnect cycles. Deutsch's DTV Series connector offer the same time tested reliability and performance as the DT Series with the added flexibility of an 18 cavity flanged design. Deutsch continues its tradition of providing an environmentally sealed connector to meet even your toughest application needs.

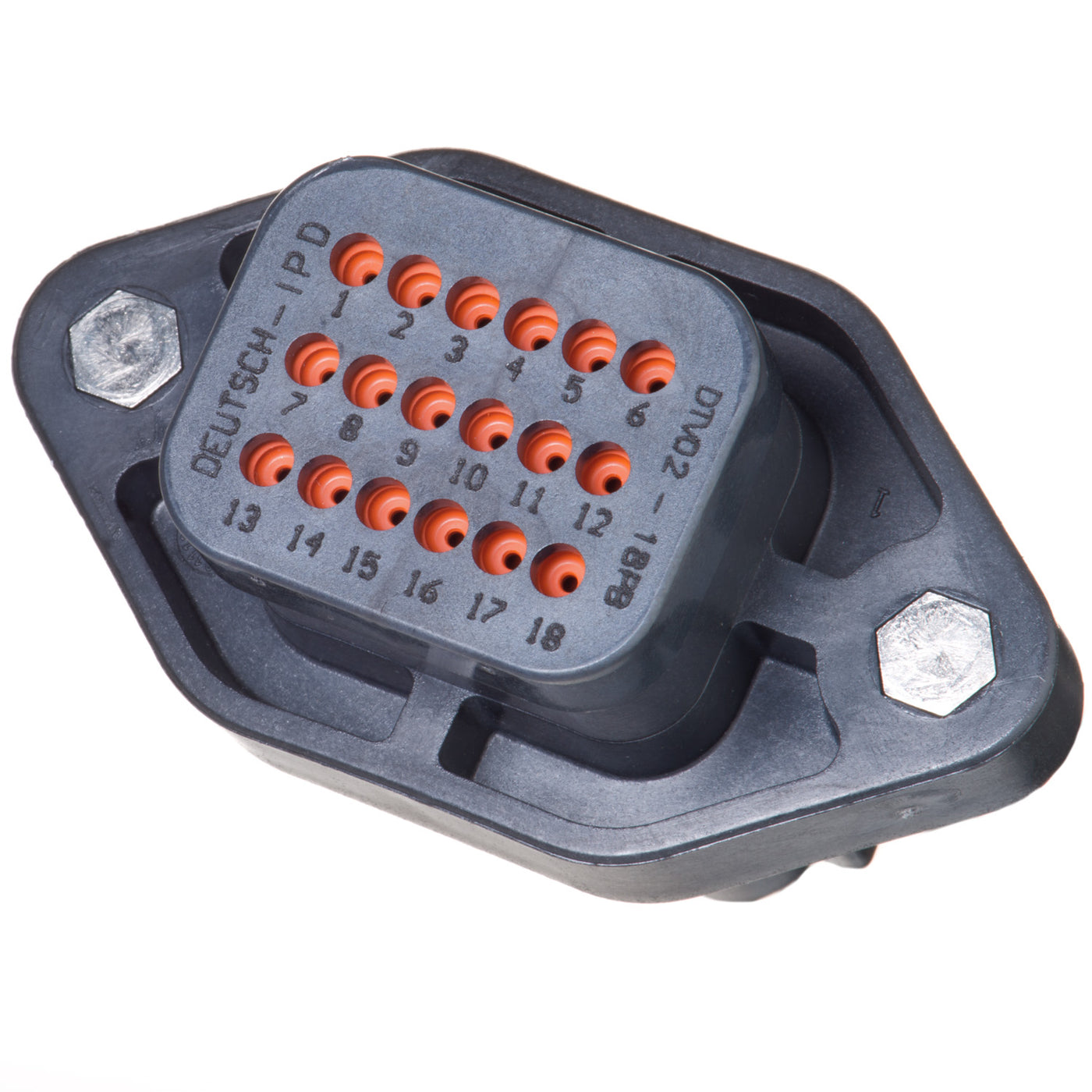

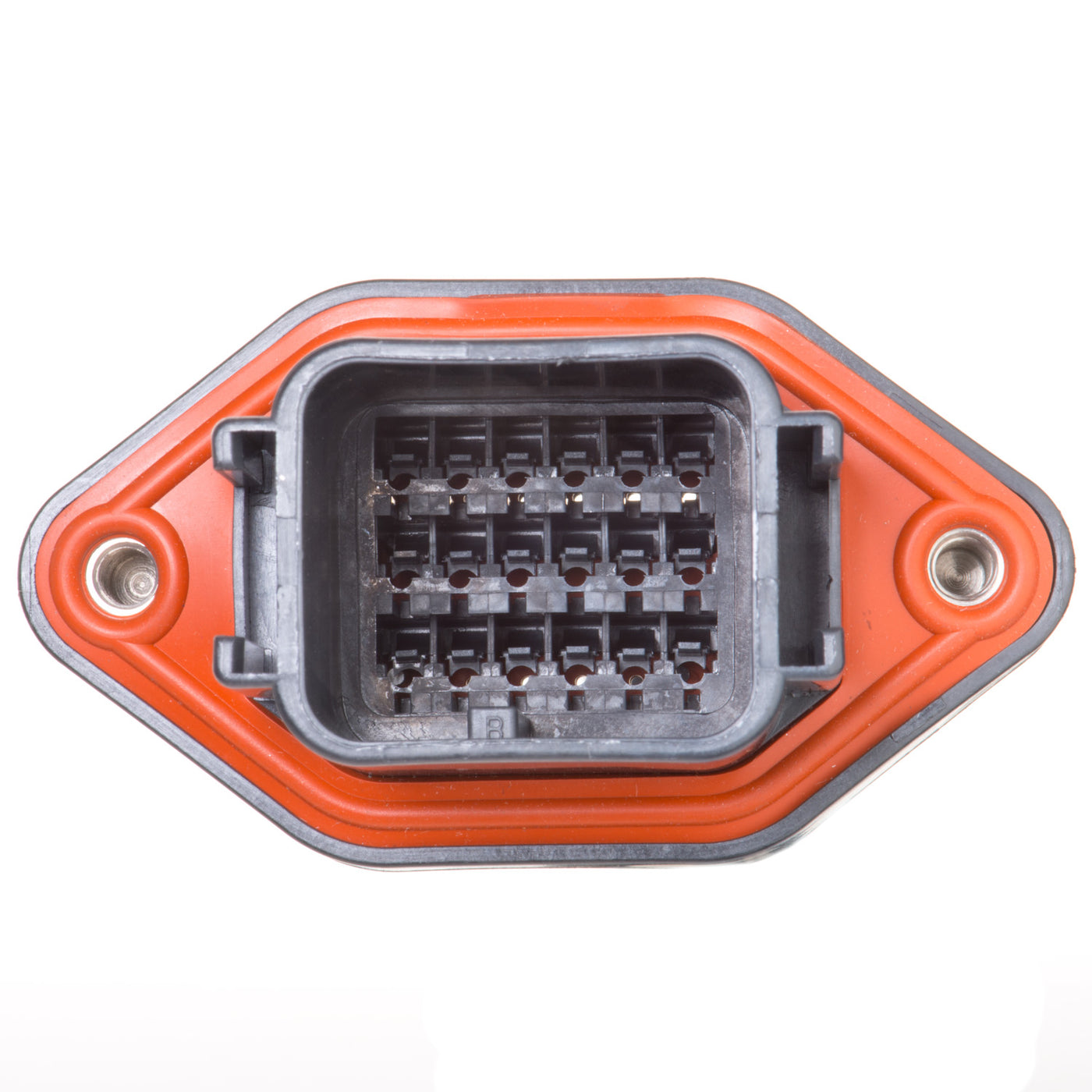

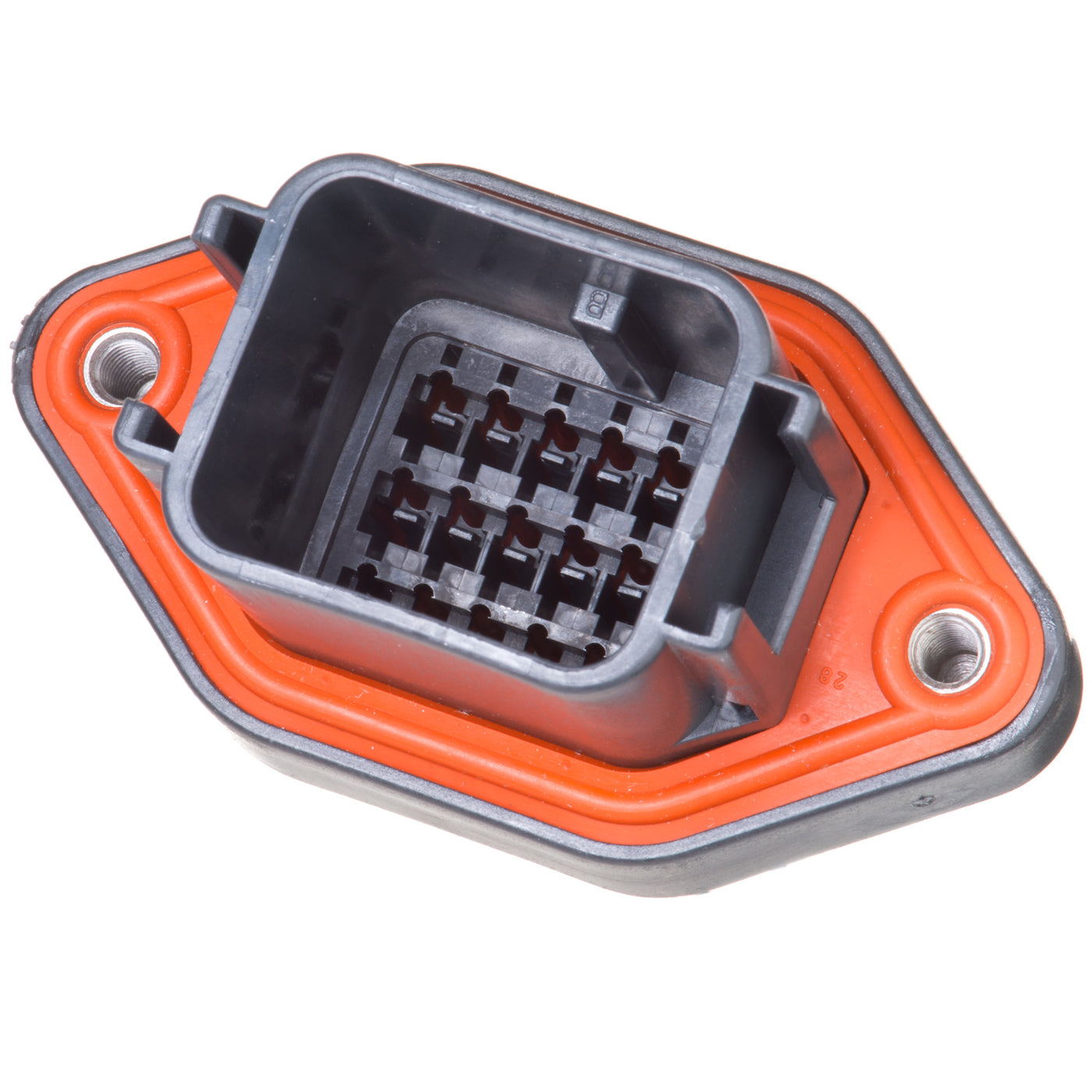

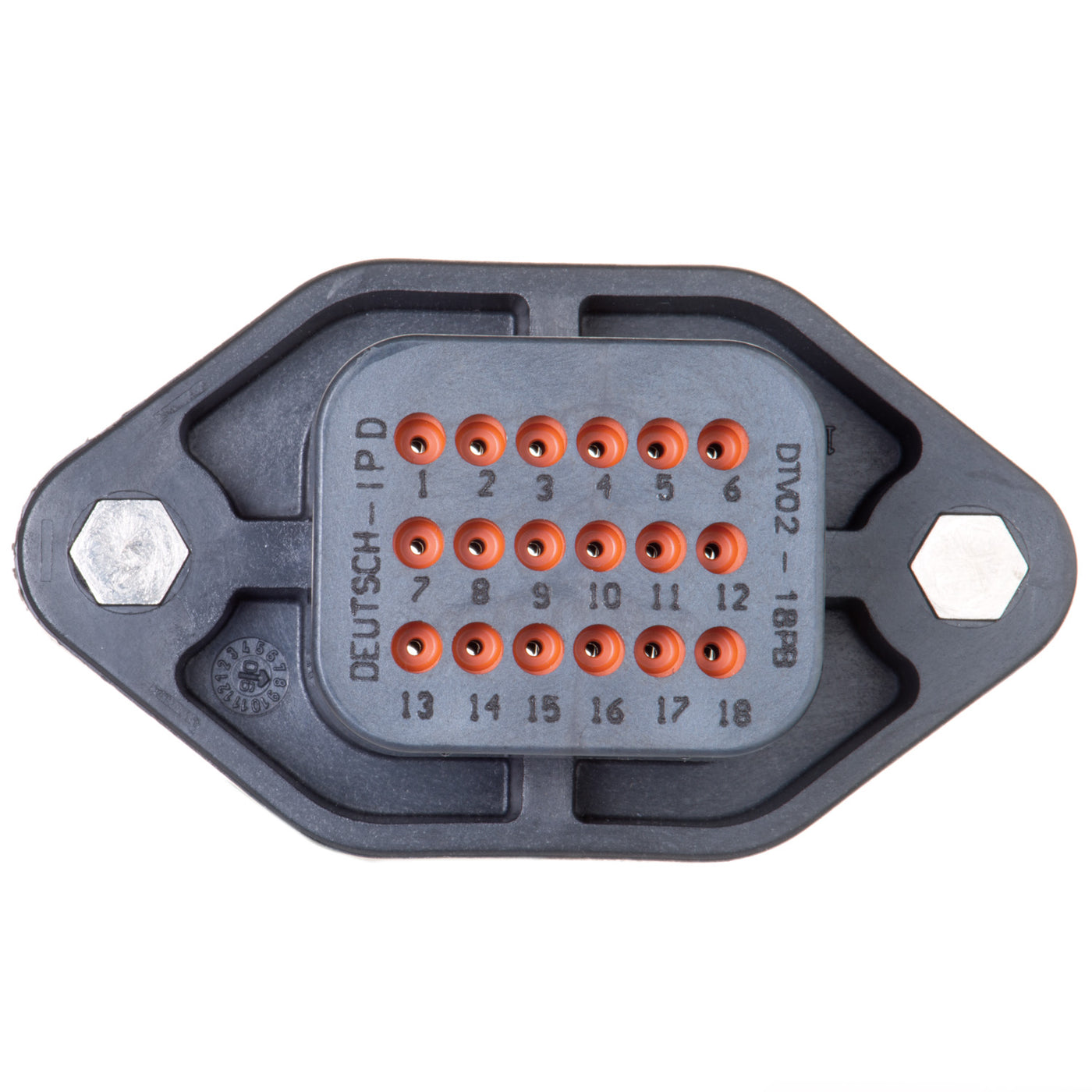

The DTV Series offers the designer the ability to use multiple size 16 contacts, each with a 13 amp continuous capacity, within a single shell. The DTV connectors are currently available in an 18 contact configuration. This black DTV has a sealed flange, gasket, and end cap and is an B key.
|Wire Size||14, 16, 18, 20|
|Keyed||Yes, b key|
|Special Features||Sealed Flange, gasket, end cap|
