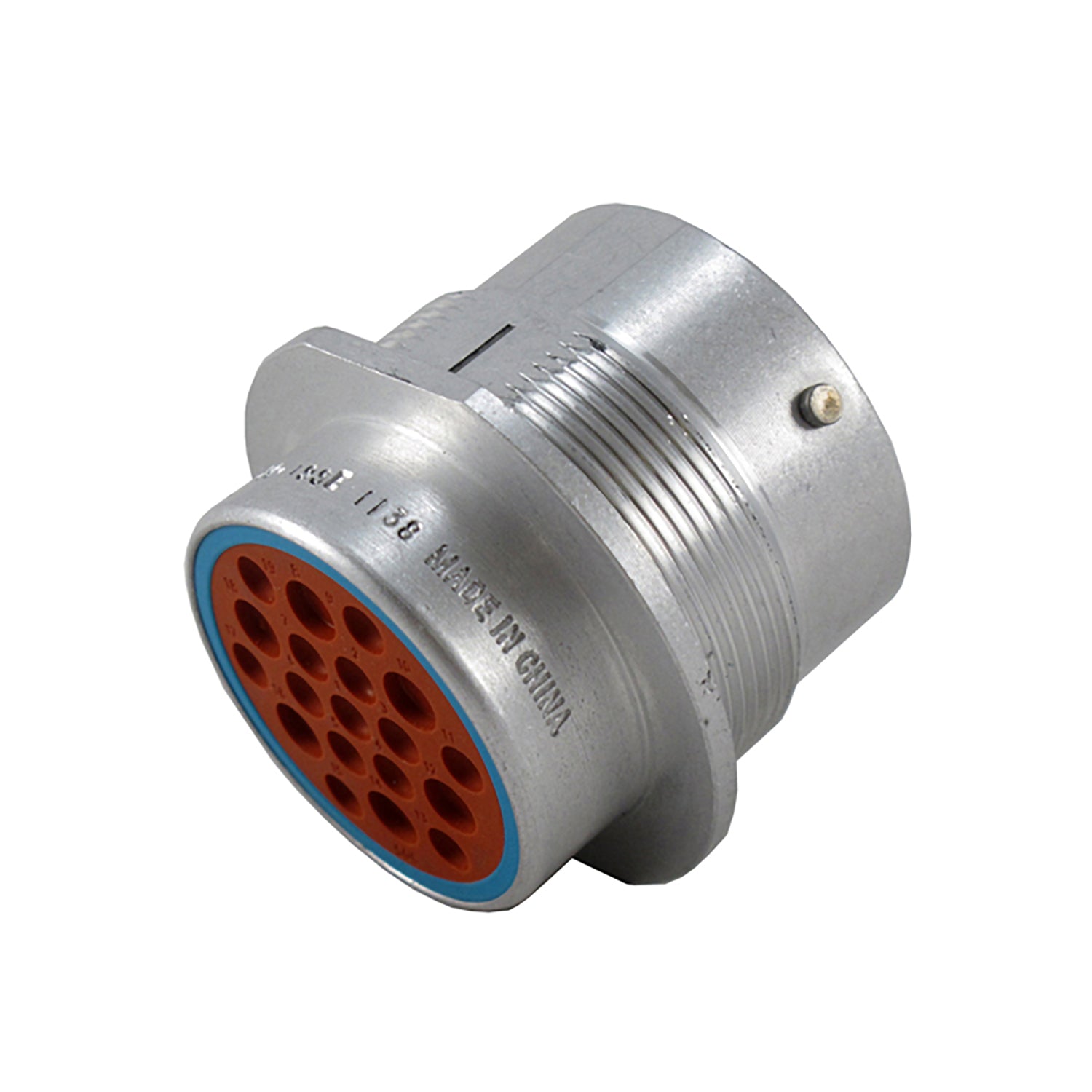

HD34-24-19SE - HD30 Series - 19 Socket Receptacle - 24 Shell, E Seal, Reverse, Flange

Sku: HD34-24-19SE
Vendor: Deutsch
$9.98
Maximum quantity available reached.
Deutsch Logo

Deutsch HD30 Series

Deutsch metal HD30 Series provides quick and easy coupling and cost effectiveness with heavy duty terminations for the truck, bus and off-highway industries. The HD30 is a heavy duty rated, environmentally sealed, and multi-pin connector that uses a bayonet coupling system to provide a vibration resistant locking mechanism. These rugged connectors with seals fabricated from tear resistant, high temperature silicone, and a rear grommet, protect the contacts from moisture, sand, dust, lubricating oils, fuel, road salt, hydraulic fluid, grease, mud and other contaminants encountered in heavy duty operations that can contaminate or damage electrical connections and systems.
Deutsch HD30 connectors are specifically designed for critical applications in harsh environments where dust, dirt, moisture, salt spray, and rough terrain The Deutsch HD30 Series connectors are constructed from a metal shell developed to meet the needs of the heavy duty equipment and transportation industries. the HD30 Series features include quick connect-disconnect bayonet coupling, single hole bulkhead mounting, silicone seals, and a rear insertion/rear removal contact system.

 Part Number HD34-24-19SE
Series HD30 Series
Wire Size 10, 12, 14, 16, 18, 20
Keyed No
Color Silver
Material Aluminum
Shape Circular
Connector Style Receptacle
Cavities 19
Contact Size 12,16
Shell size 24 shell
Special Features Reverse
Seal Size E seal
Current Rating 25, 13
Holds Pin/Socket Socket
Flange/In-line/PCB Mount Flange, In-line
