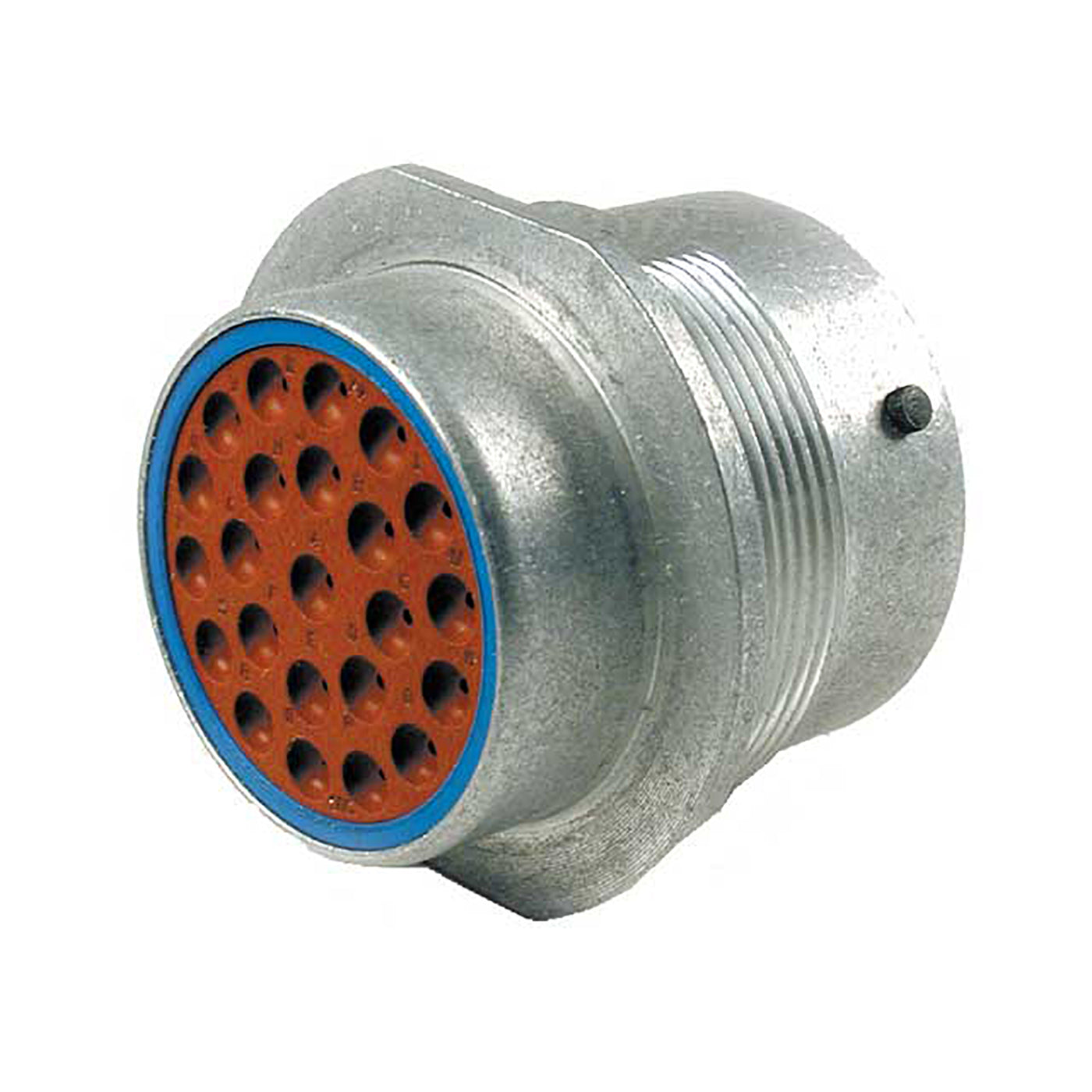

HD34-24-23SE - HD30 Series - 23 Socket Receptacle - 24 Shell, E Seal, Reverse, Flange
Deutsch HD30 Series
Deutsch metal HD30 Series provides quick and easy coupling and cost effectiveness with heavy duty terminations for the truck, bus and off-highway industries. The HD30 is a heavy duty rated, environmentally sealed, and multi-pin connector that uses a bayonet coupling system to provide a vibration resistant locking mechanism. These rugged connectors with seals fabricated from tear resistant, high temperature silicone, and a rear grommet, protect the contacts from moisture, sand, dust, lubricating oils, fuel, road salt, hydraulic fluid, grease, mud and other contaminants encountered in heavy duty operations that can contaminate or damage electrical connections and systems.
Deutsch HD30 connectors are specifically designed for critical applications in harsh environments where dust, dirt, moisture, salt spray, and rough terrain The Deutsch HD30 Series connectors are constructed from a metal shell developed to meet the needs of the heavy duty equipment and transportation industries. the HD30 Series features include quick connect-disconnect bayonet coupling, single hole bulkhead mounting, silicone seals, and a rear insertion/rear removal contact system.
|Wire Size||14, 16, 18, 20|
|Shell size||24 shell|
|Seal Size||E Seal|
|Flange/In-line/PCB Mount||Flange, In-line|
