HD34-24-91PN-072 - HD30 Series - 9 Pin Receptacle - 24 Shell, N Seal, HDBox Arrangement, Adapter, Flange
Deutsch metal HD30 Series provides quick and easy coupling and cost effectiveness with heavy duty terminations for the truck, bus and off-highway industries. The HD30 is a heavy duty rated, environmentally sealed, and multi-pin connector that uses a bayonet coupling system to provide a vibration resistant locking mechanism. These rugged connectors with seals fabricated from tear resistant, high temperature silicone, and a rear grommet, protect the contacts from moisture, sand, dust, lubricating oils, fuel, road salt, hydraulic fluid, grease, mud and other contaminants encountered in heavy duty operations that can contaminate or damage electrical connections and systems.
Deutsch HD30 connectors are specifically designed for critical applications in harsh environments where dust, dirt, moisture, salt spray, and rough terrain The Deutsch HD30 Series connectors are constructed from a metal shell developed to meet the needs of the heavy duty equipment and transportation industries. the HD30 Series features include quick connect-disconnect bayonet coupling, single hole bulkhead mounting, silicone seals, and a rear insertion/rear removal contact system.

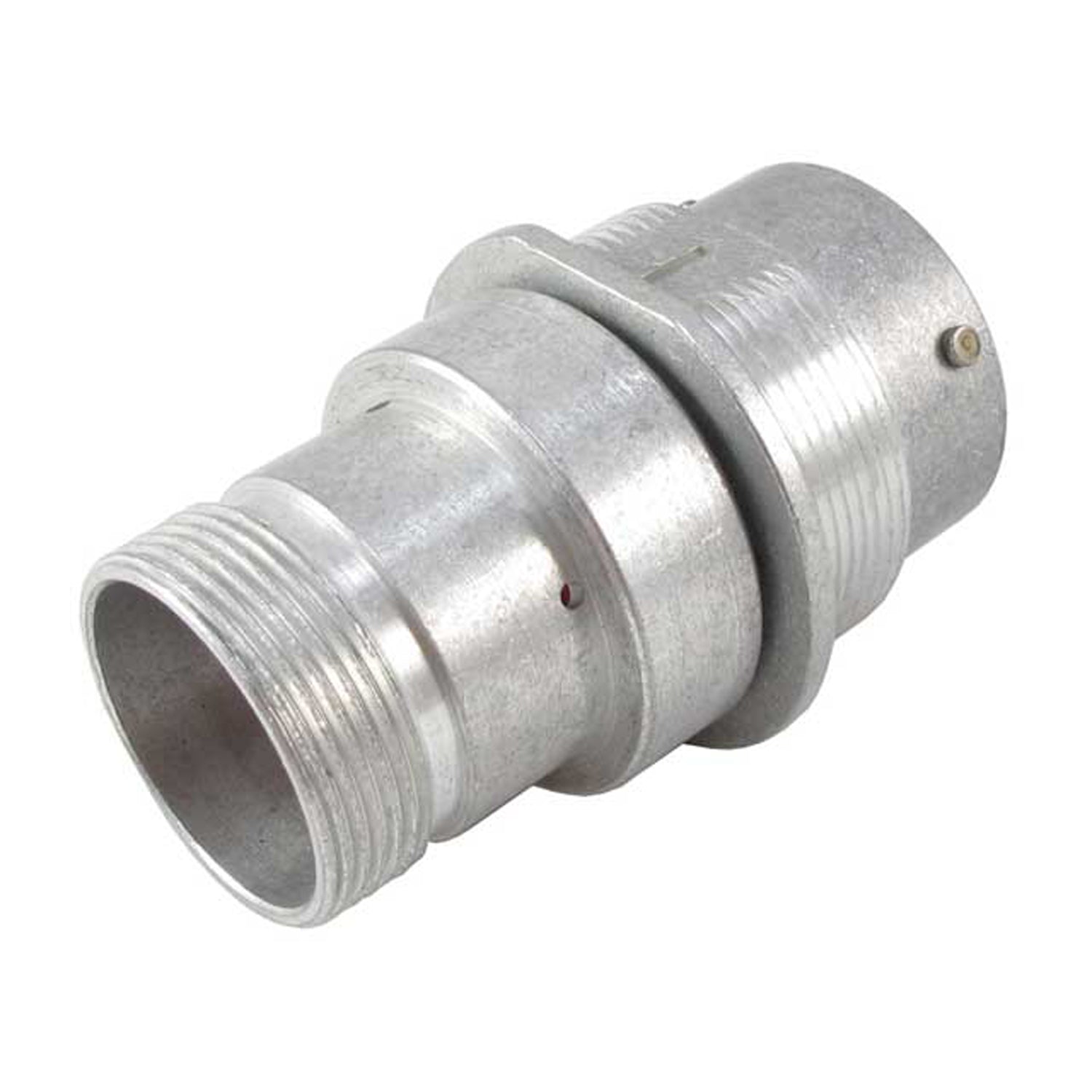

This silver HD30 receptacle takes two size 8 pin, two size 12 pins and five size 16 pins. This receptacle has a flange but can also be used as an in-line connector. It is rated at 60 (size 8), 25 (size 12), and 13 (size 16) amps of continuous current and has a shell size of 24. This receptacle has an N Seal. The 072 modification means that this receptacle has a threaded adapter for future additions of compatible modifications. This receptacle has a special HDBox arrangement feautre
