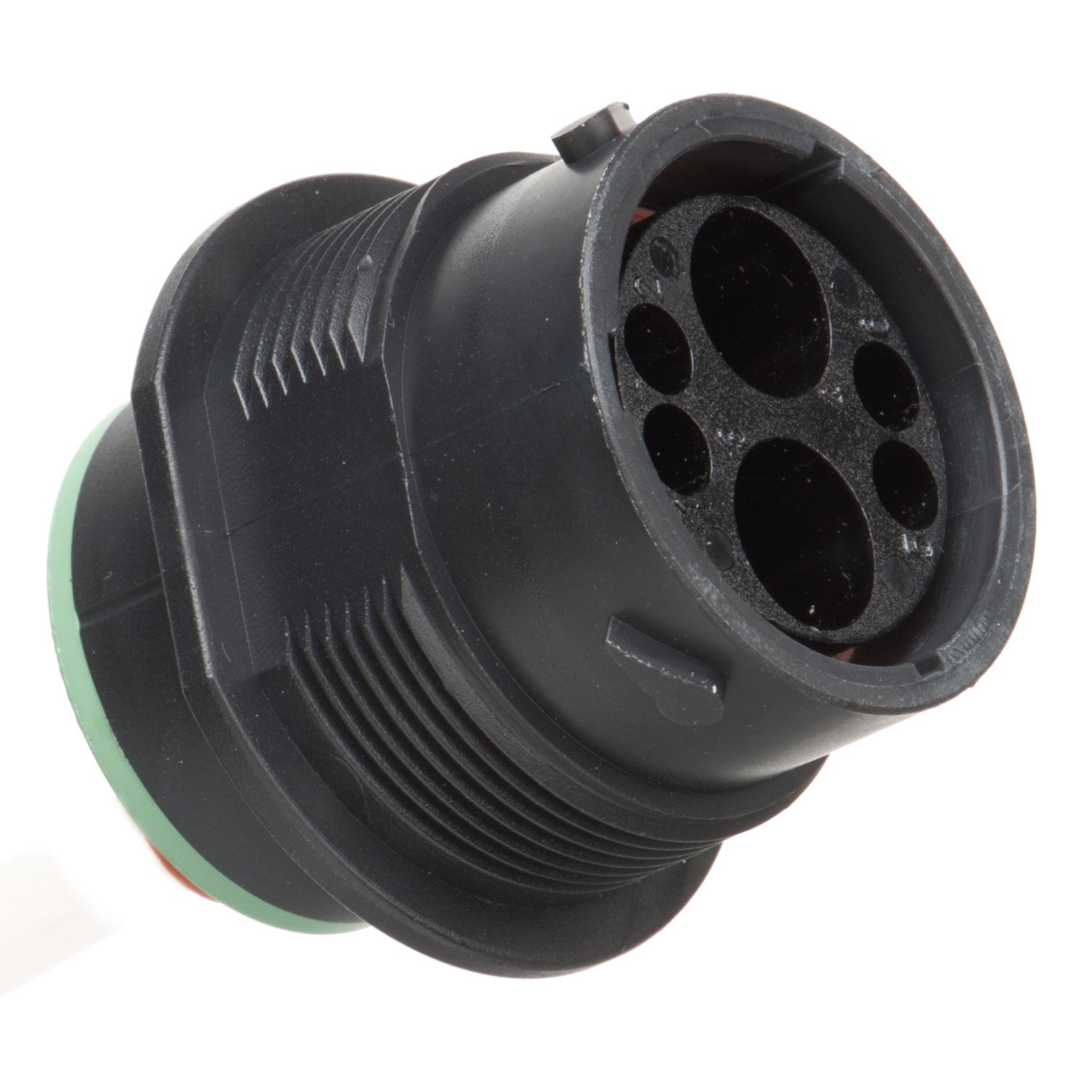

HDP24-18-6PN - HDP20 Series - 6 Pin Receptacle - 18 Shell, N Seal, Flange

Sku: HDP24-18-6PN
Vendor: Deutsch
$22.91
Maximum quantity available reached.



Deutsch Logo

Deutsch HDP20 Series

Deutsch plastic shell HDP20 Series provides quick and easy coupling and cost effectiveness with heavy duty terminations for the truck, bus and off-highway industries. The HD20 is a heavy duty rated, environmentally sealed, and multi-pin connector that uses a bayonet coupling system to provide a vibration resistant locking mechanism Fabricated from tear resistant, high temperature silicone, and a rear grommet, the HD20 contacts are protected from moisture, sand, dust, lubricating oils, fuel, road salt, hydraulic fluid, grease, mud and other contaminants encountered in heavy duty operations.

The HDP20 Series is a heavy duty rated, environmentally sealed, composite shell, multi-pin connector. The composite thermoplastic shell is ideal in applications where chemicals can damage a connector housing. HDP20 features quick connect-disconnect bayonet coupling, single hole bulkhead mounting, silicone seals, and a rear insertion/rear removal contact system.

 Part Number HDP24-18-6PN
Series HDP20 Series
Wire Size 6, 14, 16, 18, 20
Keyed
No
Color Black
Material Plastic
Shape Circular
Connector Style Receptacle
Cavities 6
Contact Size 4, 16
Shell Size 18 shell
Seal Size N Seal
Current Rating 100
Holds Pin/Socket Pin
Flange/In-line/PCB Mount Flange, In-line
