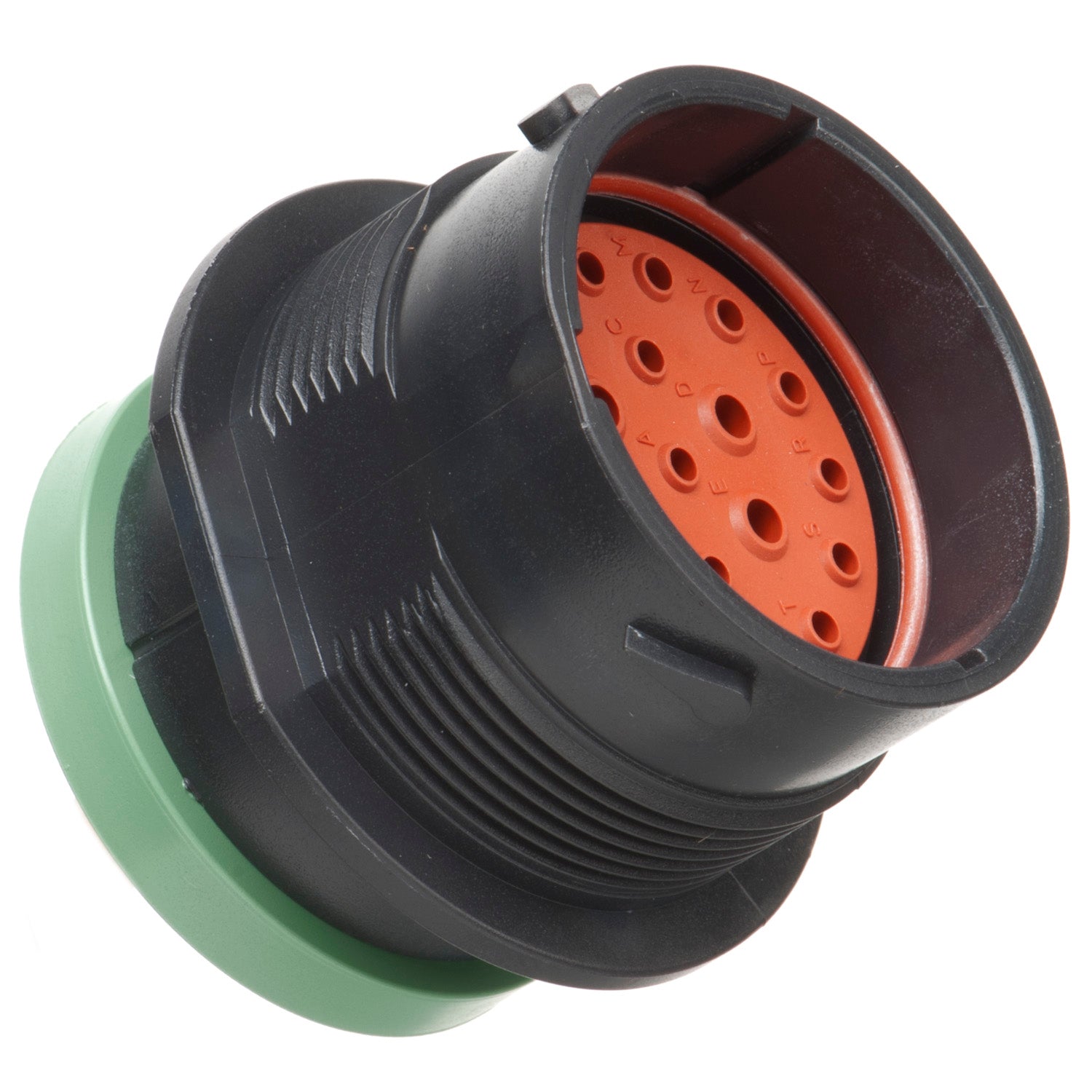

HDP24-24-21PN-L017 - HDP20 Series - 21 Pin Receptacle - 24 Shell, N Seal, Ring Adapter, Flange

Sku: HDP24-24-21PN-L017
Vendor: Deutsch
$31.42
Maximum quantity available reached.
Deutsch Logo

Deutsch HDP20 Series

Deutsch plastic shell HDP20 Series provides quick and easy coupling and cost effectiveness with heavy duty terminations for the truck, bus and off-highway industries. The HD20 is a heavy duty rated, environmentally sealed, and multi-pin connector that uses a bayonet coupling system to provide a vibration resistant locking mechanism Fabricated from tear resistant, high temperature silicone, and a rear grommet, the HD20 contacts are protected from moisture, sand, dust, lubricating oils, fuel, road salt, hydraulic fluid, grease, mud and other contaminants encountered in heavy duty operations.

The HDP20 Series is a heavy duty rated, environmentally sealed, composite shell, multi-pin connector. The composite thermoplastic shell is ideal in applications where chemicals can damage a connector housing. HDP20 features quick connect-disconnect bayonet coupling, single hole bulkhead mounting, silicone seals, and a rear insertion/rear removal contact system.

Part Number HDP24-24-21PN-L017
Series HDP 20 Series
Wire Size 10, 12,14, 16, 18, 20
Keyed No
Color  Black
Material  Plastic
Shape Circular
Connector Style Receptacle
Cavities 21
Contact size  12, 16
Shell Size 24 shell
Seal Size: N seal
Current Rating 25, 13
Holds Pin/Socket: Pin
Modification: Ring Adapter
Flange/In-line-PCB Mount Flange, In-Line
