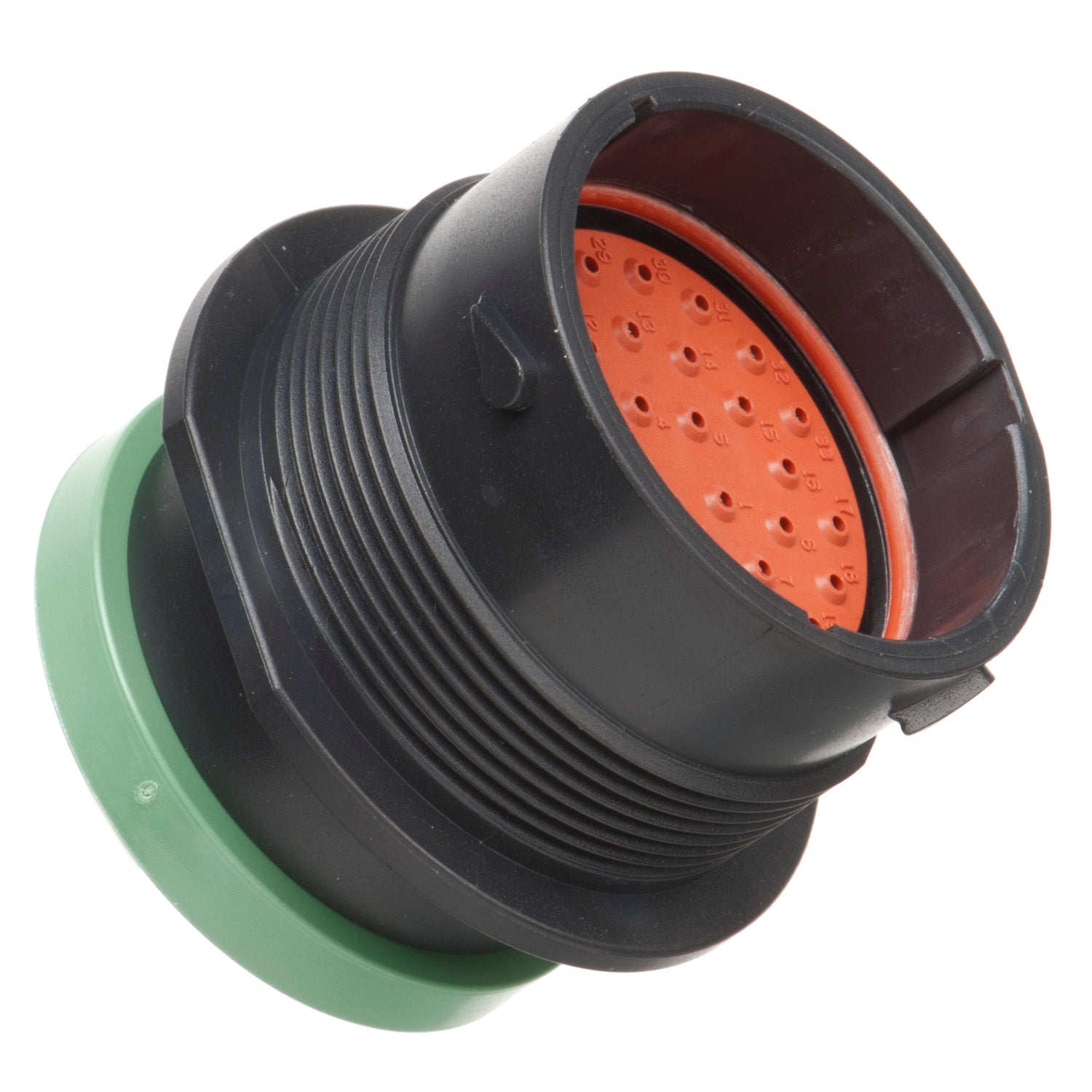

HDP24-24-33PN-L017 - HDP20 Series - 33 Pin Receptacle - 24 Shell, N Seal, Ring Adapter, Flange
Deutsch HDP20 Series
Deutsch plastic shell HDP20 Series provides quick and easy coupling and cost effectiveness with heavy duty terminations for the truck, bus and off-highway industries. The HD20 is a heavy duty rated, environmentally sealed, and multi-pin connector that uses a bayonet coupling system to provide a vibration resistant locking mechanism Fabricated from tear resistant, high temperature silicone, and a rear grommet, the HD20 contacts are protected from moisture, sand, dust, lubricating oils, fuel, road salt, hydraulic fluid, grease, mud and other contaminants encountered in heavy duty operations.
The HDP20 Series is a heavy duty rated, environmentally sealed, composite shell, multi-pin connector. The composite thermoplastic shell is ideal in applications where chemicals can damage a connector housing. HDP20 features quick connect-disconnect bayonet coupling, single hole bulkhead mounting, silicone seals, and a rear insertion/rear removal contact system.
|Wire Size||16, 18, 20, 22|
|Shell Size||24 shell|
|Seal Size||N seal|
|Flange/In-line/PCB Mount||Flange, In-line|
