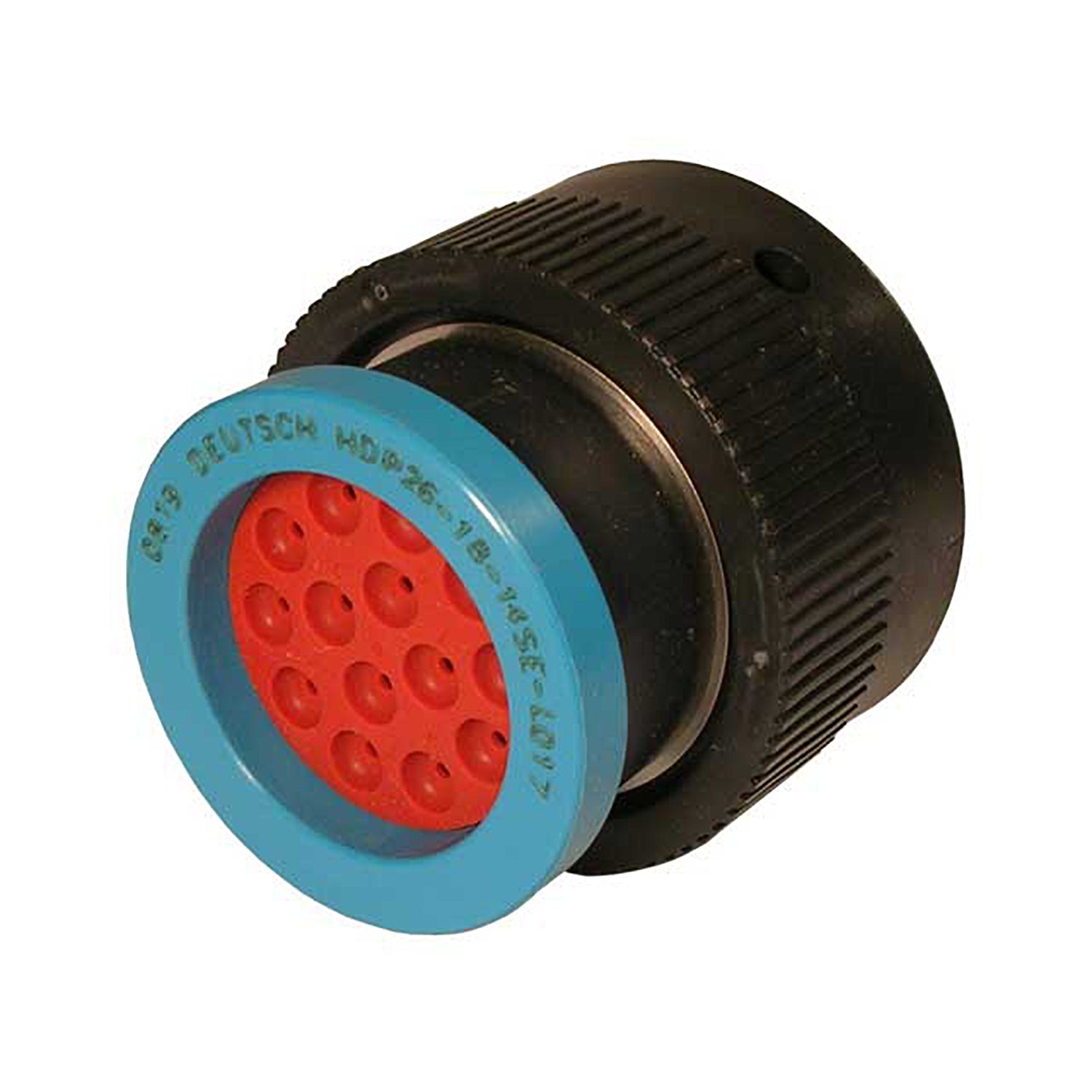

HDP26-18-14SE-L017 - HDP20 Series - 14 Socket Plug - 18 Shell, E Seal, Ring Adapter

Sku: HDP26-18-14SE-L017
Vendor: Deutsch
$26.58
Maximum quantity available reached.
Deutsch Logo

Deutsch HDP320 Series

Deutsch plastic shell HDP20 Series provides quick and easy coupling and cost effectiveness with heavy duty terminations for the truck, bus and off-highway industries. The HD20 is a heavy duty rated, environmentally sealed, and multi-pin connector that uses a bayonet coupling system to provide a vibration resistant locking mechanism Fabricated from tear resistant, high temperature silicone, and a rear grommet, the HD20 contacts are protected from moisture, sand, dust, lubricating oils, fuel, road salt, hydraulic fluid, grease, mud and other contaminants encountered in heavy duty operations.

The HDP20 Series is a heavy duty rated, environmentally sealed, composite shell, multi-pin connector. The composite thermoplastic shell is ideal in applications where chemicals can damage a connector housing. HDP20 features quick connect-disconnect bayonet coupling, single hole bulkhead mounting, silicone seals, and a rear insertion/rear removal contact system.

Part Number HDP26-18-14SE-L017
Series HDP20 Series
Wire Size 14, 16, 18, 20
Keyed No
Color Black
Material Plastic
Shape Circular
Connector Style Plug
Cavities 14
Contact Size 16
Shell Size 18 shell
Seal Size E seal
Current Rating 13
Holds Pin/Socket Socket
Modification Ring Adapter
Flange/In-line/PCB Mount In-line
